Micro Mini Small Water Francis Pelton Turgo Kaplan Hydro Hydraelectric Turbine Permanent Magnet Generator Alternator EPC
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Certification: | ISO9000 |
| Model Number: | ZDJP-060 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 180 wordking days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+4 months |
|
Detail Information |
|||

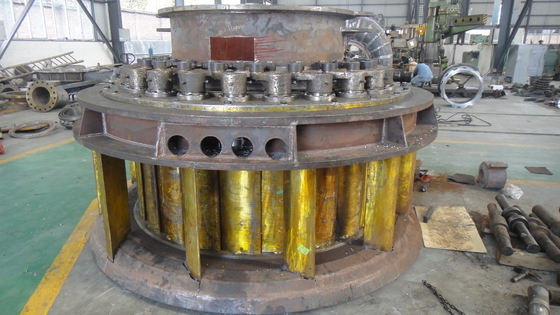

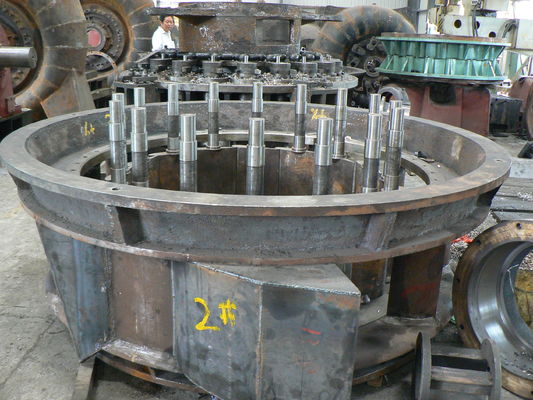

| Guide Vane: | Stainless Steel | Layout: | Vertical |
|---|---|---|---|
| Runner Blade: | Fixed | Runner Diameter: | 0.56 M |
| Water Head: | 15 M | Water Flow: | 2.97 M³/s |
| Cpacity: | 350 KW | ||
| Highlight: | 350kw Kaplan Hydro Turbine,Kaplan Hydro Turbine ISO9000,350kw Vertical Kaplan Turbine |
||
Product Description
Kaplan Hydro Turbine Generator Low Water Head 350kw
| Material | Steel plate/Copper |
| Rated Power | 50KW-20MW |
| Rated Voltage | 400V-10KV |
| Speed range | 150RPM-1000RPM |
| Frequency | 50hz/60hz |
| Excitation | brushless or static excitation system |
| Lifespan | 50 years |
| Application | Electricity Generation |
| Turbine Valve | Butterfly Valve, Gate Valve, Ball Valve |
| Layout pattern | Horizontal or Vertical |
| Generator Insulation | F/F |
| turbine Efficiency | 92%-96% |
| Generator Efficiency | 90%-93% |
Hydro turbine generator is droved directly or indirectly by hydro turbine. The rotating speed is less than 1500r/min, with horizontal and vertical arrangement. Excitation mode with brushless and static silicon type. Components including stator, rotor, base frame, bearing, excitation motor or collecting ring. The outlet voltage from 400V to 13.8KV, and frequency could be 50Hz or 60Hz, output from 50Kw to 50Mw. Our generator are high efficiency, reliable, manufacture and tests all follow related IEC standards.
