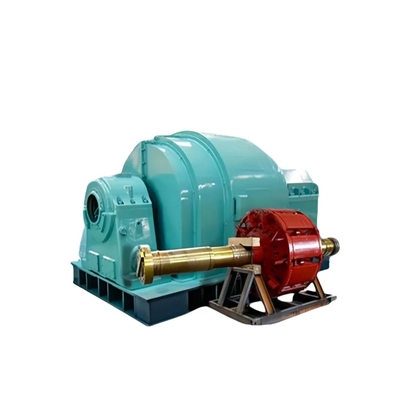

100kW Francis Hydro Turbine Generator 400V-6300V 90% Efficiency
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 50000 |
|
Detail Information |
|||
| Model NO.: | ZDJJP585 | Output Type: | DC |
|---|---|---|---|
| Bearing Support: | Hanging Type | Speed: | Low Speed |
| Bearing Number: | 2 | Runner Material: | Stainless Steel |
| Efficiency: | Up To 90% | Insulation Class: | F/F |
| Capacity: | 50kw-20MW | Generator Type: | Brushless |
| Voltage: | 400V-6300V | Water Head: | 10m - 700m |
| Frequency: | 50Hz / 60Hz | Runner Diameter: | 0.35m - 4m |
| Lifespan: | 50 Years | ||
| Highlight: | 100kW Francis hydro turbine generator,Francis hydro turbine 90% efficiency,hydro turbine generator 400V-6300V |
||
Product Description
100kw Free Energy Generator for Hydro Power Plant Impact Units
Product Description
100kw micro/small/mini power generator turbine Kaplan pelton turgo Francis water turbine
Detailed Specifications
| Water head | 10m - 700m |
|---|---|
| Power range | 50kW - 20MW |
| Frequency | 50Hz / 60Hz |
| Generator voltage | 400V, 800V, 6300V, 10500V |
| Layout mode | Horizontal or vertical |
| Material | Stainless steel ZG0Cr13Ni4Mo |
| Excitation | Brushless or static excitation system |
| Lifespan | 50 years |
| Runner diameter | 0.35m - 4m |
| Generator insulation | F/F |
The Francis turbine features a compact structure and high efficiency, capable of adapting to a wide range of water heads. It is one of the widely used turbine types in various countries around the world. When water flows through the runner of this turbine, it enters radially and exits axially, so it is also known as a radial-axial turbine.
It is suitable for a water head range from 20 meters to 700 meters. With a simple structure, stable operation, and high efficiency, it is generally used within the medium head range (50 meters to 400 meters). The output of a single unit ranges from tens of kilowatts to hundreds of thousands of kilowatts. Currently, the maximum output of this type of turbine has exceeded 700,000 kilowatts, making it one of the most widely used turbines. In China, a 700 megawatt unit has been put into operation at the Three Gorges, and the Xiangjiaba Dam employs 800 megawatt Francis turbines.
Main Structure and Operation
Regarding the main structure of a hydraulic turbine and how it operates.
Our Advantages
Our company boasts a rich history spanning over two decades, with a steadfast focus on customization services, dedicated to fulfilling our clients' unique needs to the fullest extent. We consistently prioritize our clients' specific requirements, ensuring that every detail in the design and manufacturing process strictly adheres to their expectations.
- Outstanding safety features for a reassuring user experience
- Exceptional cooling performance for efficient heat exchange
- High efficiency and energy conservation to reduce operational costs
- Minimal system failure points due to advanced design and manufacturing
- Broad applicability across mixed-flow, axial-flow, and other turbine types
Product Applications
Related Products
They are used in small to medium-sized hydropower stations or hydroelectric power plants. Our strength lies in our rated outputs ranging from 50 kW to 20 MW.
Our Hydropower Services
- Exploration and design of hydropower plants
- Design and manufacturing of turbine generator sets
- EPC (Engineering, Procurement, and Construction) for electromechanical equipment
- Pre-sales services for hydropower plants
- Training services for hydropower plants
- Technical consultancy for hydropower plant operations
- Installation and commissioning guidance
- Maintenance services for hydropower plants
Packaging & Shipping
Frequently Asked Questions
Q: You are a trading company or a manufacture?
A: We are a hydro turbine generator manufacture with over 15 years of experiences. Our factory is in the Sichuan you will take 2 hours driving after you reach Shuangliu Airport, pay a visit to our factory you will know more about us.
Q: What Kind of water turbine should I choose?
A: We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution.
Q: Can you do the EPC for the hydro power plant?
A: Yes, We can design, producing and install the equipment, we will dispatch technologist and workers to install the equipment.
Q: What the packing of the equipment?
A: We will use wooden box to protect product.
Q: When my turbine shut down, who can help me solve the problem?
A: You are free to call me day or night at my cellphone number. I am sure our engineer able to fix the problem either by changing spare parts or remove something.
