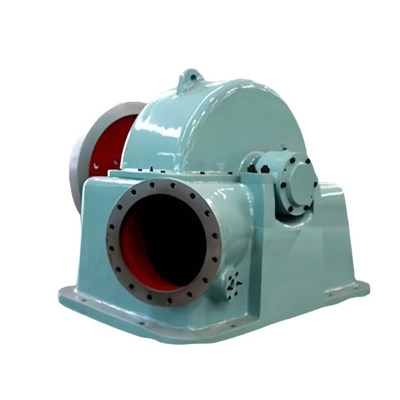

100kw Francis Hydro Turbine Generator 400V-6300V 90% Efficiency
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 50000 |
|
Detail Information |
|||
| Model NO.: | ZDJJP581 | Output Type: | DC |
|---|---|---|---|
| Type: | Horizontal Hydro Generator | Bearing Support: | Hanging Type |
| Speed: | Low Speed | Bearing Number: | 2 |
| Runner Material: | Stainless Steel | Efficiency: | Up To 90% |
| Insulation Class: | F/F | Capacity: | 50kw-20MW |
| Generator Type: | Brushless | Voltage: | 400V-6300V |
| Water Head: | 10m - 700m | Frequency: | 50Hz / 60Hz |
| Runner Diameter: | 0.35m - 4m | ||
| Highlight: | 100kw Francis hydro turbine generator,Francis hydro turbine 90% efficiency,hydro turbine generator 400V-6300V |
||
Product Description
100kw micro/small/mini power generator turbine Kaplan pelton turgo Francis water turbine
| 01 Application scenario | 02 Application scenario |
|---|---|
| 03 Application scenario | 04 Application scenario |
| Water head | 10m - 700m |
|---|---|
| Power range | 50kW - 20MW |
| Frequency | 50Hz / 60Hz |
| Generator voltage | 400V, 800V, 6300V, 10500V |
| Layout mode | Horizontal or vertical |
| Material | Stainless steel ZG0Cr13Ni4Mo |
| Excitation | Brushless or static excitation system |
| Lifespan | 50 years |
| Runner diameter | 0.35m - 4m |
| Generator insulation | F/F |
The Francis turbine features a compact structure and high efficiency, capable of adapting to a wide range of water heads. It is one of the widely used turbine types in various countries around the world. When water flows through the runner of this turbine, it enters radially and exits axially, so it is also known as a radial-axial turbine.
It is suitable for a water head range from 20 meters to 700 meters. With a simple structure, stable operation, and high efficiency, it is generally used within the medium head range (50 meters to 400 meters). The output of a single unit ranges from tens of kilowatts to hundreds of thousands of kilowatts. Currently, the maximum output of this type of turbine has exceeded 700,000 kilowatts, making it one of the most widely used turbines. In China, a 700 megawatt unit has been put into operation at the Three Gorges, and the Xiangjiaba Dam employs 800 megawatt Francis turbines.
Our company boasts a rich history spanning over two decades, with a steadfast focus on customization services, dedicated to fulfilling our clients' unique needs to the fullest extent. We consistently prioritize our clients' specific requirements, ensuring that every detail in the design and manufacturing process strictly adheres to their expectations. It is this dedication and commitment that has enabled our hydraulic turbines to achieve exceptionally high quality standards.
These hydraulic turbines distinguish themselves with their outstanding safety, providing clients with a reassuring user experience. Additionally, their exceptional cooling performance ensures efficient heat exchange, allowing the equipment to operate stably under various conditions. In terms of energy utilization, our turbines exhibit high efficiency and energy conservation, significantly reducing energy consumption and lowering operational costs.
Furthermore, due to our adoption of advanced design concepts and manufacturing techniques, the system failure points of our turbines are minimal, thereby greatly enhancing the reliability and stability of the equipment.
Even more impressive is the broad applicability of our turbines. Whether they are of the mixed-flow, axial-flow, or other types, they can adapt to different operating conditions and client requirements. This versatility has allowed our products to achieve remarkable achievements in various fields such as hydropower and pumped storage.
They are used in small to medium-sized hydropower stations or hydroelectric power plants.
Our strength lies in our rated outputs ranging from 50 kW to 20 MW.
Below are our businesses related to hydropower plants:
- Exploration and design of hydropower plants
- Design and manufacturing of turbine generator sets
- EPC (Engineering, Procurement, and Construction) for electromechanical equipment (including water conveyance systems)
- Pre-sales services for hydropower plants
- Training services for hydropower plants
- Technical consultancy for hydropower plant operations
- Installation and commissioning guidance
- Maintenance services for hydropower plants
A: We are a hydro turbine generator manufacture with over 15 years of experiences, Our factory is in the Sichuan you will take 2 hours driving after you reach Shuangliu Airport, pay a visit to our factory you will know more about us.
A: We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution.
A: Yes, We can design, producing and install the equipment, we will dispatch technologist and workers to install the equipment.
A: We will use wooden box to protect product.
A: You are free to call me day or night at my cellphone number. I am sure our engineer able to fix the problem either by changing spare parts or remove something.
