LG Digital Water Turbine Governor 220V AC DC Smart Control
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Model Number: | GLYWT-003 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 60 wordking days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+ 2 months |
|
Detail Information |
|||
| Work Pattern: | Digital | PLC: | Programmable |
|---|---|---|---|
| CPU: | LG | Frequency: | 50hz |
| AC Power: | 220V | DC Power: | 220V |
| High Light: | LG Digital Water Turbine Governor,Water Turbine Governor 220V,220V governor turbine speed control |
||
Product Description

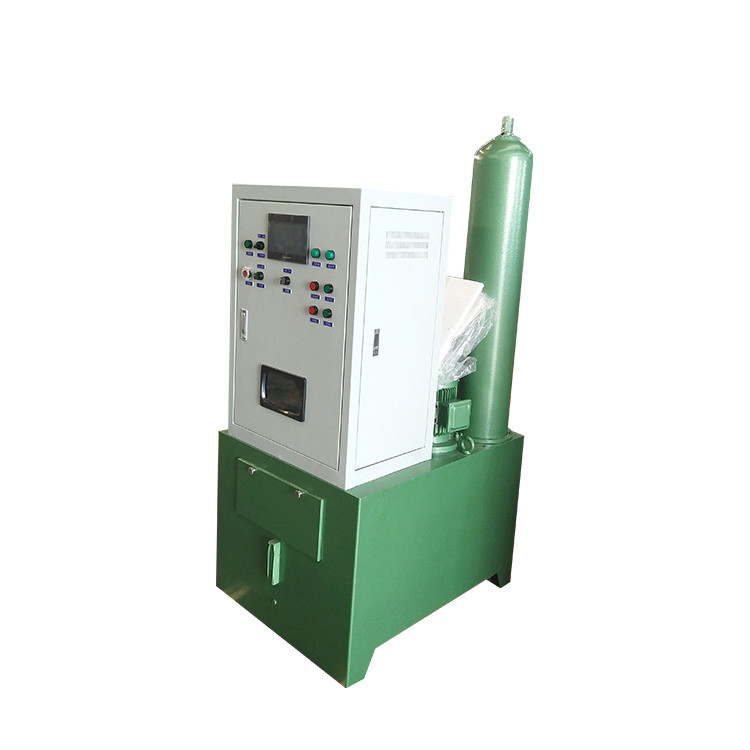

digital hydraulic speed governor for hydro turbine generator
Based on Automation products, Smart Control* Turbine Speed Governors can regulate any type of turbine with any power output. They integrate seamlessly into the Smart Control Distributed Control System. Only one engineering tool is therefore needed, helping simplify software management, licensing, upgrades and training.
They feature compact and modular plug-and-play hardware for easy installation and maintenance. Intuitive software, with advanced functions derived from more than 20 years of Hongya power’s hydro experience, enhances turbine processes, helping refine plant operation and reduce machine wear.
The Smart Control* Governor’s features for specific turbine types include blade discretizer for Bulb and Kaplan turbines, individual wicket gate control for Pump turbines and a jet dispatcher for Pelton turbines. With simplex or redundant configurations and a rugged design, SmartControl* Governor can operate in harsh conditions with electromagnetic interference, vibration, humidity and oil.
specification
| Place of Origin: | Sichuan, China |
| Brand Name: | Customized |
| Warranty: | 1 year |
| Application: | Hydropower Plant |
| Certificate: | ISO9001 |
working parameters
- AC power AC110V±15% or AC220V±15% 50Hz or 60Hz
- DC power DC110V±15% or DC220V±15%
- Genset frequency signal AC0.25-200V (supplied by Genset PT) or gear signal
- Network frequency signal AC0.25-200V (supplied by network PT)
- Active power -10V- +10V or 0(4)-20mA
PID parameters
- Proportional gain (Kp) 0-20(times) (resolution 0.1)
- Integral gain (Ki) 0-10(1/s) (resolution 0.01)
- Differential gain (Kd) 0-5.0(s) (resolution 0.1)
- Permanent speed droop (bp) 0-10(%) (resolution 0.1%)
- Frequency setting (Fs) 45-55(Hz) (resolution 0.01Hz)
- Gate opening setting (Gs) 0-100(%) (resolution 0.1%)
- Output setting (Ps) 0-120(%) (resolution 0.1%)
- Electric limit opening setting (Le) 0-100(%) (resolution 0.1%)
- Artificial frequency dead-band (Fa) 0-±0.5(Hz) (resolution 0.01Hz)
