LG Water Turbine Control System Governor ISO9001 Programmable
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Certification: | ISO |
| Model Number: | GLYWT-51 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 60 wordking days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+ 2 months |
|
Detail Information |
|||
| Work Pattern: | Digital | PLC: | Programmable |
|---|---|---|---|
| CPU: | LG | Frequency: | 50 Hz |
| AC Power: | 220 V | DC Power: | 110V |
| Application: | Water Tubine | Weight: | 710 Kg |
| Highlight: | LG Water Turbine Control System,Water Turbine Control System ISO9001,ISO9001 Water Turbine Governor |
||
Product Description

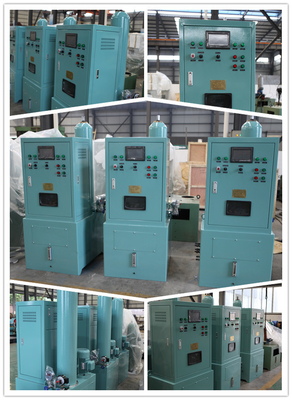

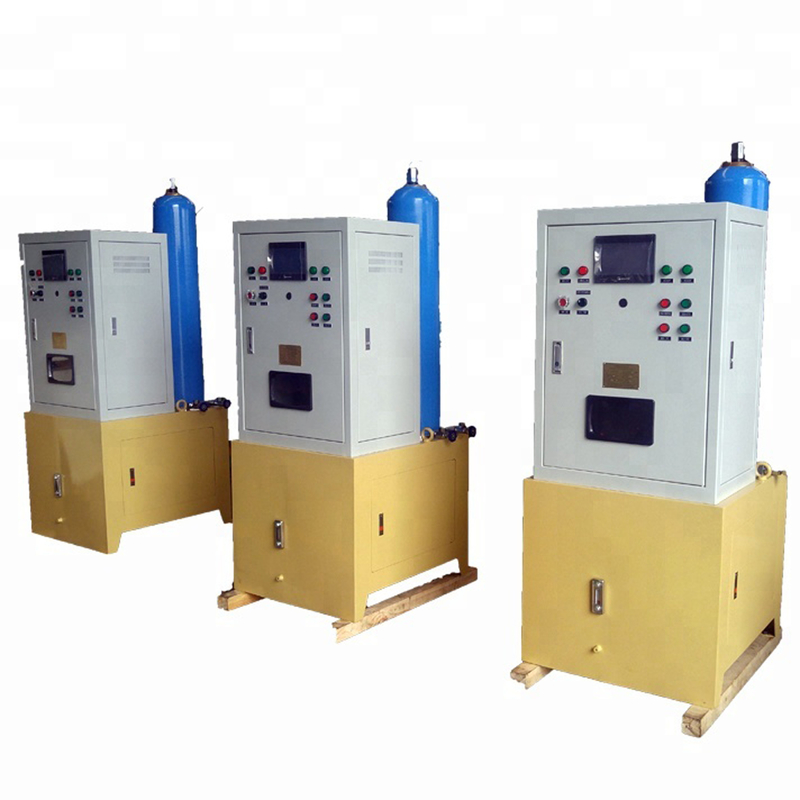

Water Turbine Control System Speed Governor For Hydropower Plant
- Proportional gain (Kp) 0-20(times) (resolution 0.1)
- Integral gain (Ki) 0-10(1/s) (resolution 0.01)
- Differential gain (Kd) 0-5.0(s) (resolution 0.1)
- Permanent speed droop (bp) 0-10(%) (resolution 0.1%)
- Frequency setting (Fs) 45-55(Hz) (resolution 0.01Hz)
- Gate opening setting (Gs) 0-100(%) (resolution 0.1%)
- Output setting (Ps) 0-120(%) (resolution 0.1%)
- Electric limit opening setting (Le) 0-100(%) (resolution 0.1%)
- Artificial frequency dead-band (Fa) 0-±0.5(Hz) (resolution 0.01Hz
| Place of Origin: | Sichuan, China |
| Brand Name: | Customized |
| Warranty: | 1 year |
| Application: | Hydropower Plant |
| Certificate: | ISO9001 |
| Lifetime | 35 years |
