Small Flow Turbine Pelton Wheel Runner 800KW Vertical Horizontal

Small Flow Turbine Pelton Wheel Runner 800KW Vertical Horizontal

Product Details:

Place of Origin: China
Brand Name: Wawushan

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: plywood
Delivery Time: 120 wordking days
Payment Terms: T/T
Supply Ability: 1+unit+4 months
Get Best Price Contact Now

Detail Information

Runner Material: Stainless Steel Dimension: 1.1 M
Machine Type: Pelton Blade No: 18 PCS
Capacity: 800KW Weight: 560KG
High Light:

Small Flow Turbine Pelton Wheel Runner

,

Vertical Horizontal Pelton Wheel Runner

,

800KW pelton turbine runner

Product Description

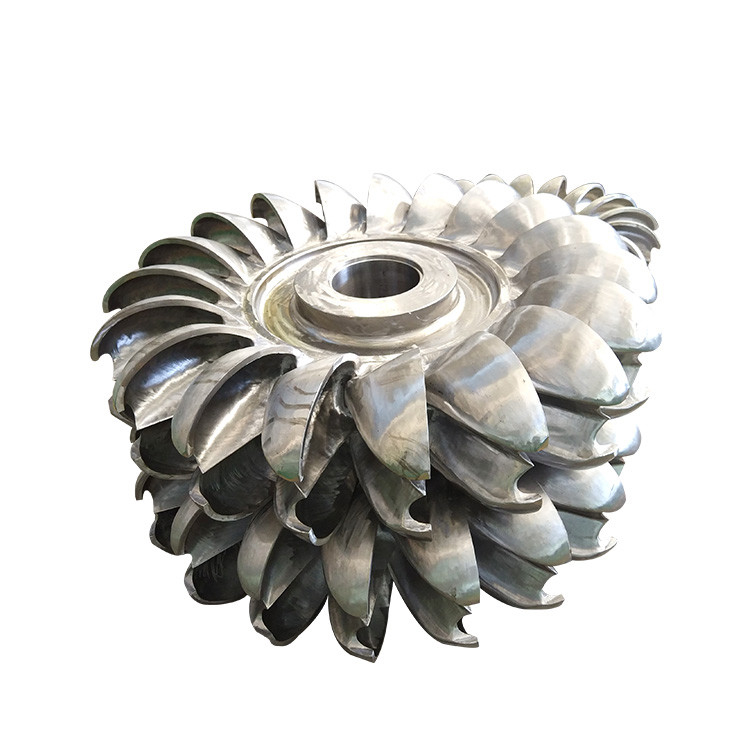

stainless steel Pelton wheel runner



Pelton turbine suit to water head 100 to 1000 meters and with the certain small flow. It could vertical and horizontal
arrangement, nozzle numbers from one to six. Pelton turbine with features of wide flow high-efficiency region. It could start turbine with 10% of the rated flow. Pelton turbine with one or two nozzles usually adopt horizontal arrangement, but multiple nozzle Pelton turbine adopts vertical arrangement. Pelton turbine units are wildly used in mountain areas all over the world, and well known by its simple structure, less investment, high efficiency, and reliable long service life.

Polishing based on CMM measurement report

Experienced employees polishing according to customer specific procedures

Several dimensional and quality controls through process

Compliance with all environmental standards thanks to the newest filtering technologies

Completed products are checked using four non-destructive testing methods (NDT).

Visual Testing (VT)

Liquid Penetrant Testing (PT)

Magnetic Particle Testing (MT)

Ultrasonic Testing (UT)

The actual unbalance is displayed in one or two planes by graphical and numerical output. There is also a deviation from the allowed unbalance displayed and a suggestion for the most convenient weight correction.



specification



runner material  stainless steel
runner type  Pelton
diameter 1.1m
capacity 800kw
blade No 18PCS
weight  560KG

The package of Project


a. Verification of documents submitted
b. Audition of documents by the authority
c. Signing the contract
2. Engineering Design
a. Selection of a complete set of equipment according to the request or Runh Power's recommandation or the request from the commissioner.
b. Design of overall layout and all the sub-systems within the parameter of power plant.
c. Selection of personnel participating in the project
d. Submission of technical solution to the commissioner for review and approval.
3.Equipment Purchase& Transportation
a.Turbo Generator Set and its auxiliary systems (boiler, condensing water collector, deaerator, high pressure and low pressure superheaters, power distribution system. etc )
b. All the construction material, tools, spare parts and other necessities of the project
4. Civil Construction
a. All the civil construction work within the parameter of power plant
5. Operation & Maintenance
a. Operation of power plant (technical counseling)
b.Regular maintenance and inspection
c.Technical Training Program for Power Plant Personnel
d.General Overhaul
6. Installation & Testing
a.Installation & testing for all systems & equipment provided by Runh Power
b.Installation, testing & trail run of all systems of a power plant
c.Installation, testing & trail run of entire power plant
7. Supply of Spare Parts
a. Long-term supply of spare parts and other consumibles.
