50hz Turbine Speed Governor 220V Hydro Turbine Governor ISO9001
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Model Number: | GLYWT-004 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 60 wordking days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+ 2 months |
|
Detail Information |
|||
| Work Pattern: | Digital | PLC: | Programmable |
|---|---|---|---|
| CPU: | LG | Frequency: | 50hz |
| AC Power: | 220V | DC Power: | 220V |
| Highlight: | 50hz Turbine Speed Governor,Turbine Speed Governor 220V,Hydro Turbine Governor ISO9001 |
||
Product Description

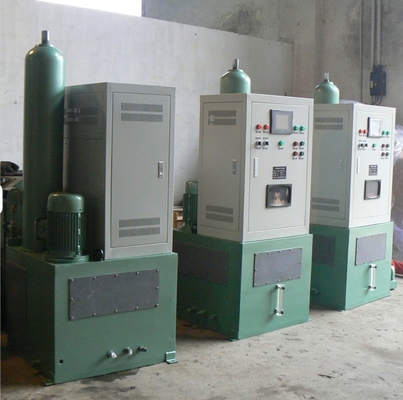

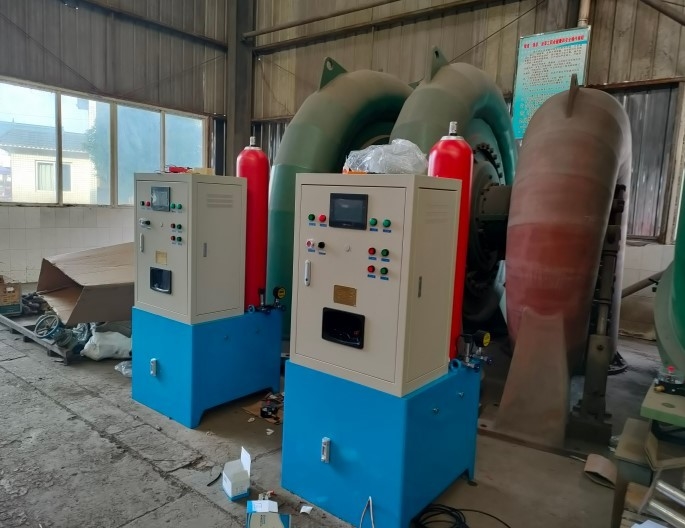

hydraulic generator engine governor on hydro turbine generator
Based on Automation products, Smart Control* Turbine Speed Governors can regulate any type of turbine with any power output. They integrate seamlessly into the Smart Control Distributed Control System. Only one engineering tool is therefore needed, helping simplify software management, licensing, upgrades and training.
They feature compact and modular plug-and-play hardware for easy installation and maintenance. Intuitive software, with advanced functions derived from more than 20 years of Hongya power’s hydro experience, enhances turbine processes, helping refine plant operation and reduce machine wear.
The Smart Control* Governor’s features for specific turbine types include blade discretizer for Bulb and Kaplan turbines, individual wicket gate control for Pump turbines and a jet dispatcher for Pelton turbines. With simplex or redundant configurations and a rugged design, SmartControl* Governor can operate in harsh conditions with electromagnetic interference, vibration, humidity and oil.
specification
| Place of Origin: | Sichuan, China |
| Brand Name: | Customized |
| Warranty: | 1 year |
| Application: | Hydropower Plant |
| Certificate: | ISO9001 |
working parameters
- AC power AC110V±15% or AC220V±15% 50Hz or 60Hz
- DC power DC110V±15% or DC220V±15%
- Genset frequency signal AC0.25-200V (supplied by Genset PT) or gear signal
- Network frequency signal AC0.25-200V (supplied by network PT)
- Active power -10V- +10V or 0(4)-20mA
PID parameters
- Proportional gain (Kp) 0-20(times) (resolution 0.1)
- Integral gain (Ki) 0-10(1/s) (resolution 0.01)
- Differential gain (Kd) 0-5.0(s) (resolution 0.1)
- Permanent speed droop (bp) 0-10(%) (resolution 0.1%)
- Frequency setting (Fs) 45-55(Hz) (resolution 0.01Hz)
- Gate opening setting (Gs) 0-100(%) (resolution 0.1%)
- Output setting (Ps) 0-120(%) (resolution 0.1%)
- Electric limit opening setting (Le) 0-100(%) (resolution 0.1%)
- Artificial frequency dead-band (Fa) 0-±0.5(Hz) (resolution 0.01Hz
Governor static characteristics
- Linearity: near line
- Speed dead-band(measure from main servomotor):
ix≤0.1%( small)
ix≤0.06%(medium)
Governor dynamic characteristics
When governor runs stable under standard manual mode.
- It should run stably under any kinds of operating status and regulating mode.
- Servomotor dead-time Tq≤0.2S
nc. or Dec. time of gate opening
1.Push Inc. Or Dec. pushbutton and hold it, the time of changing 100% gate opening can be adjusted from 2.5 to 60S, it will change gate
opening 0.1% per push.
Change over
- The variant of gate opening will be less than ±1% of Max. Stroke when change over between AC and DC power.
- The variant of gate opening will be less than ±1%of Max. Stroke when change over between Auto and Manual running mode.
