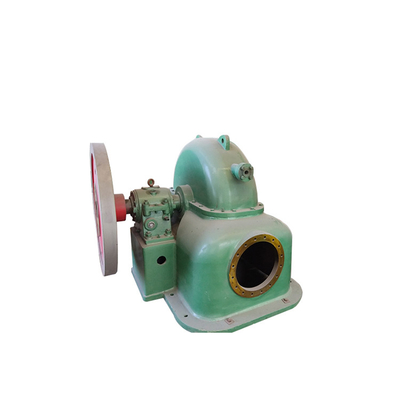

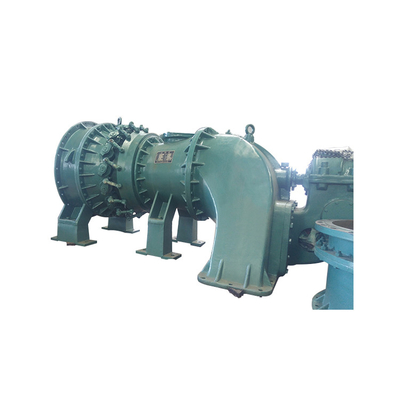

5Mw Water Horizontal Francis Turbine 500kw With Stainless Steel Runner
Product Details:
| Place of Origin: | Sichuan |
| Brand Name: | Wawushan |
| Certification: | ISO9000 |
| Model Number: | HLA-062 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 150 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1 set 4-5 month |
|
Detail Information |
|||
| Water Head: | 80 M | Water Flow: | 0.8 M³/s |
|---|---|---|---|
| Runner Material: | Stainless Steel | Efficiency: | 94.8 % |
| Capacity: | 500kw | Frequency: | 50HZ |
| Power Factor: | 0.80 | Rated Efficiency: | 94.2 % |
| High Light: | 5Mw Water Horizontal Francis Turbine,Horizontal Francis Turbine 500kw,Horizontal 500 kw hydro turbine |
||
Product Description
5 Mw Francis Hydro Turbine Francis Turbina Generator 500kw Water Francis
Francis Turbine, also called mixed flow turbine and variable pressure turbine, is widely used in hydropower plants with low, middle and high water head ranging from 25m onwards to 550m commonly 30 to 300m. It has advantages such as: working stable, structure compact. Most import of all, the Francis water turbine we made would work with high efficiency of about 92% to 94.5%.
| Francis Turbine Water Head | 25m - 550m |
| Francis Main Components | Spiral Casing, Stay vanes, Guide vanes, Runner, Draft Tube |
| Runner Material | Stainless Steel ZG0Cr13Ni4Mo |
| Layout pattern | Horizontal or Vertical |
| Generator Insulation | F/F |
| Water Turbine Efficiency | 92% - 94% |
| Generator Efficiency | 93% - 96% |
| Generator Voltage | 400V, 800V, 6300V, 10500V |
| Turbine Valve | Butterfly Valve, Gate Valve, Ball Valve |
| Place of Origin | Meishan, China |
| Brand | Woonergy |
| Port of Shipment | Shanghai, China |
| No. | ||
| 1 | Water head | 80 m |
| 2 | Water flow | 0.8 m³/s |
| 3 | Capapcity | 500kw |
| 4 | Efficiency | 94.8% |
| 5 | Frequency | 50Hz |
| 6 | Power factor | 0.80 |
| 7 | Rated efficiency | 94.5% |
| 8 | Excitation mode | Brushless |
| 9 | Color | Customized |
The original Francis turbine has been modified from time to time to improve its efficienty, and today, an efficienty of more than 93% has been reached. Francis turbine is a versatile one and can work over a very wide range of heads from 25m onwards to 550m. This is a reactin type of turbine where water is admitted at high pressure into the runner, and pressure energy is converted into mechanical energy, because of the reaction of water when travling over the curved vanes. As the pressure inside the turbine varies, Francis turbine is also called a variable pressure turbine.
