Adjustable Hydropower Plant Turbine 470kw 0.8 Power Factor
Product Details:
| Place of Origin: | Sichuan |
| Brand Name: | Wawushan |
| Certification: | ISO9000 |
| Model Number: | HLA-070 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 150 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1 set 4-5 month |
|
Detail Information |
|||
| Water Head: | 30 M | Water Flow: | 2.0 M³/s |
|---|---|---|---|
| Runner Material: | Stainless Steel | Efficiency: | 94.8 % |
| Capacity: | 470 Kw | Frequency: | 50HZ/60Hz |
| Power Factor: | 0.80 | Rated Efficiency: | 94.8 % |
| Highlight: | Adjustable Hydropower Plant Turbine,Hydropower Plant Turbine 470kw,470kw hydroelectric power plant turbine |
||
Product Description
Cities Skylines Hydro Power Plant Hydro Power Plant Generate Electricity 470kw

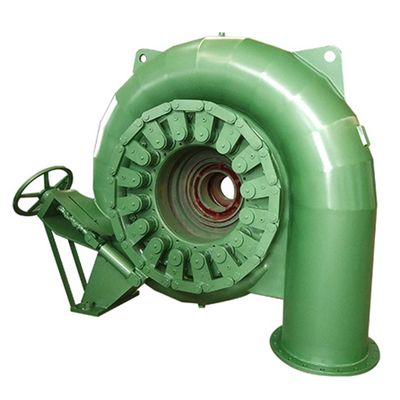

Turbine distributor
It consists of guide vane, guide vane lever, shaft sleeve, front cover, back cover, etc. It can form or change number of swirls of water flow to adjust turbine discharge according to variation of load. It is also used to normal and emergency shut down. The guide vane shaft sleeve has O ring for sealing. The control ring is welded by steel plate as a whole. Circular guiding rail and wiring plate with lubricating performance are located on the bottom surface of the control ring. The control ring has enough strength and rigidity, won’t occur excessive bending due to unbalance stress of servomotor. Counterweight is located on counterweight support. In case the servomotor is in fault, counterweight will close the guide vane by action of gravity.
| Place of Origin: | Sichuan, China |
| Brand Name: | Customized |
| Warranty: | 1 year |
| Application: | Hydropower Plant |
| Certificate: | ISO9001 |
| Lifetime | 35 years |
Runner
Runner is the heart of turbine to change the water energy to mechanical energy. It is casted and welded as a whole, crown, band and blade is made of stainless steel ZG06Cr13Ni4Mo which has perfect performance of anti-cavitation, anti- corrosion and weldable. The runner is subject to static balance testing after machining. Holes on runner crown can reduce the pressure applied on runner by the water.

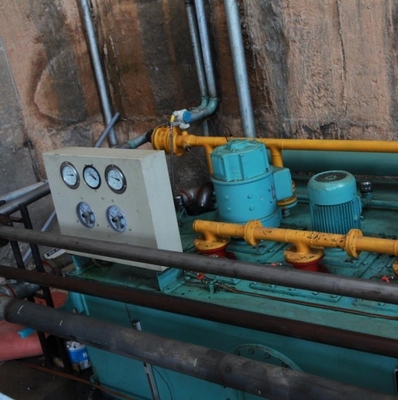

Pressure gauge and vacuum gauge
Pressure gauge is located on spiral case for observing the pressure in spiral case.
Vacuum gauge is located on draft tube elbow for observing the degree of vacuum. Valves shall be equipped on pressure gauge and vacuum gauge piping for close and open the piping.
