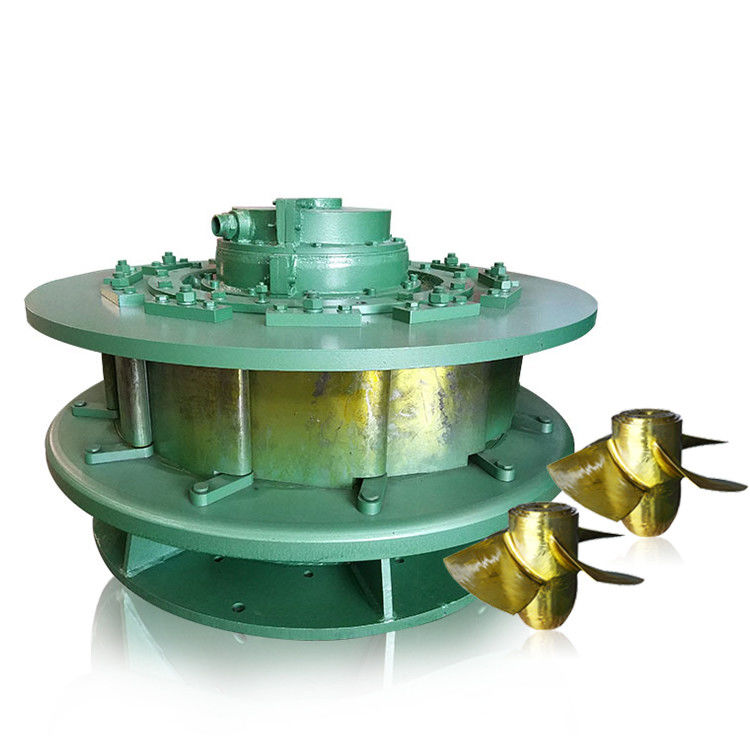

Mini HPP Kaplan Hydro Turbine For Hydro Power Plant 300kw Kaplan Turbine Generator
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Certification: | ISO |
| Model Number: | ZDJP-053 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 180 wordking days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+4 months |
|
Detail Information |
|||
| Guide Vane: | Stainless Steel | Layout: | Vertical |
|---|---|---|---|
| Runner Blade: | Fixed | Runner Diameter: | 0.9 M |
| Water Head: | 25 M | Water Flow: | 1.52 M³/s |
| Cpacity: | 300 KW | ||
| High Light: | Mini HPP Kaplan Hydro Turbine,300kw kaplan turbine generator,300kw kaplan turbine micro hydro |
||
Product Description
Kaplan Turbine Working Principle For Hydro Power Plant Mini Hpp 300kw
Product Features
1. Suitable for the development of low water head larger flow of water resources;
2. Appliceable to large and small head change load changes of power plant;
3. For the low head,head and power changed greatly power station,can stably under various working conditions;
4. This machine is a vertical shaft device,has the advantages of simple structure,convenient repair,equipment,low price,easy to realize the direct drive etc.
5. The Kaplan blade is generally operated by the oil pressure relay installed in the body of the runner, which can rotate according to the change of head and load, so as to maintain the optimal coordination between the Angle of the guide vane and the Angle of the blade, thus improving the average efficiency. Kaplan turbine The highest efficiency of this kind of turbine has exceeded 94%. However, this kind of kaplan turbine needs a mechanism to operate the rotation of the blade, so the structure is more complex and the cost is higher.
Product parameters
| Model | Turbine Parameters | Generator Parameters | ||||||||
| Design head(m) | Under the design head | Design speed (r/min) | Model | power (kw) |
Rated voltage (v) |
Rated electric current (A) |
Rated speed (r/min) |
The run way speed (r/min) |
||
| Flow rate (m3/s) | The output(kw) | |||||||||
| ZD760- LM/LMY-100 = 4-5° | 2.1 | 2.61 | 47.1 | 261 | SF40-8/493 | 40 | 400 | 72.2 | 750 | 1500 |
| 2.5 | 2.49 | 61.2 | 285 | SF55-8/493 | 55 | 400 | 99.2 | 750 | 1500 | |
| 2.7 | 2.96 | 68.5 | 300 | SF55-6/493 | 55 | 400 | 99 | 1000 | 2000 | |
| 3.3 | 3.27 | 92.5 | 327 | SF75-8/590 | 75 | 400 | 136 | 750 | 1500 | |
| 4 | 3.6 | 123 | 360 | SF1 00-8/590 | 100 | 400 | 181 | 750 | 1500 | |
| 4.4 | 3.78 | 143 | 375 | SF1 25-16/990 | 125 | 400 | 226 | 750 | 750 | |
| 5.2 | 3.95 | 177 | 375 | SF1 60-16/990 | 160 | 400 | 289 | 375 | 750 | |
| 6 | 4.34 | 224 | 429 | SF200-14/990 | 200 | 400 | 361 | 428.6 | 856 | |
| 7 | 4.51 | 270 | 429 | SF250-14/990 | 250 | 400 | 451 | 428.6 | 856 | |
| ZD760- LM/LMY-100 = 4-10° | 2 | 2.87 | 48 | 240 | SF4 0-8/49 3 | 40 | 400 | 72.2 | 750 | 1500 |
| 2.5 | 3.21 | 67 | 269 | SF55-8/493 | 55 | 400 | 99 | 750 | 1500 | |
| 3.1 | 5.58 | 92.5 | 300 | SF75-8/590 | 75 | 400 | 13.5 | 750 | 1650 | |
| 3.9 | 3.71 | 121 | 300 | SF1 00-8/590 | 100 | 400 | 181 | 750 | 1650 | |
| 4.2 | 4.16 | 141.9 | 348 | SF1 25-16/990 | 125 | 400 | 226 | 375 | 750 | |
| 4.8 | 4.58 | 183 | 375 | SF160-16/990 | 160 | 400 | 289 | 375 | 750 | |
| 5.7 | 4.75 | 220 | 375 | SF200-16/990 | 200 | 400 | 361 | 375 | 750 | |
| 6.5 | 5.2 | 280 | 429 | SF250-14/990 | 250 | 400 | 451 | 428.6 | 856 |
|
