500Kw Water Turbine Parts Low Head Kaplan Synchronous Turbine Generator
500Kw Water Turbine Parts
,Kaplan Synchronous Turbine Generator
,Synchronous hydro turbine components

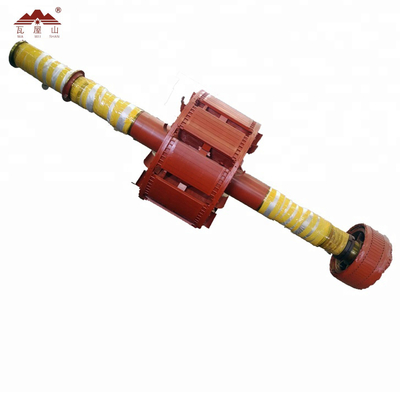

Synchronous Generator 500 kw Low Head Kaplan Turbine Hydro Electrical Generator

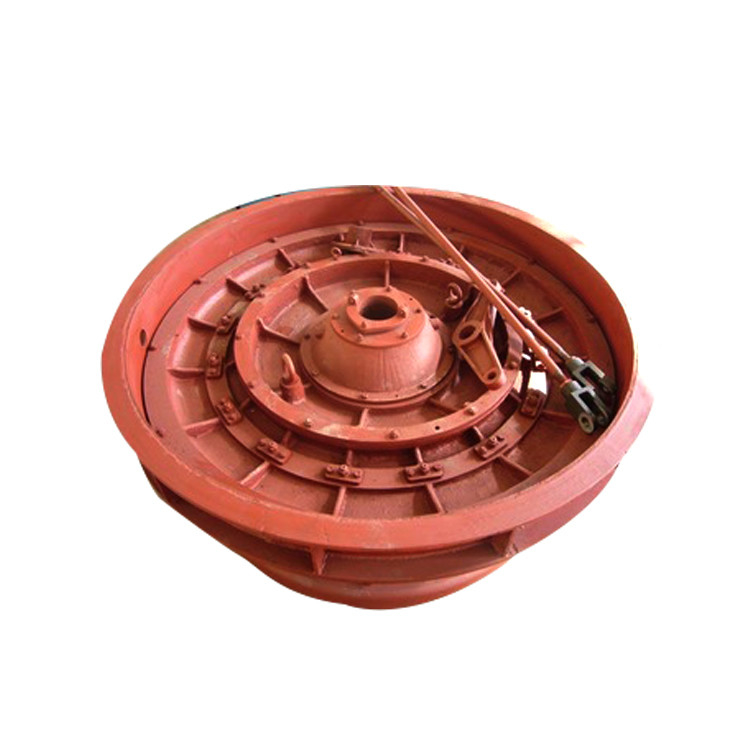

Kaplan turbine is a kind of turbine suit to low water head 3-45 meters, and with certain big flow, normally divided into fixed blades and adjustable blades turbine. Main components including: runner, draft cone, water chamber, guide vane, bearing, and main shaft. The spiral case could be steel or concrete. The runner diameter we can manufacture is from 80cm to 4meters, with rated output 50Kw to 20Mw.

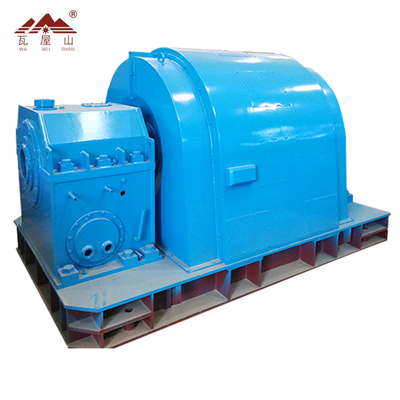

Turbine units normally be vertical shaft arrangement. Generator equipped with same or different shaft, with Anyway, they will share the same rotating speed. If specially required, a speed increase gear could be equipped between turbine and generator in order to smaller the generator size.
| Place of Origin: | Sichuan, China |
| Brand Name: | Customized |
| Warranty: | 1 year |
| Application: | Hydropower Plant |
| Certificate: | ISO9001 |
| Lifetime | 35 years |
Ø Suitable water head: 3-45m;
Ø Output scope: 100Kw -30Mw;
Ø Runner diameter: 80cm -400cm;
Ø Runner material: stainless steel;
Ø Arrangement type: Vertical;
-
