SS Hydro Turbine Runner Of Francis Turbine For 9000KW Hydro Generator
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 120 wordking days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+4 months |
|
Detail Information |
|||
| Runner Material: | Stainless Steel | Diameter: | 2.1 M |
|---|---|---|---|
| Machine Type: | Francis | Blade No: | 20 PCS |
| Capacity: | 9000KW | Weight: | 1500KG |
| Highlight: | 9000KW Hydro Turbine Runner,SS Turbine Runner Of Francis Turbine,SS francis turbine runner blade |
||
Product Description

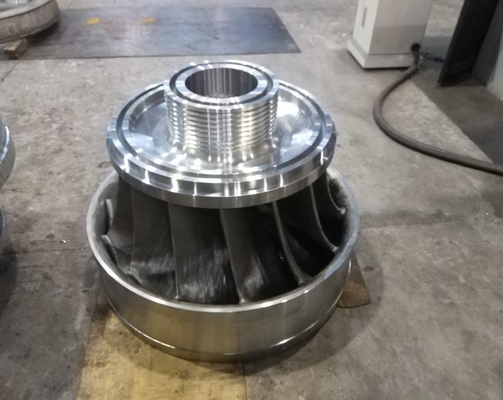

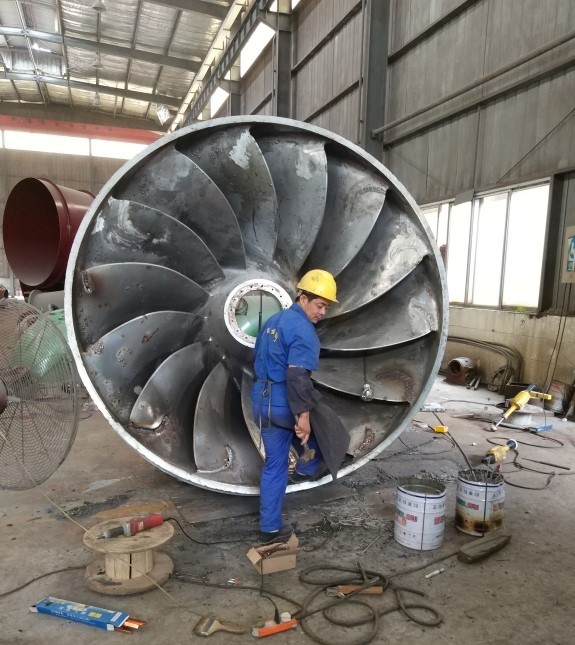

Stainless Steel Francis Turbine Runner For Hydro Generator
Francis runners manufactured from a split welded version, our Francis runners are characterised by high material toughness and finest grain structure. the high operation durability of runners allows our customer to lower turbine repair frequency while maintaining desired efficiency.
Grinding and polishing – thatʼs where the parts get their final touch. When it comes to the surface quality of complex shapes, we do not make any compromises.
Polishing based on CMM measurement report
Experienced employees polishing according to customer specific procedures
Several dimensional and quality controls through process
Compliance with all environmental standards thanks to the newest filtering technologies
Completed products are checked using four non-destructive testing methods (NDT).
Visual Testing (VT)
Liquid Penetrant Testing (PT)
Magnetic Particle Testing (MT)
Ultrasonic Testing (UT)
The actual unbalance is displayed in one or two planes by graphical and numerical output. There is also a deviation from the allowed unbalance displayed and a suggestion for the most convenient weight correction.
specification
| runner material | stainless steel |
| runner type | Francis |
| diameter | 2.1m |
| capacity | 9000kw |
| blade No | 20PCS |
| weight | 1500KG |
Why choose us?
1. More than 20 years of industry experience, install commissioning more than 150 equipment each year
2. Provide complete proposal for hydro power plant from water to wire
3. Abundant foreign power plant project implementation experience such as France, Japan, USA, South Africa, Sri Lanka, Iran, Southeast Asia
4. Design and manufacture of hydro power generator with voltage 400V,6.3KV . capacity exceed 1000kw with 400V
FAQ
1.You are a trading company or a manufacture?
We are a hydro turbine generator manufacture with over 20 years of experiences, Our factory is in the Sichuan you will take 2 hours driving after you reach Shuangliu Airport, pay a visit to our factory you will know more about us.
2.What Kind of water turbine should I choose?
We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution
3: Can you do the EPC for the hydro power plant?
Yes, We can design, producing and install the equipment, we will dispatch technologist and workers to install the equipment.
