1250kw Pelton Hydro Turbine 200m Single Nozzle Pelton Water Wheel Generator
1250kw Pelton Hydro Turbine
,200m Pelton Water Wheel Generator
,200m micro hydro pelton turbine
1250kw Hydro Pelton Turbine 200m Single Nozzle
Specification
| Name | 1250kw Pelton Hydroelectric Turbine Generator |
| Water Head | 200 m |
| Water flow | 0.8 m³/s |
| Capacity | 1250 KW |
| Frequency | 50HZ |
| Generator Voltage | 400V |
| Layout pattern | vertical |
| Material(blades) | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation | Brushless |
| Generator Insulation | F/F |
| Lifespan | 50 years |
FAQ
1.You are a trading company or a manufacture?
We are a hydro turbine generator manufacture with over 20 years of experiences, Our factory is in the Sichuan you will take 2 hours driving after you reach Shuangliu Airport, pay a visit to our factory you will know more about us.
2.What Kind of water turbine should I choose?
We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution
3: Can you do the EPC for the hydro power plant?

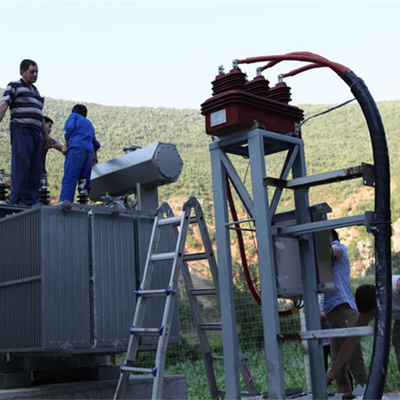

Yes, We can design, producing and install the equipment, we will dispatch technologist and workers to install the equipment.
Till now, HPGE offer a comprehensive range of hydroelectric power plant solutions that cover the entire scope of service including: Small hydro power project consultant; Site management studies; equipment Design; Hydroelectric equipment Manufacture; Project management; Installation guidance; Commission and start operation; Operation guidance; Hydroelectric equipment maintenance.
Products of HPGE are widely used in all around China, we cooperate with more than 300 hydro power plants with more than 600 turbine generators sets , including Francis turbine generator set, turgo turbine generator set, pelton turbine generator set, Kaplan turbine generator set, areas covering more than 20 provinces of China and also international markets such as Russia, Belarus, Turkey, Albania,Vietnam Indonesia, Nepal, Laos, Sri Lanka, Cuba and Brazil etc.
-
