Vertical 100m Head Pelton Hydro Turbine 50HZ On Gird 5000RPM

Vertical 100m Head Pelton Hydro Turbine 50HZ On Gird 5000RPM

Product Details:

Place of Origin: China
Brand Name: Wawushan
Certification: ISO9000
Model Number: CJA-058

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: plywood
Delivery Time: 180 wordking days
Payment Terms: T/T
Supply Ability: 1+unit+4 months
Get Best Price Contact Now

Detail Information

Runner: Stainless Steel Guide Vane: Stainless Steel
Nozzle: 1 Efficiency: 92.50%
Frequency: 50HZ Rotation: 5000RPM
Water Head: 100 M
Highlight:

100m Head Pelton Hydro Turbine

,

Pelton Hydro Turbine 5000RPM

,

5000RPM vertical pelton turbine

Product Description

Hydro Pelton Turbine Head 100m Above 50HZ on gird Srilanka





1. Nozzle and Flow Regulating Arrangement (Spear)
Nozzle is used to increase the kinetic energy of the water that is going to strike the buckets or vanes attached to the runner.
The quantity of water that strikes the buckets is controlled by spear. The spear is installed inside the nozzle and regulates the flow of water that is going to strike on the vanes of the runner. A nozzle containing spear is shown in the figure given below.
The spear is a conical needle present in the nozzle. It is operated by a hand wheel or automatically in an axial direction.
When the spear is move backward the rate of flow of water increases and when it is pushed forward the rate of flow of water decreases.

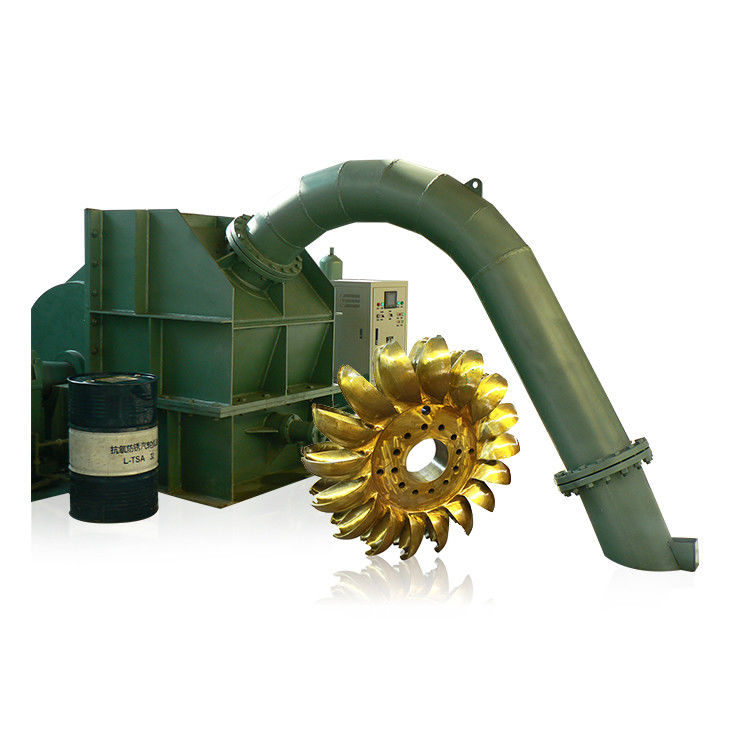

2. Runner and Buckets
Runner is a rotating part of the turbine. It is a circular disc on the periphery of which a number of buckets evenly spaced are fixed.
The buckets are made by two hemispherical bowl joined together. Each buckets have a wall in between two hemispherical bowl called splitter.
The splitter splits the jet of water striking the buckets into two equal parts and the jet of water comes out at the outer edge of the bucket.
The buckets are designed in such a way that the jet of water strike the buckets, deflected through 160 degree to 170 degree.
The buckets of the Pelton turbine are made up of cast iron, cast steel bronze or stainless steel.


3. Casing
It prevents the splashing of the water and helps to discharge the water to the trail race. It also acts as a safeguard in the case of any accident occurs.
Cast iron or fabricated steel plates are used to make the casing of the 1000kw pelton hydro turbine generator.



4. Breaking jet
When the jet of water is completely closed by pushing the spear in forward direction than the amount of water striking the runner becomes zero. But still the runner keeps moving due to the inertia of the runner.
In order to stop the runner in the shortest possible time a small nozzle is provided which directs the jet of water at the back of the vanes. This jet of water used to stop the runner of the turbine is called breaking jet.



Specification



Name Pelton Hydroelectric Turbine Generator
Water Head 100m
Water flow  0.9 m³/s
Capacity 700 KW
Frequency 50HZ
Generator Voltage 400V
Layout pattern vertical
Material(blades) Stainless Steel ZG0Cr13Ni4Mo
Excitation Brushless
Generator Insulation F/F
Lifespan 50 years



Vertical 100m Head Pelton Hydro Turbine 50HZ On Gird 5000RPM 0

Vertical 100m Head Pelton Hydro Turbine 50HZ On Gird 5000RPM 1



Vertical 100m Head Pelton Hydro Turbine 50HZ On Gird 5000RPM 2

Vertical 100m Head Pelton Hydro Turbine 50HZ On Gird 5000RPM 3

Vertical 100m Head Pelton Hydro Turbine 50HZ On Gird 5000RPM 4

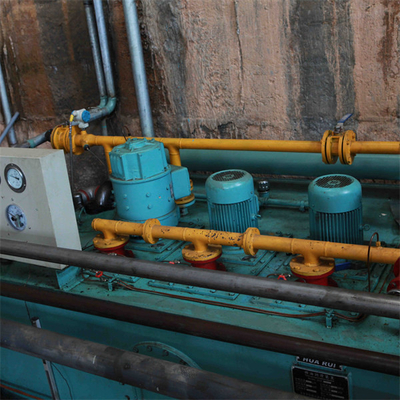

We get more than 100 sets machines for manufacturer process including processing machine and test machine. We can manufacturer Francis turbine, pelton turbine, turgo turbine, Kaplan turbine, synchronous generator, speed governor, brushless excitor, hydraulic hardware etc with unit turbine generator set capacity under 20MW.



Vertical 100m Head Pelton Hydro Turbine 50HZ On Gird 5000RPM 5

Vertical 100m Head Pelton Hydro Turbine 50HZ On Gird 5000RPM 6

Vertical 100m Head Pelton Hydro Turbine 50HZ On Gird 5000RPM 7
