8Mw Francis Hydro Turbine 800kw Water Head 65m Francis Turbine Generator
Product Details:
| Place of Origin: | Sichuan |
| Brand Name: | Wawushan |
| Certification: | ISO9000 |
| Model Number: | HLA-064 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 150 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1 set 4-5 month |
|
Detail Information |
|||
| Water Head: | 65 M | Water Flow: | 1.57 M³/s |
|---|---|---|---|
| Runner Material: | Stainless Steel | Efficiency: | 94.1 % |
| Capacity: | 800kw | Frequency: | 50HZ |
| Power Factor: | 0.80 | Rated Efficiency: | 94.1 % |
| High Light: | 8Mw Francis Hydro Turbine,65m Francis Turbine Generator,800kw francis water turbine |
||
Product Description
8 Mw Francis Turbina Generator 800kw Water Head 65m
Francis Turbine, also called mixed flow turbine and variable pressure turbine, is widely used in hydropower plants with low, middle and high water head ranging from 25m onwards to 550m commonly 30 to 300m. It has advantages such as: working stable, structure compact. Most import of all, the Francis water turbine we made would work with high efficiency of about 92% to 94.5%.
| No. | ||
| 1 | Water head | 65 m |
| 2 | Water flow | 1.57m³/s |
| 3 | Capapcity | 800kw |
| 4 | Efficiency | 94.1% |
| 5 | Frequency | 50Hz |
| 6 | Power factor | 0.80 |
| 7 | Rated efficiency | 94.1% |
| 8 | Excitation mode | Brushless |
| 9 | Color | Customized |
Vertical Francis Turbine Site Preview
The water turbine is covered under the ground for Vertical Layout pattern.What we see in the power house is generator.

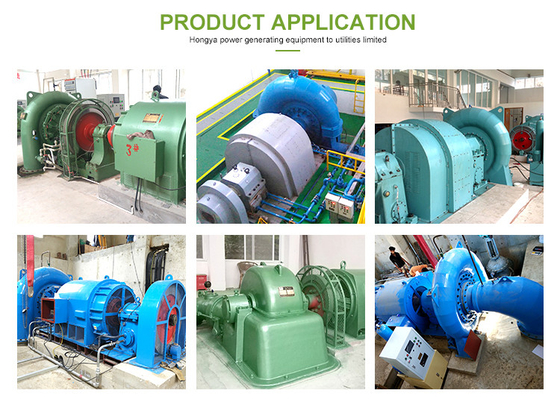

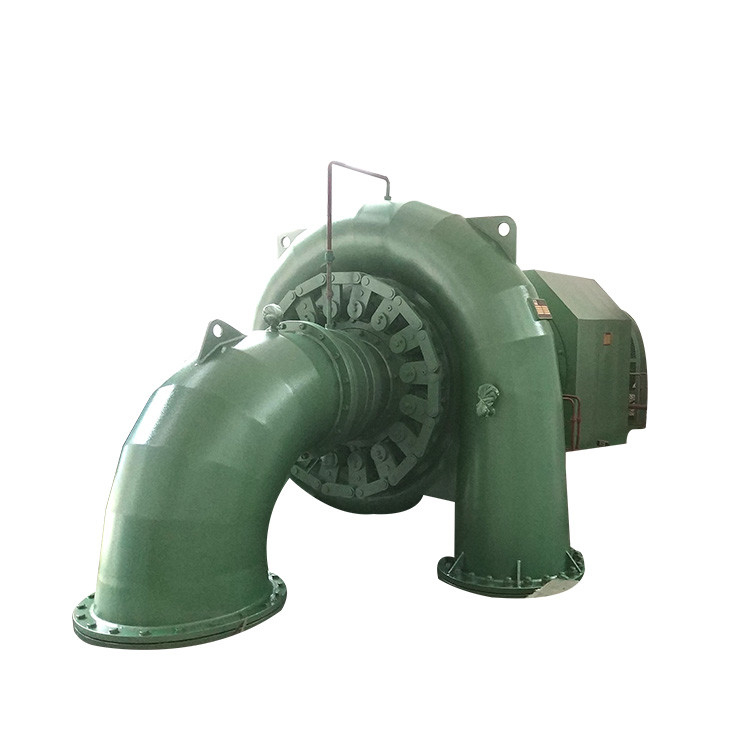

Horizontal Francis Turbine Installing Drawing and Installation Site
After Contract or Project details confirmed, we will off ther CAD Installing Drawing ,Below is the Horizontal Francis Turbine we made before.
