200kw Vertical Low Head Hydro Turbine Horizontal Hydro Turbine 13m Head

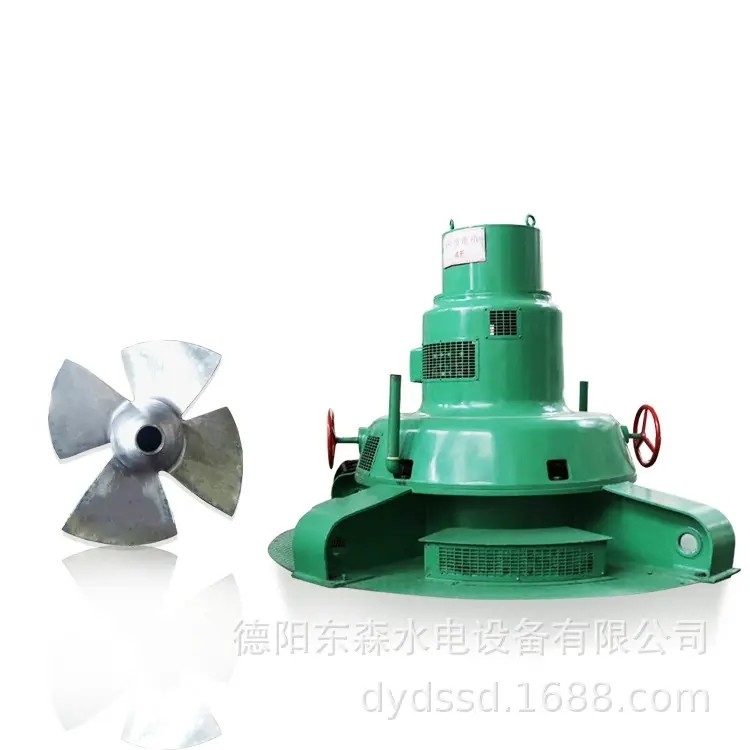

Vertical hydro power 200kw Kaplan Turbine Generator For Micro Power Plant

overview

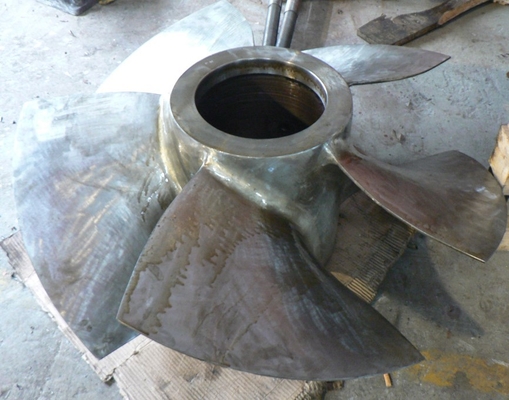

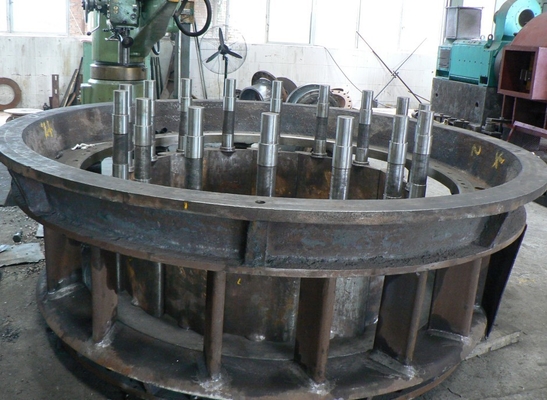

Kaplan turbine is a kind of turbine suit to low water head 2-50 meters, and with certain big flow, normally divided into fixed blades and adjustable blades turbine. Main components including: runner, draft cone, water chamber, guide vane, bearing, and main shaft. The spiral case could be steel or concrete. The runner diameter we can manufacture is from 60cm to 4meters, with rated output 50Kw to 20Mw.
Turbine units normally be vertical shaft arrangement. Generator equipped with same or different shaft, with Anyway, they will share the same rotating speed. If  specially required, a speed increase gear could be equipped between turbine and generator in order to smaller the generator size.

Specification

advantage

1. Suitable for high head, small flow and flow changes in large runoff hydro power station;
2. With the power plant investment is small, compact units structure characteristics;
3. Has the efficiency changes smoothly,operating a wide range,even in the 15%-20% load
is reduced efficiency;
4. Suitable for high head small flow station in mountain area;
5. A unit construction, simple restrictions without cavitation condition, the advantages of
stable operation, less investment, construction area.

Standard followed as below:

1. GB/T15468-95 Fundamental technical requirements for hydraulic turbine
2. GB10969-95 Specifications for water passage components of hydraulic turbines neq IEC 193No.1:1977
3. GB/T7894-2001 Fundamental technical requirements for hydraulic turbine generator
4.  GB9652-95 Specifications of governors and pressure oil supply units for hydraulic turbines
5.  GB10585-97 Fundamental requirements of excitation system for medium and small generators
6. GB11805-97 Fundamental technical requirements for automatic control components and their related system for medium and small hydro   generating sets
7.  GB8564-97 Specifications for installation of hydraulic-turbine and generator units
8. GB/T15469-95 Cavitation pitting evaluation in reaction trubines
9.  JB/DQ1428-97 Quality grading for medium and small hydraulic turbines
10. JBT6752-93 Specifications for static balancing test of medium and small hydraulic turbine runner
11. JBDQ3467-97 Quality grading for medium and small hydraulic turbine generators
12. GB/T14478-1993 Fundamental technical requirements for large and medium inlet valves of hydraulic turbines

Why choose us?

1. More than 20 years of industry experience, install commissioning more than 150 equipment each year

2. Provide complete proposal for hydro power plant from water to wire

3. Abundant foreign power plant project implementation experience such as France, Japan, USA, South Africa, Sri Lanka, Iran, Southeast Asia

4. Design and manufacture of hydro power generator with voltage 400V,6.3KV . capacity exceed 1000kw with 400V

FAQ

1. You are a trading company or a manufacture?

We are a hydro turbine generator manufacture with over 20 years of experiences, Our factory is in the Sichuan you will take 2 hours driving after you reach Shuangliu Airport, pay a visit to our factory you will know more about us.

2. What Kind of water turbine should I choose?

We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution

3: Can you do the EPC for the hydro power plant?

Yes, We can design, producing and install the equipment, we will dispatch technologist and workers to install the equipment.
