Vertical 8000kw Kaplan Water Turbine Stainless Steel 31m Water Head

Vertical 8000kw Water Kaplan Turbine Generator For Micro Power Plant

overview

A Kaplan turbine is basically a propeller with adjustable blades inside a tube. It is an axial-flow turbine, which means that the flow direction does not change as it crosses the rotor.

1. Scroll Casing

It is a spiral type of casing that has decreasing cross section area. The water first enters into the scroll casing and then it moves through it to the guide vanes and finally to the runner blades. It protects the runner, runner blades guide vanes and other internal parts of the turbine from an external damage.

2. Guide Vanes and Guide Mechanism

Guide vanes are used to direct the water to the runner blades smoothly by decreasing its swirl velocity. If guide vanes is absent than the turbine can not work efficiently and its efficiency decreases. The guides are adjustable in Kaplan turbine. Its opening and closing depends upon the demand of power requirement. In case of more power output requirements, it opens wider to allow more water to hit the blades of the rotor and when low power output requires it closes itself to cease the flow of water.

3. Runner and Runner Blades

Runner is the rotating part of the turbine or we can say that it is the heart of the Kaplan turbine. Its shaft is connected to the shaft of the generator. The runner of the this turbine has a large boss on which its blades are attached and the the blades of the runner is adjustable to an optimum angle of attack for maximum power output. The blades of the Kaplan turbine has twist along its length.

Specification

Standard followed as below:

1. GB/T15468-95 Fundamental technical requirements for hydraulic turbine
2. GB10969-95 Specifications for water passage components of hydraulic turbines neq IEC 193No.1:1977
3. GB/T7894-2001 Fundamental technical requirements for hydraulic turbine generator
4.  GB9652-95 Specifications of governors and pressure oil supply units for hydraulic turbines
5.  GB10585-97 Fundamental requirements of excitation system for medium and small generators
6. GB11805-97 Fundamental technical requirements for automatic control components and their related system for medium and small hydro   generating sets
7.  GB8564-97 Specifications for installation of hydraulic-turbine and generator units
8. GB/T15469-95 Cavitation pitting evaluation in reaction trubines
9.  JB/DQ1428-97 Quality grading for medium and small hydraulic turbines
10. JBT6752-93 Specifications for static balancing test of medium and small hydraulic turbine runner
11. JBDQ3467-97 Quality grading for medium and small hydraulic turbine generators
12. GB/T14478-1993 Fundamental technical requirements for large and medium inlet valves of hydraulic turbines
13. JB/T8527-1989 Metal sealed butterfly valve
14. JB/T5299-1998 Hydraulic control slow-closing butterfly valve

Why choose us?

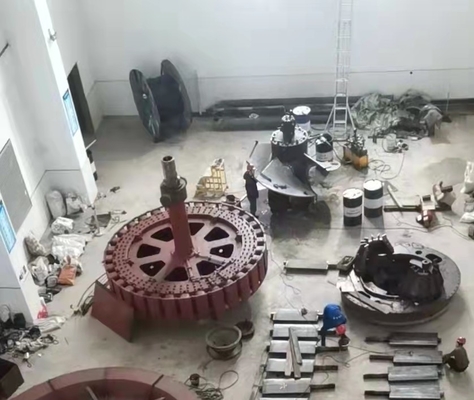

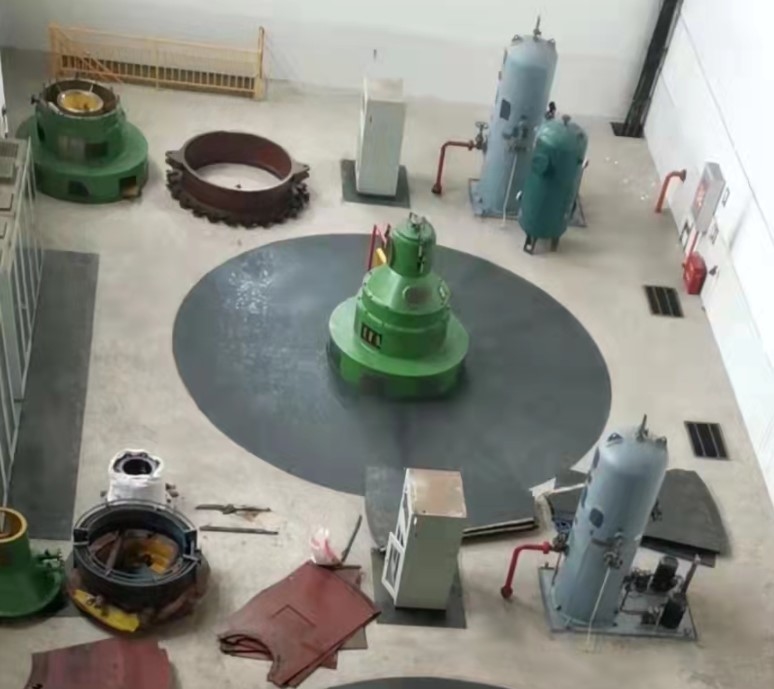

1. More than 20 years of industry experience, install commissioning more than 150 equipment each year

2. Provide complete proposal for hydro power plant from water to wire

3. Abundant foreign power plant project implementation experience such as France, Japan, USA, South Africa, Sri Lanka, Iran, Southeast Asia

4. Design and manufacture of hydro power generator with voltage 400V,6.3KV . capacity exceed 1000kw with 400V

FAQ

1.You are a trading company or a manufacture?

We are a hydro turbine generator manufacture with over 20 years of experiences, Our factory is in the Sichuan you will take 2 hours driving after you reach Shuangliu Airport, pay a visit to our factory you will know more about us.

2.What Kind of water turbine should I choose?

We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution

3: Can you do the EPC for the hydro power plant?

Yes, We can design, producing and install the equipment, we will dispatch technologist and workers to install the equipment.
