50HZ Hydro Electric Power System Francis 1 Mw Hydro Turbine Generator
50HZ Hydro Electric Power System
,Francis 1 Mw Hydro Turbine Generator
,50HZ micro hydro power system
1Mw Francis Turbina Generator 1000kw Water Head 85m

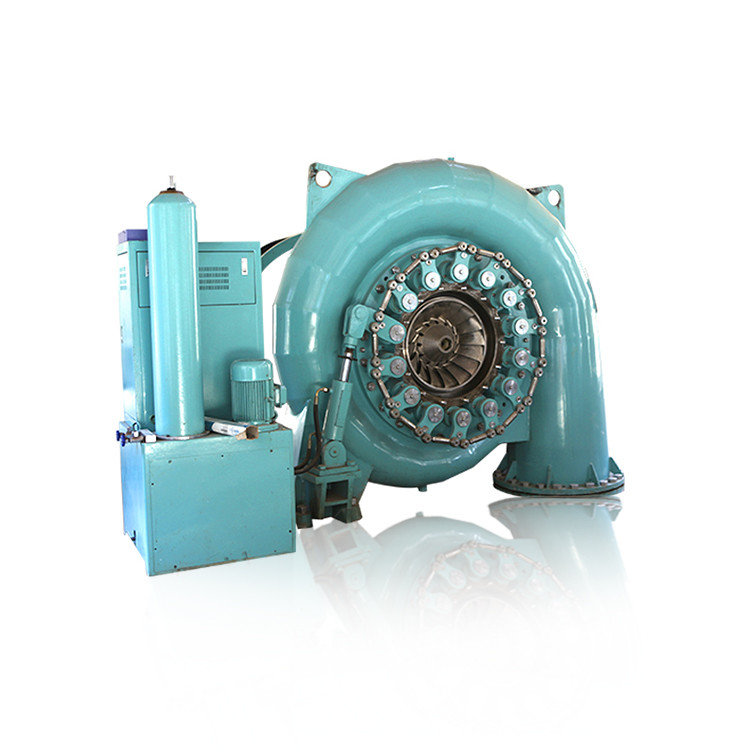

Mixed hydro turbine has radical inflow into runner, axle outflow from runner, which is referred to as Francis hydro turbine. The features of Francis turbine are simple structure and reliable operation; high efficiency, suitable for water head of 10 m-70 m, which is currently one of the mostly widely used. There are vertical shaft and horizontal shaft Francis turbine.
Vertical Francis turbine unit, with vertical shaft, metal spiral case or concrete spiral case. With adjustable guide vane, and stay ring etc parts, are suit to runner diameter bigger than 1000mm. Our engineer will select the most suitable Francis turbine for your hydro power project.
| No. | ||
| 1 | Water head | 85 m |
| 2 | Water flow | 1.50m³/s |
| 3 | Capapcity | 1000kw |
| 4 | Efficiency | 93.7% |
| 5 | Frequency | 50Hz |
| 6 | Power factor | 0.80 |
| 7 | Rated efficiency | 93.7% |
| 8 | Excitation mode | Brushless |
| 9 | Color | Customized |
-
