Micro Mini Small Water Francis Pelton Turgo Kaplan Hydro Hydraelectric Turbine Permanent Magnet Generator alter
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Certification: | ISO9001 |
| Model Number: | SF-022 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 180 wordking days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+4 months |
|
Detail Information |
|||
| Shaft: | Forged Steel | Layout: | Horizontal |
|---|---|---|---|
| Insulation Class: | F/F | Excitation: | Brushless |
| Voltage: | 400v | Capacity: | 1600kw |
| High Light: | 400v Horizontal Hydro Turbine Generators,Hydro Turbine Generators 1600kw,horizontal water turbine 1600kw |
||
Product Description

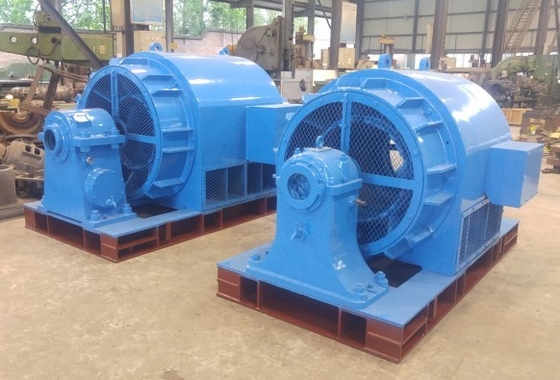

1600kw Small Water Turbine Generator For Micro Hydro Power Plant
overview
Hydro turbine generator is droved directly or indirectly by hydro turbine. The rotating speed is less than 1500r/min, with horizontal and vertical arrangement. Excitation mode with brushless and static silicon type.

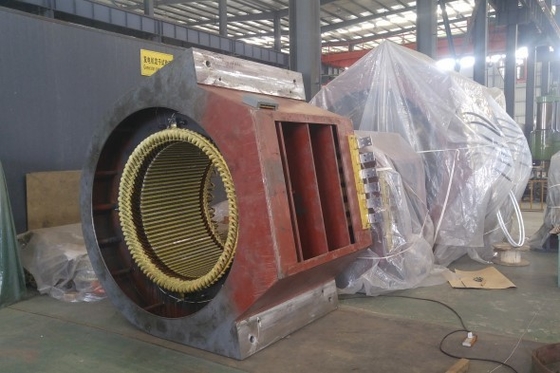

Components including stator, rotor,base frame, bearing, excitation motor or collecting ring. The outlet voltage from 400V to 13.8KV, and frequency could be 50Hz or 60Hz, output from 50Kw to 50Mw. Our generator are high efficiency, reliable, manufacture and tests all follow related IEC standards.
Hydro-generating unit is the key power equipment in the hydropower plant.
The hydro generator is a device that converts the rotating mechanical energy of a hydro-turbine into electrical energy through a main shaft connected to the hydro-turbine runner. two different mount for generator of vertical and horizontal which could be operated at brushless excitation and thyristor excitation. the hydro generator has usually used air as medium to cool its stator, rotor winding and iron core.
A hydraulic turbine converts the energy of flowing water into mechanical energy. A hydroelectric generator converts this mechanical energy into electricity. The operation of a generator is based on the principles discovered by Faraday. He found that when a magnet is moved past a conductor, it causes electricity to flow. In a large generator, electromagnets are made by circulating direct current through loops of wire wound around stacks of magnetic steel laminations. These are called field poles, and are mounted on the perimeter of the rotor. The rotor is attached to the turbine shaft, and rotates at a fixed speed. When the rotor turns, it causes the field poles (the electromagnets) to move past the conductors mounted in the stator. This, in turn, causes electricity to flow and a voltage to develop at the generator output terminals."
Specification
| Name | 1600kw Small Water Turbine Generator |
| Capacity2 | 1600KW |
| Frequency | 50HZ |
| Generator Voltage | 400V |
| Layout pattern | vertical |
| Material(coil) | copper |
| Excitation | Brushless |
| Generator Insulation | F/F |
| Lifespan | 60 years |
