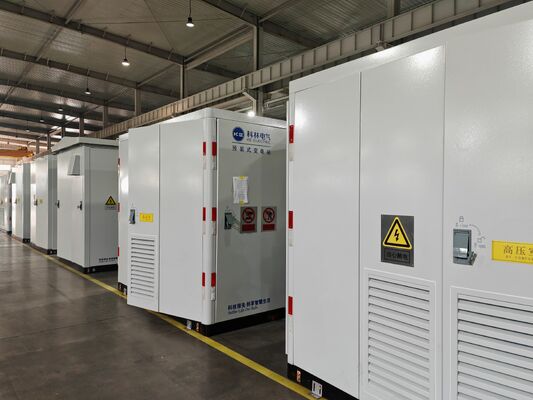

96.20% Efficiency Generator Excitation System with 100KW to 20MW Output Capacity and 110V to 690V Voltage Range for Synchronous Generators
96.20% Efficiency Generator Excitation System
,100KW to 20MW Output Capacity Synchronous Generator Excitation System
,110V to 690V Voltage Range AVR Excitation System
- Automatic Voltage Regulator (AVR) control system
- High efficiency rating of 96.20%
- Broad output capacity: 100KW to 20MW
- Voltage range: 110V to 690V
- Current range: 0 to 500A
- Horizontal layout for space-efficient installation
- Panel or cabinet mounting options
- Advanced monitoring and diagnostic capabilities
| Parameter | Specification |
|---|---|
| Rated Efficiency | 96% |
| Runner Blade | Fixed |
| Rated Current | 5A |
| Type | Synchronous Generator |
| Output Capacity | 100KW to 20MW |
| Dimension | 3M*3M*2.5M |
| Current Range | 0 to 500A |
| Mounting Type | Panel Mounted or Cabinet Mounted |
| Control Type | Automatic Voltage Regulator (AVR) |
| Efficiency | 96.20% |
-
