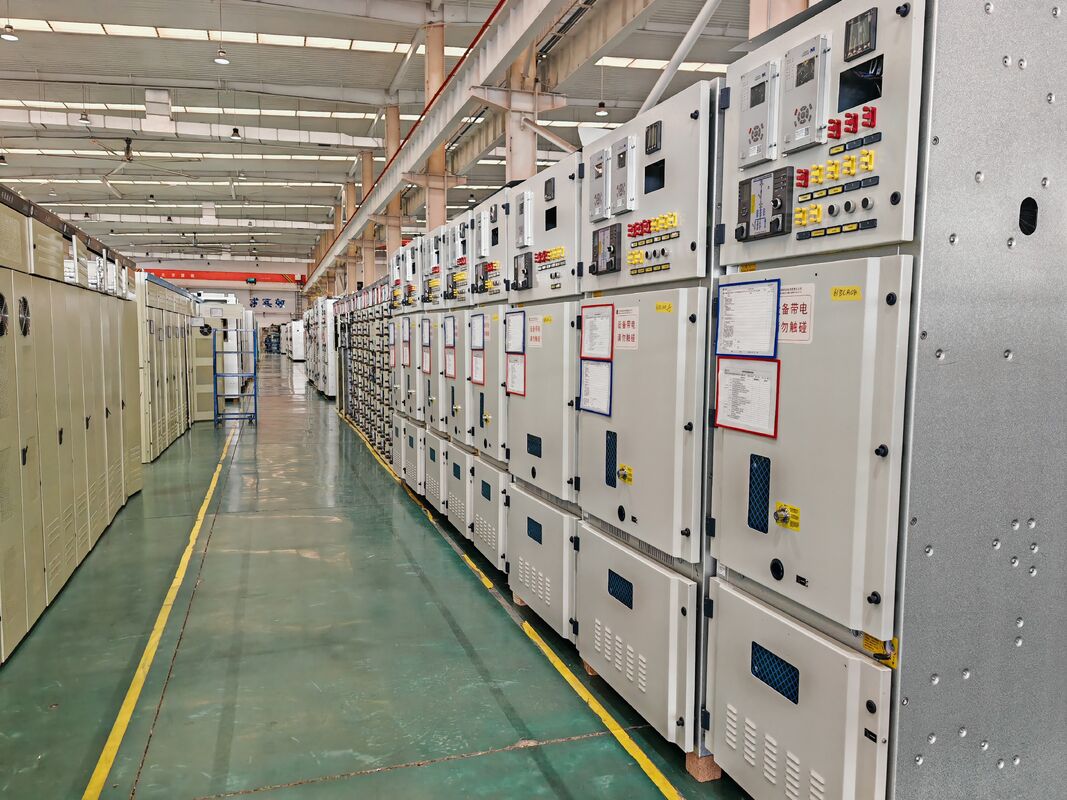

100V Input AC Voltage Generator Excitation System with 0 to 500A Current Range and 96% Rated Efficiency for Synchronous Generator Control

100V Input AC Voltage Generator Excitation System with 0 to 500A Current Range and 96% Rated Efficiency for Synchronous Generator Control
Generator Excitation System Input AC Voltage 100V Generator Excitation System featuring current range 0 to 500A, suitable for synchronous generator control and monitoring. Product Overview The Generator Excitation System is a critical component designed specifically for synchronous generators, ...
Brand Name:WaWuShan
Certification:ISO
Model Number:SFW-200KW (2000KW)
Minimum Order Quantity:1
Price:200000
Product Custom Attributes
Highlight

100V Input AC Voltage Generator Excitation System

,

0 to 500A Current Range Synchronous Generator Excitation System

,

96% Rated Efficiency AVR Excitation System

Rated Current:
5A
Layout:
Horizontal
Controltype:
Automatic Voltage Regulator (AVR)
Rated Efficiency:
96%
Rated Frequency:
50HZ
Output Capacity:
100KW To 20MW
Mountingtype:
Panel Mounted Or Cabinet Mounted
Efficiency:
96.20%
Material:
Copper
Product Description
Generator Excitation System
Input AC Voltage 100V Generator Excitation System featuring current range 0 to 500A, suitable for synchronous generator control and monitoring.
Product Overview
The Generator Excitation System is a critical component designed specifically for synchronous generators, providing reliable and efficient excitation to ensure optimal performance. With compact dimensions of 3m * 3m * 2.5m, this robust system is ideal for industrial applications where space efficiency is paramount.
Key Features
Product Name: Generator Excitation System
Voltage Range: 110V to 690V
Layout: Horizontal
Type: Synchronous Generator
Runner Blade: Fixed
System Benefits:
  • Reliable excitation system for stable generator performance
  • Advanced design ensuring efficient voltage regulation
  • Durable construction suitable for various industrial applications
Technical Specifications
Parameter Specification
Layout Horizontal
Current Range 0 to 500A
Efficiency 96.20%
Input AC Voltage 100V
Output Capacity 100KW to 20MW
Rated Current 5A
Dimension 3M * 3M * 2.5M
Rated Frequency 50HZ
Mounting Type Panel Mounted or Cabinet Mounted
Control Type Automatic Voltage Regulator (AVR)
Applications
The Wawushan EX-202501 Generator Excitation System is engineered for demanding power generation applications including thermal, hydroelectric, and gas turbine power plants. Its precise voltage control capabilities make it suitable for mining, manufacturing, marine power generation, and critical infrastructure such as hospitals and data centers.
Customization & Ordering
Model: Wawushan EX-202501
Origin: China (ISO9001 Certified)
Minimum Order: 1 set
Price Range: $5,000 to $60,000 USD
Supply Capacity: 300 sets per unit
Delivery Time: Approximately 3 months
Payment Terms: T/T
Technical Support & Services
We provide comprehensive technical support including installation assistance, commissioning, troubleshooting, and maintenance services. Our offerings include detailed documentation, firmware updates, diagnostic tools, and comprehensive training programs to ensure optimal system performance and operational safety.
