1000KW Hydro Turbine Generator with Brushless Excitation and Vertical Layout for Micro Hydro Power Systems
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Certification: | ISO9001 |
| Model Number: | SF-020 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 180 wordking days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+4 months |
|
Detail Information |
|||
| Shaft: | Forged Steel | Layout: | Vertical |
|---|---|---|---|
| Insulation Class: | F/F | Excitation: | Brushless |
| Voltage: | 400v | Capacity: | 1000kw |
| Highlight: | 1000kw Hydro Electric System,400V 50hz Hydro Electric System,400V 50hz hydroelectric power generator |
||
Product Description
Hydro Turbine Generators for Micro Hydro Power Systems
Product Overview
Our 1000kW hydroelectric systems are engineered for micro hydro power plants, utilizing proven technology for efficient energy conversion and long-term reliability. These systems transform the energy of flowing water into mechanical energy through hydraulic turbines, which is then converted into electricity by hydroelectric generators.
The generator operation is based on Faraday's principles, where rotating electromagnets (field poles) mounted on the rotor pass by conductors in the stator, generating electricity at the output terminals. Our extensive hydropower expertise enables us to match customers with optimal technology for their specific site requirements.
Generator Technology Features
- Low-speed machines ideal for run-of-river plants with Kaplan turbines
- High-speed machines designed for Francis and Pelton turbines in high-head applications
- Engineered to reduce thermo-mechanical stress for improved reliability and extended lifespan
- Stator core pressing system ensures precise pressure application where needed
- Standard closed-loop air ventilation circuit
- Advanced cooling systems available for specific site conditions
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | 1000kW Hydro Electric Systems |
| Capacity | 1000KW |
| Frequency | 50HZ |
| Generator Voltage | 400V |
| Layout Pattern | Vertical |
| Material (Coil) | Copper |
| Excitation | Brushless |
| Generator Insulation | F/F |
| Lifespan | 50 years |

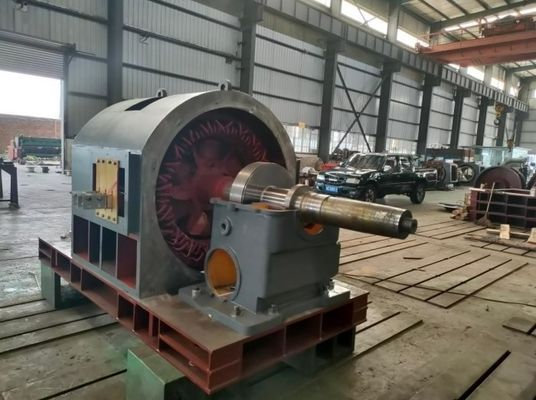

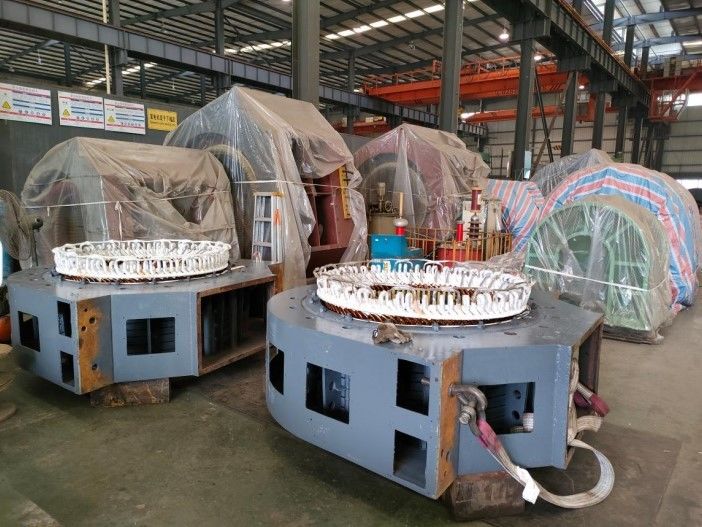

Product Gallery
Want to Know more details about this product
