100kw Horizontal Stainless Steel Francis Hydro Turbine Water Turbine Generator for Micro Hydro Power Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Certification: | ISO9001 |
| Model Number: | HLA-001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 180 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+4 months |
|
Detail Information |
|||
| Product Name: | 100kw Francis Hydro Turbine | Runner Material: | Stainless Steel |
|---|---|---|---|
| Layout Pattern: | Horizontal Or Vertical | Guide Vane: | Stainless Steel |
| Runner Diameter: | 0.5m-4m | Efficiency: | 85%-95% |
| Water Head: | 20m | Flow Meter: | 0.65 M3 |
| Highlight: | Horizontal Francis Hydraulic Turbine,Francis Hydraulic Turbine 100kw,Horizontal 100kw hydro generator |
||
Product Description
100kW Horizontal Francis Hydro Turbine
Professional-grade Francis hydro turbine generator designed for micro hydro power plants, delivering reliable 100kW power generation with exceptional efficiency and durability.
Product Overview
The Francis turbine represents an optimal solution bridging the gap between Pelton and Kaplan turbines, operating effectively across water heads from 10 to 600 meters. Engineered primarily for electric power generation, these turbines can produce outputs ranging from 10kW to over 700MW, calculated based on water head and flow rate. A distinctive advantage of Francis turbines is their dual functionality—they can operate as water pumps, making them ideal for pumped storage systems.
Francis turbines dominate the global hydropower market, accounting for approximately 60% of worldwide hydropower capacity. Hongya Hydro Power maintains a strong commitment to research and development, continuously enhancing turbine efficiency and performance through innovative product improvements.
With over 300 successful installations completed in the past 20 years, our Francis turbines are engineered to withstand high mechanical stresses from elevated water heads. Key components include spiral casing, stay vanes, guide vanes, runner, and draft tube. The runner configuration is customizable to achieve maximum efficiency across the entire operational range.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | 100kW Water Turbine Generator |
| Water Head | 10m or customized |
| Runner Diameters | 0.45m-1m |
| Power Output | 100kW |
| Frequency | 50Hz/60Hz |
| Generator Voltage | 400V |
| Layout Pattern | Horizontal or Vertical |
| Blade Material | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation System | Brushless |
| Generator Insulation | F/F |
| Design Lifespan | 50 years |
Why Choose Hongya Hydro Power?
- Over 20 years of industry expertise with annual commissioning of 150+ equipment units
- Comprehensive hydro power plant solutions from water source to electrical output
- Extensive international project experience across France, Japan, USA, South Africa, Sri Lanka, Iran, and Southeast Asia
- Custom design and manufacturing of hydro generators with voltages from 400V to 6.3KV and capacities exceeding 1000kW at 400V
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a dedicated hydro turbine generator manufacturer with over 20 years of experience. Our factory is located in Sichuan, approximately 2 hours from Shuangliu Airport. We welcome factory visits to showcase our capabilities.
How do I select the appropriate water turbine?
We require specific parameters including water head, flow rate, voltage level, frequency requirements, grid connection type (on-grid or off-grid), and automation level to develop the optimal solution for your needs.
Can you provide EPC services for hydro power plants?
Yes, we offer comprehensive Engineering, Procurement, and Construction services. Our team handles design, production, and installation, deploying qualified technicians and workers to ensure proper equipment installation and commissioning.

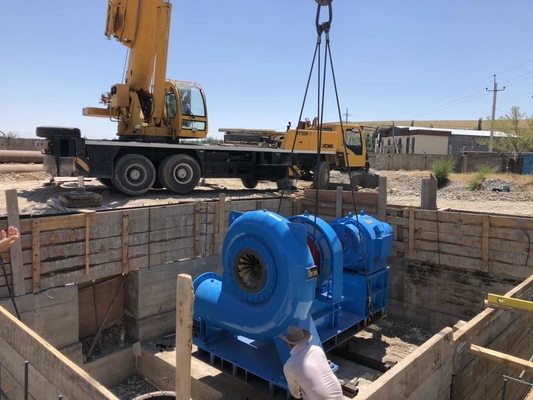

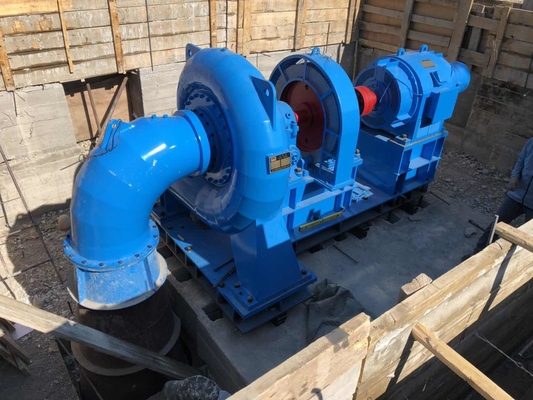

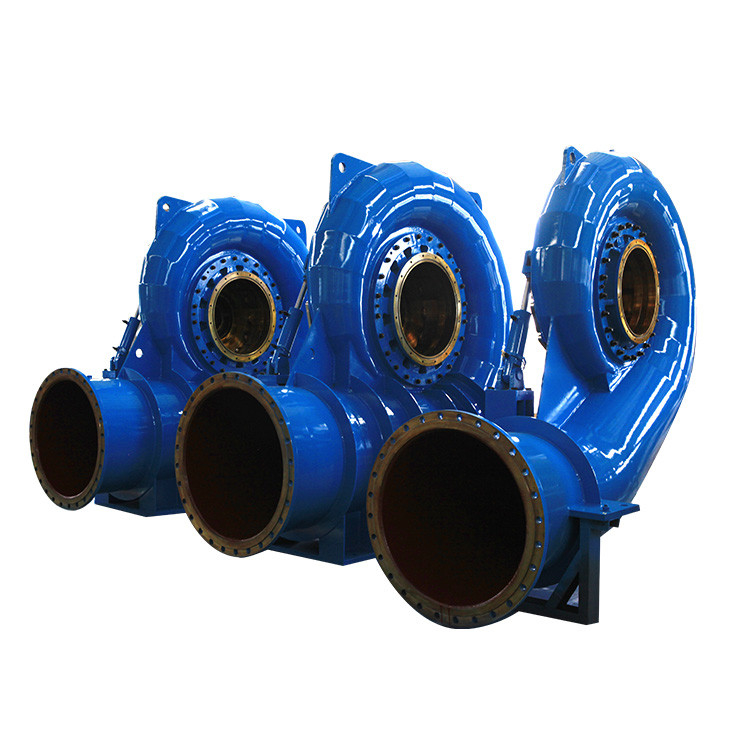

Product Gallery
