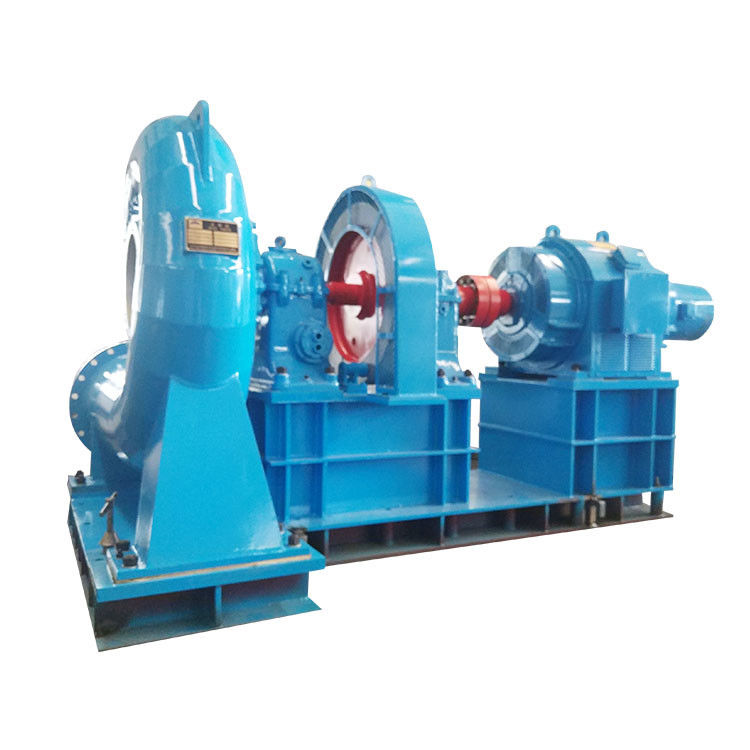

400kw Francis Hydro Turbine with 90.2% Efficiency, Stainless Steel Runner, and 47m Water Head for Hydropower Plants
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Certification: | ISO9001 |
| Model Number: | HLA-003 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 180 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+4 months |
|
Detail Information |
|||
| Product Name: | 400kw Francis Turbine | Runner Material: | Stainless Steel |
|---|---|---|---|
| Layout: | Horizontal | Guide Vane: | Stainless Steel |
| Runner Diameter: | 0.75m | Efficiency: | 90.2% |
| Water Head: | 47m | Flow Meter: | 1.08m3 |
| Highlight: | 400kw SS Micro Francis Turbine,SS Micro Francis Turbine Brushless,400kw mini francis turbine |
||
Product Description
Francis Hydro Turbine – The Most Widely Used Hydro Turbine Type
Covering sixty percent of global hydropower capacity worldwide, the Francis turbine is the industry standard for reliable hydroelectric power generation.
400kW Micro Hydro Turbine for Hydro Power Plants
The Francis turbine fills the operational gap between Pelton and Kaplan turbines, operating efficiently across water heads from 10 to 600 meters. Primarily used for electric power generation, these turbines can produce from 10 to over 700 megawatts, with output calculated based on water head and flow rate.
Key Advantages
A distinct advantage of Francis turbines is their dual functionality – they can operate as water pumps, making them ideal for pumped storage systems. This versatility, combined with their ability to sustain high mechanical stress from high heads, makes them the preferred choice for 60% of global hydropower capacity.
Hongya Hydro Power Expertise
With over 20 years of continuous R&D investment, Hongya Hydro Power has enhanced turbine efficiency and machine performance. We have successfully installed more than 300 Francis turbine units, each designed to withstand demanding operational conditions with components including spiral casing, stay vanes, guide vanes, runner, and draft tube.
Comprehensive Hydro Power Solutions
We specialize in small-scale hydro power equipment (50kW to 20MW), serving as both manufacturer and EPC contractor. Our water-to-wire services include:
- Water Turbine Generator Unit Design & Supply
- Hydropower Equipment Supply
- Feasibility Study of Hydropower Projects
- Manufacturing
- Installation & Supervision
- Commissioning and Training Services
- Hydro Power Plant Rehabilitation
- Hydro Power Plant Spares Supply
- Ongoing Maintenance Services
Technical Specifications – 800kW Water Turbine Generator
| Parameter | Specification |
|---|---|
| Water Head | 47m or customized |
| Runner Diameters | 0.69 m |
| Capacity | 800KW |
| Frequency | 50HZ |
| Generator Voltage | 400V |
| Layout Pattern | Horizontal |
| Material (Blades) | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation | Brushless |
| Generator Insulation | F/F |
| Lifespan | 30~50 years |
Why Choose Hongya Hydro Power?
- Over 20 years of industry experience with 150+ equipment installations commissioned annually
- Complete hydro power plant solutions from water to wire
- Extensive international project experience in France, Japan, USA, South Africa, Sri Lanka, Iran, and Southeast Asia
- Expert design and manufacturing of hydro power generators with voltages from 400V to 6.3KV
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a hydro turbine generator manufacturer with over 20 years of experience. Our factory is located in Sichuan, just a 2-hour drive from Shuangliu Airport. We welcome visits to our facility for comprehensive understanding of our capabilities.
What kind of water turbine should I choose?
We require specific parameters including water head, flow rate, voltage level, frequency, on-grid or off-grid operation, and automation level to provide the optimal solution for your specific requirements.
Can you handle EPC for hydro power plants?
Yes, we provide comprehensive EPC services including design, production, and installation. Our team of technologists and skilled workers will manage the complete installation process.
