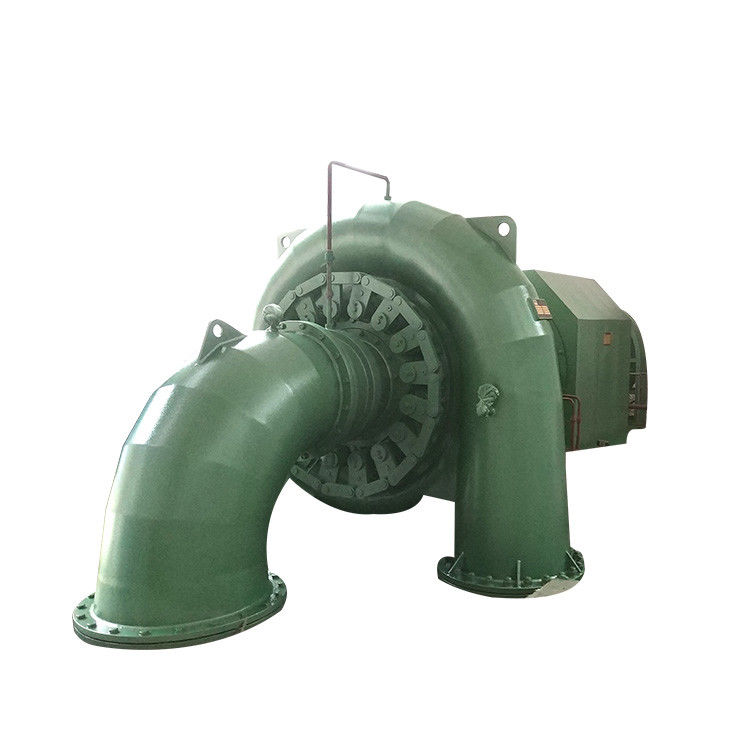

Francis Hydro Turbine Generator with 90.9% Efficiency, Stainless Steel Runner, and 86m Water Head for Large Scale Hydroelectric Projects
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Certification: | ISO9001 |
| Model Number: | HLA-005 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 180 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+4 months |
|
Detail Information |
|||
| Product Name: | 4.5MW Francis Hydro Turbine Generator | Runner Material: | Stainless Steel |
|---|---|---|---|
| Layout Pattern: | Horizontal | Guide Vane: | Stainless Steel |
| Runner Diameter: | 1.5m | Efficiency: | 90.9% |
| Water Head: | 86m | Flow Meter: | 6.67m3 |
| Highlight: | 4.5MW Francis Hydro Turbine Generator,Horizontal Francis Hydro Turbine Generator,4.5MW micro francis turbine |
||
Product Description
Francis Hydro Turbine Generator
High-performance Francis hydro turbine providing power output ranging from 10 to over 700 megawatts for large-scale hydroelectric projects. Ideal for water heads from 10 to 600 meters with versatile applications in electric power generation and pumped storage systems.
Product Overview
The Francis turbine effectively bridges the gap between Pelton and Kaplan turbines, offering wide operational flexibility. These turbines operate efficiently across water heads from 10 to 600 meters and are primarily designed for electric power generation. Power output is calculated based on water head and flow rate, typically ranging from 10 to more than 700 megawatts. A key advantage of Francis turbines is their dual functionality - they can also operate as water pumps, making them ideal for pumped storage systems.
Key Components
- Water Inlet System: Features valves for unit closure in static water during shutdown and emergency water flow cutoff during turbine distributor failures
- Spiral Case: Welded construction with fixed guide vanes that create controlled water swirl patterns and direct water flow into guide vane apparatus
- Turbine Distributor: Comprises guide vanes, levers, shaft sleeves, and covers for precise water flow control and emergency shutdown capabilities
- Runner Assembly: The core component converting water energy to mechanical energy, constructed from stainless steel ZG06Cr13Ni4Mo for superior anti-cavitation and corrosion resistance
- Draft Tube System: Consists of elbow and cone sections that guide water flow downstream while optimizing energy recovery through diffusion
- Monitoring Instruments: Includes pressure gauges on spiral cases and vacuum gauges on draft tube elbows for comprehensive system monitoring
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Name | 1200kw Water Turbine Generator |
| Water Head | 67m or customized |
| Runner Diameter | 2.28m |
| Capacity | 800KW |
| Frequency | 50HZ |
| Generator Voltage | 400V |
| Layout Pattern | Horizontal |
| Blade Material | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation System | Brushless |
| Generator Insulation | F/F |
| Design Lifespan | 50 years |
Why Choose Our Francis Turbines?
- Over 20 years of industry experience with 150+ equipment installations annually
- Complete hydro power plant solutions from water source to electrical output
- Extensive international project experience across France, Japan, USA, South Africa, Sri Lanka, Iran, and Southeast Asia
- Expert design and manufacturing of hydro generators with voltages from 400V to 6.3KV and capacities exceeding 1000KW
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a dedicated hydro turbine generator manufacturer with over 20 years of experience. Our factory is located in Sichuan, easily accessible from Shuangliu Airport. We welcome factory visits to showcase our capabilities.
How do I select the right water turbine?
We require key parameters including water head, flow rate, voltage level, frequency, grid connection requirements, and automation level to provide optimal solutions.
Can you provide EPC services for hydro power plants?
Yes, we offer comprehensive Engineering, Procurement, and Construction services including equipment design, production, installation, and technical support.

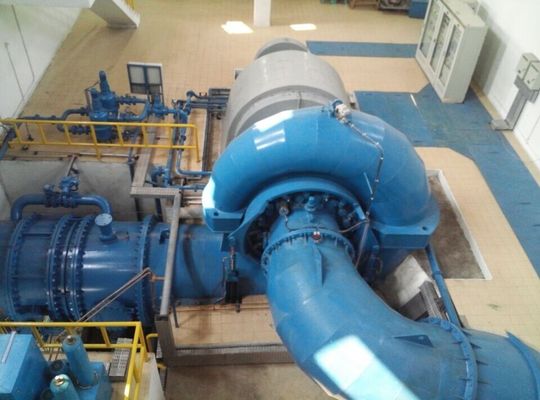

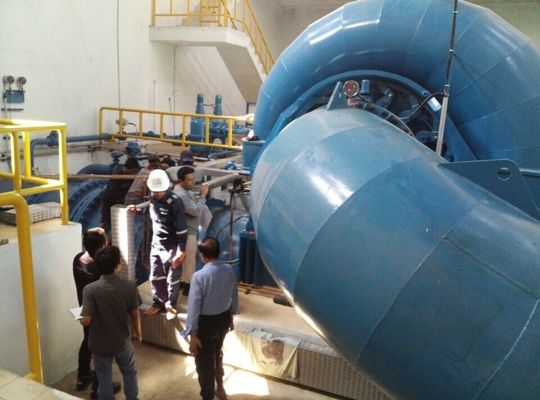

Product Gallery
