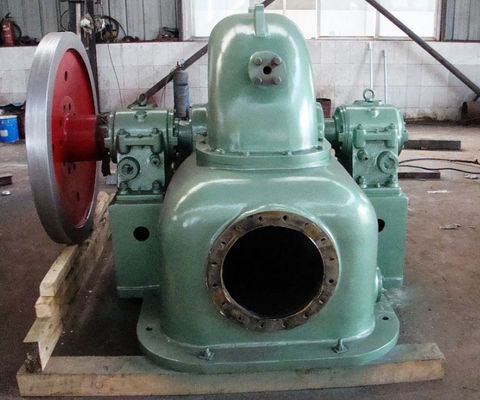

300kw Single Nozzle Pelton Hydro Turbine with Stainless Steel Runner for Micro Hydro Power Generation
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Certification: | ISO9001 |
| Model Number: | CJA-004 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 180 wordking days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+4 months |
|
Detail Information |
|||
| Runner: | Stainless Steel | Guide Vane: | Stainless Steel |
|---|---|---|---|
| Nozzle: | Single | Layout: | Horizontal |
| Efficiency: | 90.0% | Runner Diameter: | 0.5m |
| Rotation: | 1000RPM | Voltage: | 400V |
| Highlight: | single Nozzle Vertical Pelton Turbine,1000RPM Vertical Pelton Turbine,1000RPM pelton water turbine generator |
||
Product Description
Vertical Pelton Hydro Turbine 300kW
Single nozzle impulse turbine designed for micro hydro power generation with precise flow control
Product Overview
The Pelton turbine is an impulse turbine specifically engineered for high-head hydroelectric applications, typically operating at heads greater than 1000 meters. This vertical configuration features a single nozzle design optimized for micro hydro power plants.
Key Components

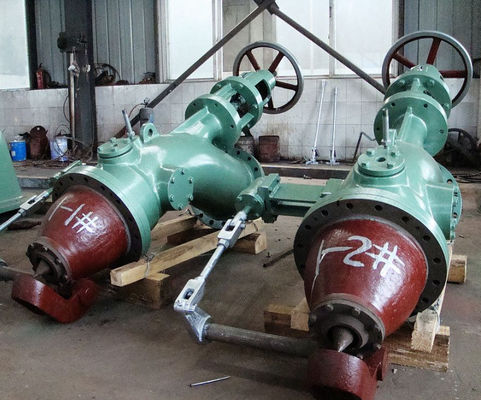

1. Nozzle and Flow Regulating Arrangement
The nozzle accelerates water to maximize kinetic energy before it strikes the turbine buckets. Flow regulation is achieved through a conical spear mechanism that moves axially to precisely control water volume.
2. Runner and Buckets
Features a rotating disc with evenly spaced buckets designed with splitters that divide water jets into two equal streams, deflecting water through 160-170 degrees for optimal energy transfer.
3. Casing
Protective outer covering that houses the turbine components and ensures operational safety.
4. Breaking Jet
Safety feature that stops runner rotation when water flow is interrupted, preventing inertial movement.
Technical Specifications
| Parameter | Specification |
|---|---|

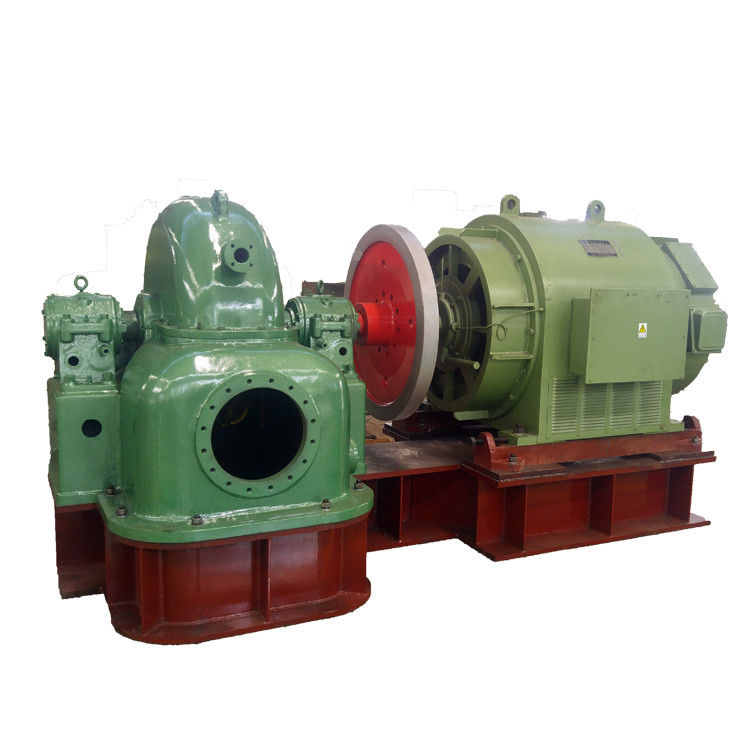

| Model Name | 300kW Pelton Hydro Turbine Generator |
| Water Head | 100m |
| Runner Diameter | 0.38m |
| Capacity | 300kW |
| Frequency | 50Hz |
| Generator Voltage | 400V |
| Layout Pattern | Vertical |
| Blade Material | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation | Brushless |
| Generator Insulation | F/F |
| Lifespan | 50 years |
Why Choose Our Hydro Turbines?
- Over 20 years of industry experience with 150+ installations annually
- Complete hydro power plant solutions from water to wire
- Extensive international project experience across multiple continents
- Custom design and manufacturing capabilities for various voltage requirements
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a dedicated hydro turbine generator manufacturer with over 20 years of experience. Our factory is located in Sichuan, easily accessible from Shuangliu Airport.
How do I select the right water turbine?
We require your specific parameters including water head, flow rate, voltage level, frequency, grid configuration, and automation requirements to provide the optimal solution.
Do you provide EPC services for hydro power plants?
Yes, we offer comprehensive engineering, procurement, and construction services including equipment design, manufacturing, and professional installation by our technical teams.
