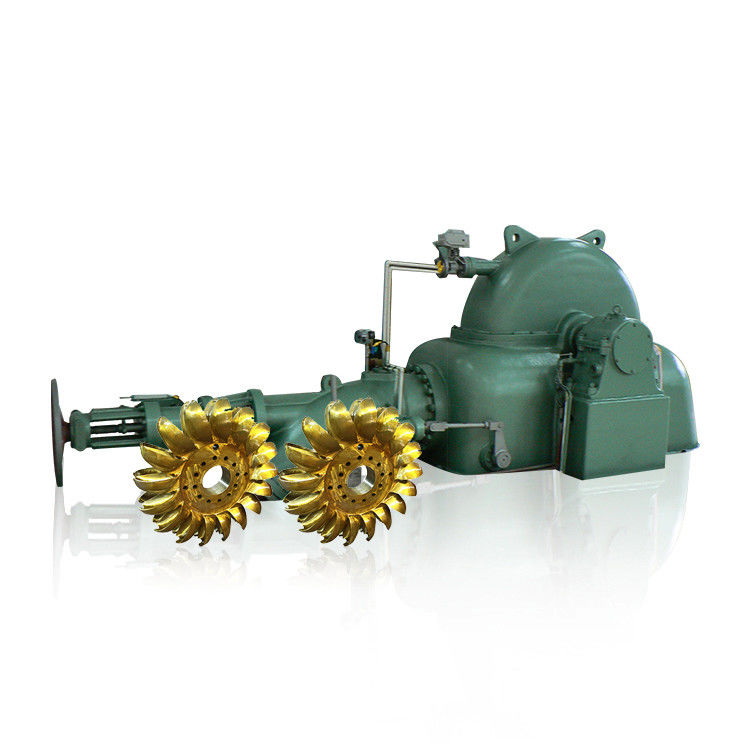

High Efficiency 98.0% Pelton Hydro Turbine with 250M Water Head and Stainless Steel Runner
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Certification: | ISO9000 |
| Model Number: | CJA-059 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 180 wordking days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+4 months |
|
Detail Information |
|||
| Runner: | Stainless Steel | Guide Vane: | Stainless Steel |
|---|---|---|---|
| Nozzle: | 1 | Layout: | Horizontal |
| Efficiency: | 98.0% | Frequency: | 50HZ/60Hz |
| Rotation: | 1000 RPM | Water Head: | 250M |
| Highlight: | Hydroelectric Pelton Hydro Turbine,Pelton Hydro Turbine Head 250m,50HZ micro hydro pelton wheel |
||
Product Description
Pelton Hydro Turbine for Micro Hydroelectric Generation
High-performance Pelton hydro turbine designed for micro, mini, and small-scale hydroelectric systems operating at 250-meter head with 50Hz grid compatibility.
Product Overview
This impact hydraulic turbine features a working jet center line tangent to the runner pitch circle, with runner blades composed of double bowl-shaped buckets. Available in horizontal and vertical shaft configurations, it's ideal for high-head, small-flow hydropower stations.
Technical Specifications
| Turbine Type | Water Head (m) | Discharge (m³/s) | Output (kw) | Speed (r/min) | Generator Type | Capacity (kw) | Unit Output (kw) |
|---|---|---|---|---|---|---|---|
| CJA237/475-1*7 | 200 | 0.232 | 383.2 | 750 | SFW320-8/850 | 320 | 358.3 |
| CJA237/475-1*7 | 220 | 0.243 | 440.5 | 750 | SFW400-8/850 | 400 | 414.1 |
| CJA237/475-1*7 | 240 | 0.254 | 502 | 750 | SFW500-8/850 | 500 | 474.4 |
| CJA237/475-1*7 | 260 | 0.264 | 572 | 1000 | SFW500-6/850 | 500 | 540.5 |
| CJA237/475-1*7 | 280 | 0.274 | 643.5 | 1000 | SFW630-6/990 | 630 | 608.1 |
| CJA237/475-1*7 | 300 | 0.284 | 714.6 | 1000 | SFW630-6/990 | 630 | 675.3 |
Key Components & Specifications
Rotation Direction: Clockwise (viewing from turbine end)
Number of Nozzles: 2
Nozzle Closing Time: 20-30 seconds
Deflector Response Time: 3-5 seconds
Runner Material: 0Cr13Ni5Mo
Number of Buckets: 18
Runner Process: Inblock Cast + Machining + Polishing
Main Shaft Material: 20SiMn (shared shaft with generator)
Bracket Type: Welded parts
Bracket Material: Q235
Nozzle Type: Hydraulic Pressure Operation
Why Choose Our Hydro Turbines?
- Over 20 years of industry experience with 150+ equipment installations annually
- Complete hydro power plant solutions from water to wire
- Extensive international project experience (France, Japan, USA, South Africa, Sri Lanka, Iran, Southeast Asia)
- Custom design and manufacturing of hydro generators with voltages up to 6.3KV and capacities exceeding 1000kw
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a hydro turbine generator manufacturer with over 20 years of experience. Our factory is located in Sichuan, easily accessible from Shuangliu Airport.
How do I choose the right water turbine?
We require water head, flow rate, voltage level, frequency, grid connection type, and automation level to provide the optimal solution.
Can you provide EPC services for hydro power plants?
Yes, we offer comprehensive EPC services including design, manufacturing, installation, and commissioning with our technical team.

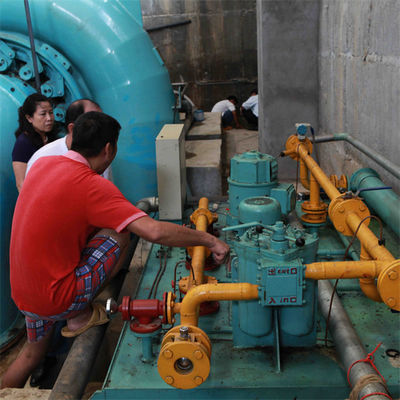

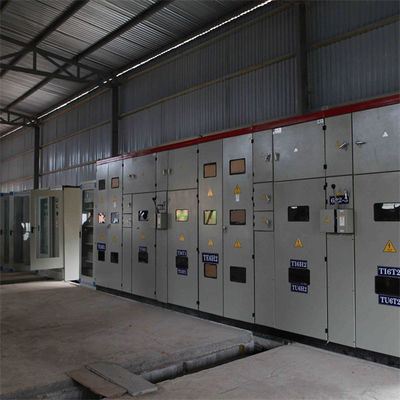

Product Images
About Hongya Power Generating Equipment
Founded in May 2003, Hongya Power Generating Equipment To Utilities Limited is a professional manufacturer of water turbine generator sets. Located near Mount WaWu and Emei, close to famous scenic spots including Leshan Giant Buddha, our facility spans 70,000 square meters with 35,000 square meters of construction area.
With approximately 200 employees and 25% dedicated to R&D, we operate over 100 manufacturing and testing machines. Our capabilities include Francis, Pelton, Turgo, and Kaplan turbines, synchronous generators, speed governors, brushless exciters, and hydraulic hardware for units under 20MW capacity.
We hold 11 patents, multiple official awards, and QMS ISO9001 (2008) certification. Our technical partnerships include Sichuan University, Xihua University, and Sichuan Provincial Machine R&D Research. We also serve as subcontractors for leading manufacturers like DEC: Chongqing Water Turbine Works Co., LTD.
Our comprehensive hydroelectric power plant services include project consulting, site management studies, equipment design and manufacturing, project management, installation guidance, commissioning, operation guidance, and maintenance.
HPGE products are deployed worldwide, serving over 300 hydro power plants with more than 600 turbine generator sets across 20+ Chinese provinces and international markets including Russia, Belarus, Turkey, Albania, Vietnam, Indonesia, Nepal, Laos, Sri Lanka, Cuba, and Brazil.
