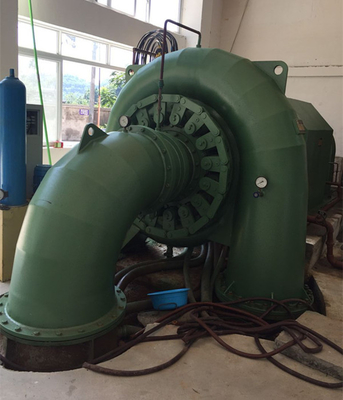

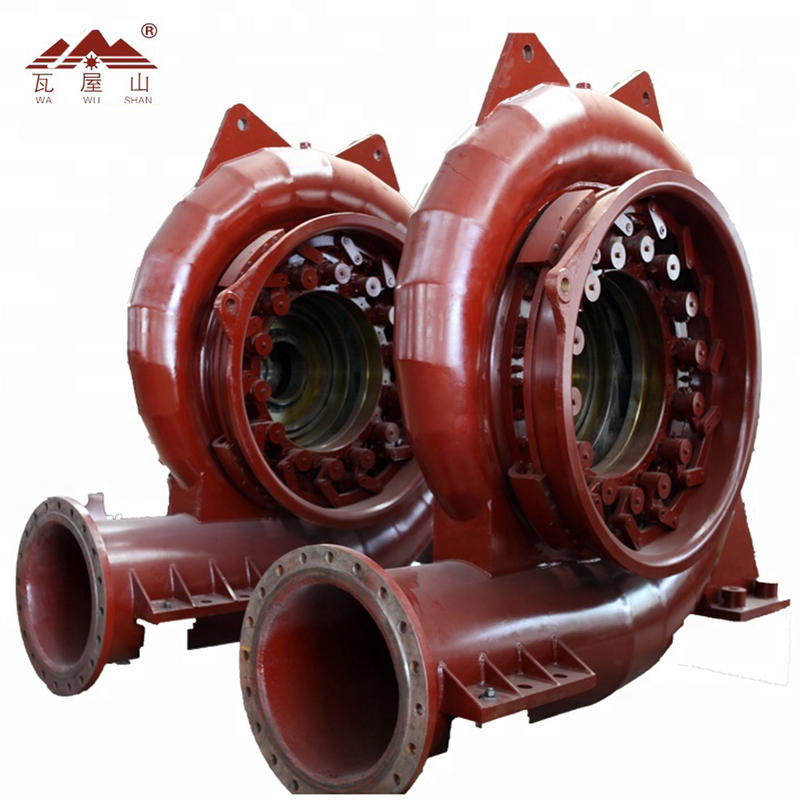

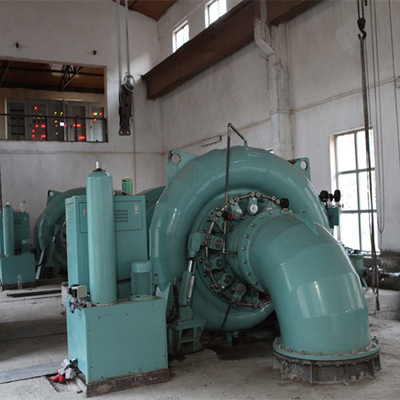

25m Water Head Francis Hydro Turbine Stainless Steel Runner 200kw 1.02m3/S

25m Water Head Francis Hydro Turbine Stainless Steel Runner 200kw 1.02m3/S

Product Details:

Place of Origin: Sichuan
Brand Name: Wawushan
Certification: ISO9000
Model Number: HLA-051

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: plywood
Delivery Time: 120-150 work days
Payment Terms: T/T
Supply Ability: 1 set 4-5 month
Get Best Price Contact Now

Detail Information

Water Head: 25m Water Flow: 1.02m³/s
Runner Material: Stainless Steel Efficiency: 89%-95%
Capacity: 200kw Frequency: 50HZ
Power Factor: 0.8 Rated Efficiency: 95%
Excitation Mode: Brushless Color: Red
High Light:

25m Water Head Francis Hydro Turbine

,

Francis Hydro Turbine 200kw

,

200kw francis pump turbine

Product Description

200kw francis hydro turbine for hydro power plant





Francis turbine also called mixed flow turbine and variable pressure turbine, is widely used in hydropower plants with low, middle and high water head ranging from 25m onwards to 550m commonly 15 to 300m. It has advantages such as: working stable, structure compact. Most import of all, the Francis water turbine we made would work with high efficiency of about 92% to 94.5%.



Francis turbines may be designed for a wide range of heads and flows. This, along with their high efficiency, has made them the most widely used turbine in the world. In contrast to the Pelton turbine, the Francis turbine operates at its best completely filled with water at all times. The turbine and the outlet channel may be placed lower than the lake or sea level outside, reducing the tendency for cavitation.


In addition to electrical production, they may also be used for pumped storage, where a reservoir is filled by the turbine (acting as a pump) driven by the generator acting as a large electrical motor during periods of low power demand, and then reversed and used to generate power during peak demand. These pump storage reservoirs act as large energy storage sources to store "excess" electrical energy in the form of water in elevated reservoirs.



No.
1 Water head 25m
2 Water flow 1.02m³/s
3 Capapcity 200kw
4 Efficiency 89%-95%
5 Frequency 50Hz
6 Power factor 0.8
7 Rated efficiency 95%
8 Excitation mode Brushless
9 Color Customized





25m Water Head Francis Hydro Turbine Stainless Steel Runner 200kw 1.02m3/S 0




25m Water Head Francis Hydro Turbine Stainless Steel Runner 200kw 1.02m3/S 1

Hongya Power Generating Equipment To Utilities Limited, is founded in May, 2003 as a professional manufacturer of mini hydraulic generator generator set.The total company land is about 70000 Square meters, construction part 35000 Square meters. The employee is about 200 workers, which the R&D part is 25%.



We can manufacturer Francis turbine, pelton turbine, turgo turbine, Kaplan turbine, synchronous generator, speed governor, brushless excitor, hydraulic hardware etc with unit turbine generator set capacity under 20MW.



Till now, HPGE offer a comprehensive range of hydroelectric power plant solutions that cover the entire scope of service including: Small hydro power project consultant; Site management studies; equipment Design; Hydroelectric equipment Manufacture; Project management; Installation guidance; Commission and start operation; Operation guidance; Hydroelectric equipment maintenance.



Products of HPGE are widely used in all around China, we cooperate with more than 300 hydro power plants with more than 600 turbine generators sets , including Francis turbine generator set, turgo turbine generator set, pelton turbine generator set, Kaplan turbine generator set, areas covering more than 20 provinces of China and also international markets such as Russia, Belarus, Turkey, Albania,Vietnam Indonesia, Nepal, Laos, Sri Lanka, Cuba and Brazil etc.

25m Water Head Francis Hydro Turbine Stainless Steel Runner 200kw 1.02m3/S 2

25m Water Head Francis Hydro Turbine Stainless Steel Runner 200kw 1.02m3/S 3

25m Water Head Francis Hydro Turbine Stainless Steel Runner 200kw 1.02m3/S 4



FAQ



Q1, Which turbine should I choose?

Please tell me the water head, flow rate, frequency, Total power you need

, voltage, on grid or off grid operation, we will propose a solution.



Q2, Can your factory provide all the equipment for hydropower generation?

Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems and more.



Q3, Can you do EPC for a hydroelectric power plant?

Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.



Q4,Is your company a trading company or a manufacturer?

We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Sichuan, where China's water conservancy and hydropower is most developed. Welcome to visit our factory in China.



Q5, What is an acceptable MOQ?

For this product, our acceptable MOQ is 1 set.



Q6,How long is the delivery time?

Delivery times range from 15 days to 6 months depending on the model you are purchasing.



Q7,Does your company have its own independent official website?

Of course, and we can see more information about our company and products on our official website.
