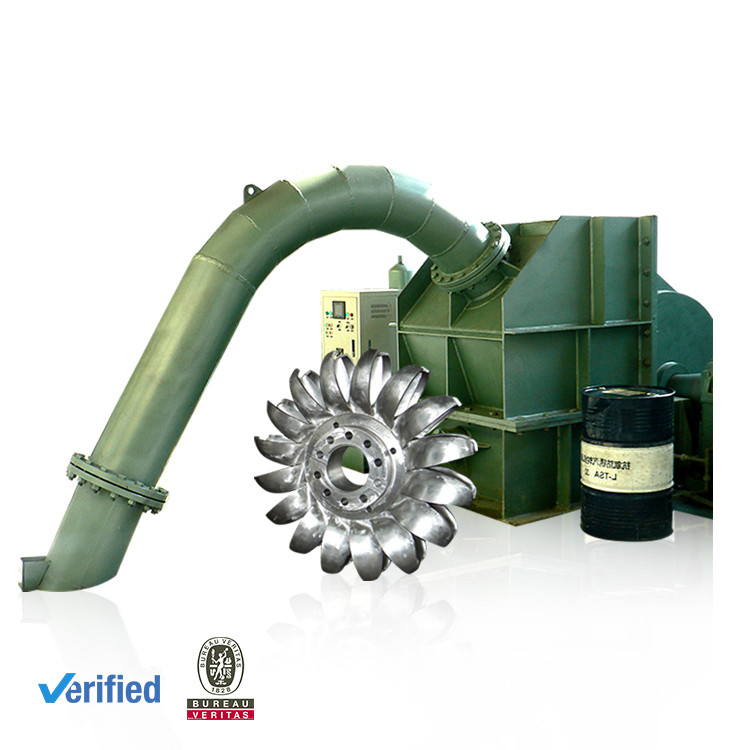

1250kw Horizontal Pelton Hydro Turbine 92% Efficiency 120m Water Head
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Model Number: | CJA-002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 180 wordking days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+4 months |
|
Detail Information |
|||
| Runner: | Stainless Steel | Guide Vane: | Stainless Steel |
|---|---|---|---|
| Nozzle: | Multi | Layout: | Vertical |
| Efficiency: | 92.0% | Runner Diameter: | 1.15m |
| Rotation: | 750RPM | Voltage: | 6000V |
| High Light: | 1250kw Horizontal Pelton Hydro Turbine,Pelton Hydro Turbine 92% Efficiency,1250kw high head water turbine |
||
Product Description
Horizontal 1250kw Pelton Turbine For Micro Hydro Power Plant
overview
Pelton turbine have two mount type of vertical and horizontal which is suitable for high water head site.
vertical shaft machines equipped with multi-jet collectors for an output up to ~20 MW and with runner diameters up to 4m.
horizontal shaft single or double runner Pelton turbines with one or two jets. These turbines operate economically with the lowest discharges.

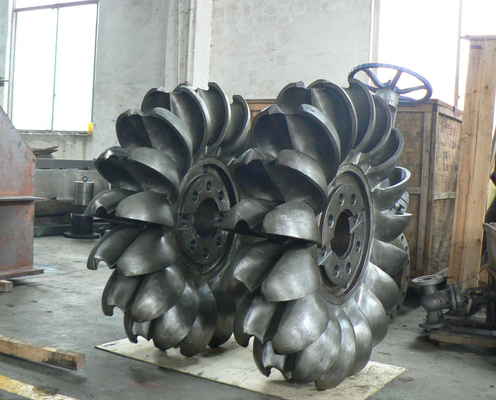

Hongya runner design,with buckets supported by two separate hoops, minimizes stress at bucket fixation, reducing inspection and maintenaqce
costs, and increasing plant aailability
A Pelton turbine or Pelton wheel is a type of turbine used frequently in hydroelectric plants. These turbines are generally used for sites with heads greater than 1000 meters.
When used for generating electricity, there is usually a water reservoir located at some height above the Pelton turbine. The water then flows through the penstock to specialized nozzles that introduce pressurized water to the turbine. To prevent irregularities in pressure, the penstock is fitted with a surge tank that absorbs sudden fluctuations in water that could alter the pressure.Unlike other types of turbines which are reaction turbines, the Pelton turbine is known as an impulse turbine. This simply means that instead of moving as a result of a reaction force, water creates some impulse on the turbine to get it to move.
Specification
| Name | 1250kw Pelton Hydro Turbine |
| Water Head | 120m |
| Runner Diameters | 1.15m |
| Capacity | 1500KW |
| Frequency | 50HZ |
| Generator Voltage | 6000V |
| Layout pattern | Horizontal |
| Material(blades) | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation | Brushless |
| Generator Insulation | F/F |
| Lifespan | 50 years |
Why choose us?
1. More than 20 years of industry experience, install commissioning more than 150 equipment each year
2. Provide complete proposal for hydro power plant from water to wire
3. Abundant foreign power plant project implementation experience such as France, Japan, USA, South Africa, Sri Lanka, Iran, Southeast Asia
4. Design and manufacture of hydro power generator with voltage 400V,6.3KV . capacity exceed 1000kw with 400V
FAQ
1. You are a trading company or a manufacture?
We are a hydro turbine generator manufacture with over 20 years of experiences, Our factory is in the Sichuan you will take 2 hours driving after you reach Shuangliu Airport, pay a visit to our factory you will know more about us.
2. What Kind of water turbine should I choose?
We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution
3: Can you do the EPC for the hydro power plant?
Yes, We can design, producing and install the equipment, we will dispatch technologist and workers to install the equipment.
