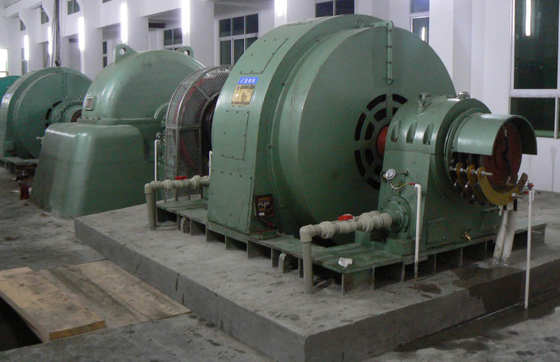

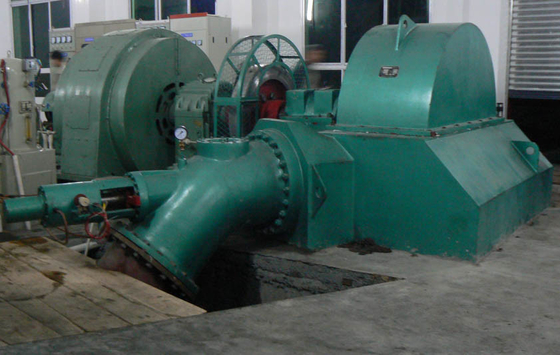

Brushless 91% Efficiency Horizontal Pelton Turbine 130m Water Head
91% Efficiency Horizontal Pelton Turbine
,Horizontal Pelton Turbine 130m Head
,91% Efficiency Hydroelectric Turbine Generator
Horizontal 500kw Pelton Hydroelectric Turbine Generator For Micro Hydro Power Plant
overview
1, Rotation Direction if viewing from the turbine end view. Clockwise
2, Number of Nozzle Z=2
3, Closing time of the nozzle = 20S to 30S
4, Response time of deflector = 3S to 5S
5, Runner
(1) Material 0Cr13Ni5Mo;
(2) Number of Bucket 18;
(3) Process Workmanship Inblock Cast+ Machineing + Polishing
6, Main Shaft
(1) Material 20SiMn share shaft with generator

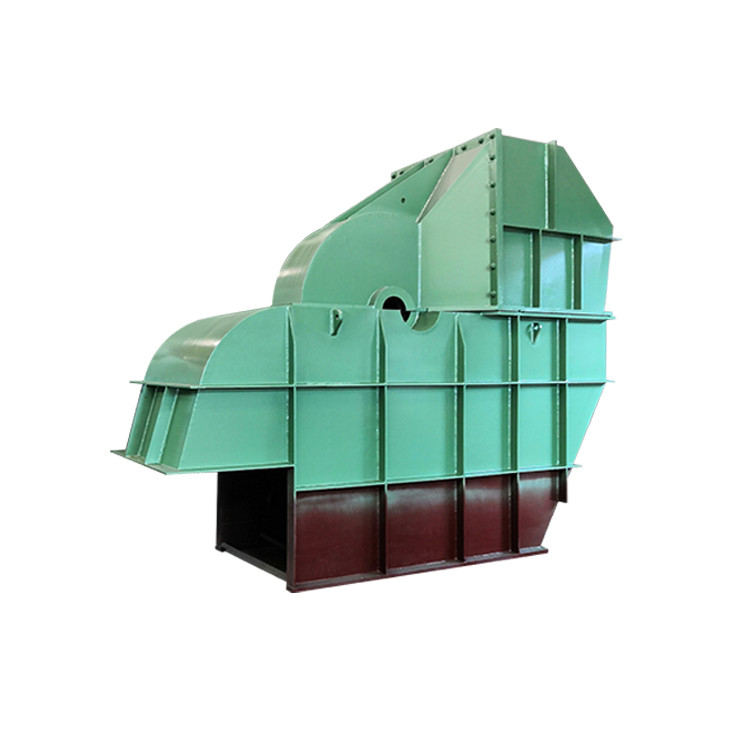

7, Bracket
(1) Type Welded parts
(2) Material Q235
8, Nozzle
(1) Type Hydraulic Pressure Operation
(2) Material 02Cr13;
(3) Number 2
Specification
| Name | 500kw Pelton Hydroelectric Turbine Generator |
| Water Head | 130m |
| Runner Diameters | 0.49m |
| Capacity | 500KW |
| Frequency | 50HZ |
| Generator Voltage | 400V |
| Layout pattern | vertical |
| Material(blades) | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation | Brushless |
| Generator Insulation | F/F |
| Lifespan | 50 years |
Why choose us?
1. More than 20 years of industry experience, install commissioning more than 150 equipment each year
2. Provide complete proposal for hydro power plant from water to wire
3. Abundant foreign power plant project implementation experience such as France, Japan, USA, South Africa, Sri Lanka, Iran, Southeast Asia
4. Design and manufacture of hydro power generator with voltage 400V,6.3KV . capacity exceed 1000kw with 400V
FAQ
1.You are a trading company or a manufacture?
We are a hydro turbine generator manufacture with over 20 years of experiences, Our factory is in the Sichuan you will take 2 hours driving after you reach Shuangliu Airport, pay a visit to our factory you will know more about us.
2.What Kind of water turbine should I choose?
We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution
3: Can you do the EPC for the hydro power plant?
Yes, We can design, producing and install the equipment, we will dispatch technologist and workers to install the equipment.
-
