1.5m3/S Francis Hydro Turbine Generator On Grid 375rpm-1000rpm

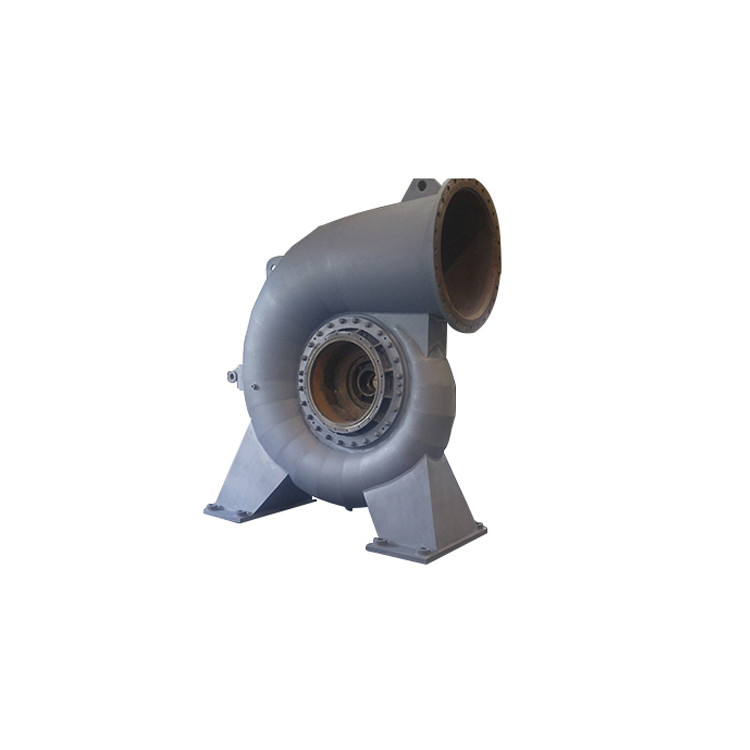

1.5m3/s Francis hydro turbine
,Francis Hydro Turbine Generator 375rpm 1000rpm
,francis water turbine 375rpm 1000rpm
800kw francis hydro turbine generator set 50Hz On-grid mini hydro power plant
The Francis turbine operate in water head from 15 to 600 meters, Their power output typically range from 10 to more than 700 megawatts. This makes them ideal for a pumped storage systems.

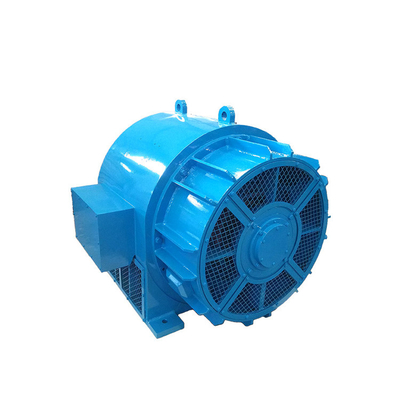

Hydro turbine generator is droved directly or indirectly by hydro turbine. The rotating speed is less than 1500r/min, with horizontal and vertical arrangement. Excitation mode with brushless and static silicon type.
| No. | ||
| 1 | Water head | 68 m |
| 2 | Water flow | 1.5 m³/s |
| 3 | Capapcity | 800kw |
| 4 | Efficiency | 90%-95% |
| 5 | Frequency | 50Hz |
| 6 | Power factor | 0.80 |
| 7 | Rated efficiency | 96% |
| 8 | Excitation mode | Brushless |
| 9 | Color | Customized |
We can manufacturer Francis turbine, pelton turbine, turgo turbine, Kaplan turbine, synchronous generator, speed governor, brushless excitor, hydraulic hardware etc with unit turbine generator set capacity under 20MW.
Till now, HPGE offer a comprehensive range of hydroelectric power plant solutions that cover the entire scope of service including: Small hydro power project consultant; Site management studies; equipment Design; Hydroelectric equipment Manufacture; Project management; Installation guidance; Commission and start operation; Operation guidance; Hydroelectric equipment maintenance.

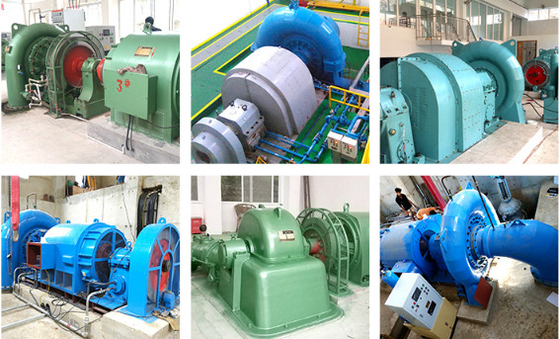

Products of HPGE are widely used in all around China, we cooperate with more than 300 hydro power plants with more than 600 turbine generators sets , including Francis turbine generator set, turgo turbine generator set, pelton turbine generator set, Kaplan turbine generator set, areas covering more than 20 provinces of China and also international markets such as Russia, Belarus, Turkey, Albania,Vietnam Indonesia, Nepal, Laos, Sri Lanka, Cuba and Brazil etc.
The main parameters:
1. Rated power: the capacity of the generator(Watt/ Kilowatt / Megawatt )
2. Rated voltage: the outgoing line voltage of generator
3. Power factor: the ratio of generator rated active power and rated apparent power.
4. Frequency: 50HZ or 60HZ
5. Shaft type: Vertical or horizontal shaft
The water turbine generator made by Fuchun are ranging from 50KW to 50MW.The rated voltage is 380V,400V,415V,440V,3300V,6300V,10500V,ect.The power factor is 0.8~0.95.
FAQ
Q1, Which turbine should I choose?
Please provide water head, flow rate, frequency
Q2, Can your factory provide all the equipment for hydropower generation?
Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels....
Q3,Is your company a trading company or a manufacturer?
We are a manufacturer
Q4, What is an acceptable MOQ?
1 set.
Q5 ,How long is the delivery time?
60 days to 6 months.
-
