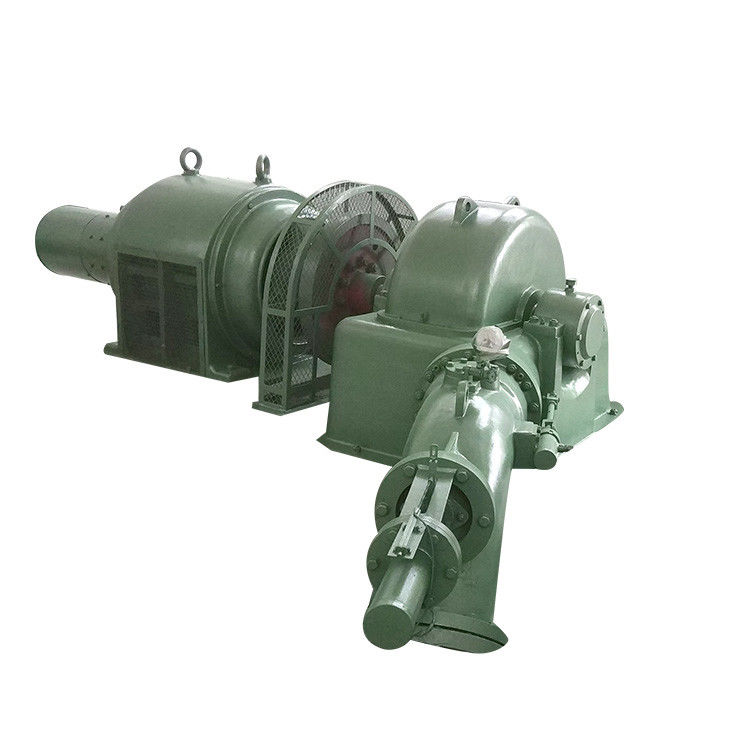

Vertical 800kw Micro Hydro Power Turgo Generator 30-300m Head
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Model Number: | XJ-003 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 120 wordking days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+4 months |
|
Detail Information |
|||
| Runner Material: | Stainless Steel | Body: | Steel Casting |
|---|---|---|---|
| Capacity: | 800kw | Runner Diameter: | 0.7 M |
| Flow: | 0.93 | Head: | 110m |
| Highlight: | 800kw Micro Hydro Power Turgo Generator,Vertical Micro Hydro Power Turgo Generator,Vertical micro hydro turgo turbine |
||
Product Description
800kw Turgo Micro Hydro Generator For Hydro Generator
overview
Turgo turbine is one of impulse turbine, applicable water head 30 to 300 meter. The center of jet flow with runner gyration plane angled 22.5°. the water flow contracted by the spray nozzle , flows entering one side of runner and comes out from other side. The structure is simple and easily inspected and maintained.
Advantages
Covers the boundary between Francis and Pelton
Limits Over-Pressure Effect over the penstock
Higher speed = weight and cost reduction
Maintains efficiency over a wide flow range
Superior abrasion resistance
Ease of operation and maintenance
Specification
| Name | 800kw Turgo Water Turbine Generator |
| Water Head | 110.0m |
| Runner Diameters | 0.7 m |
| Capacity2 | 400KW |
| Frequency | 50HZ |
| Generator Voltage | 400V |
| Layout pattern | vertical |
| Material(blades) | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation | Brushless |
| Generator Insulation | F/F |
| Lifespan | 50 years |
