350kw Turgo Impulse Turbine 400V For Hydro Power Plant Wide Flow Range
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Model Number: | XJ-006 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 120 wordking days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+4 months |
|
Detail Information |
|||
| Runner Material: | Stainless Steel | Body: | Steel Casting |
|---|---|---|---|
| Capacity: | 350kw | Runner Diameter: | 0.53 M |
| Flow: | 0.82 M³/s | Head: | 86 M |
| Highlight: | 350kw Turgo Impulse Turbine,Turgo Impulse Turbine 400V,400V impulse water turbine |
||
Product Description

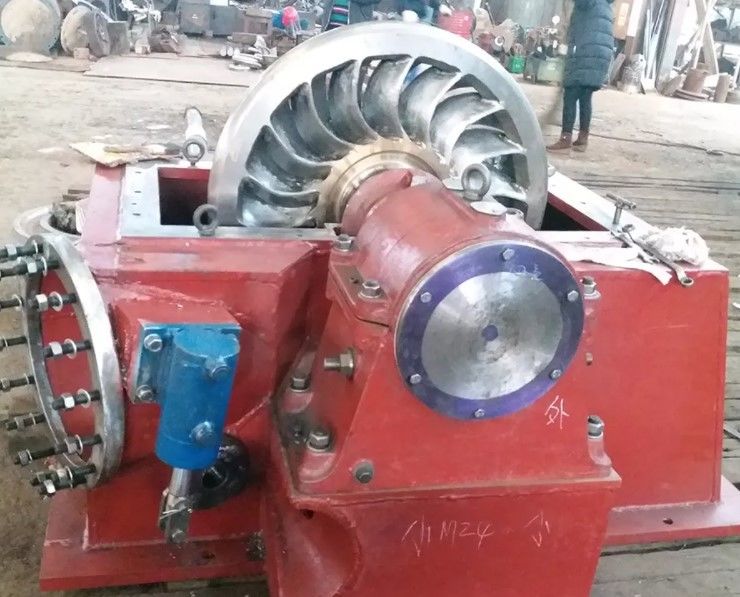

350kw Turgo water turine Generator For Hydro Power Plant
overview
Turgo turbine compared with tangential impulse or called pelton one has a lot of advantage such as higher specific speed,wide range of application as well as easy match directive driving generator,except wide range of application as well as easy match directive driving generator,except simple of construction, reliable operation,convenience in operation and maintenance etc.
Turgo or inclined-jet implulse turbine is a kind of impluse turbine. its nozzle make the angle of 22.5° with roating palne of the runner. water come from reservoir or forebay enters the nozzle via a penstock and the intake pipe becomes high veloocity jet, then the jet injects the vanes of runner. the water flow enters in the inlet of vane and go out of the vane. the turbine does a work. its output drives a generator via shaft and couipling.
Specification
| Name | 350kw Turgo water turine Generator |
| Water Head | 80.0m |
| Runner Diameters | 0.53 m |
| Capacity2 | 400KW |
| Frequency | 50HZ |
| Generator Voltage | 400V |
| Layout pattern | vertical |
| Material(blades) | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation | Brushless |
| Generator Insulation | F/F |
| Lifespan | 50 years |
Advantages
Covers the boundary between Francis and Pelton
Limits Over-Pressure Effect over the penstock
Higher speed = weight and cost reduction
Maintains efficiency over a wide flow range
Superior abrasion resistance
Ease of operation and maintenance
our service:
1: Exploration & Design of Hydropower Plant
2: Design & Manufacture of Turbine Generator
3: EPC of Electromechanical Equipment (water to wire system)
4: Pre-sale Service of Hydropower Plant
5: Training Service of Hydropower Plant
6: Operation & Technical Consultant of Hydropower Plant
7: Installation and Commission Guidance
8: Maintenance Service of Hydropower Plant
