500RPM Pelton High Head Water Turbine 60HZ 96.2% Efficiency
Pelton High Head Water Turbine
,500RPM High Head Water Turbine
,500RPM micro pelton turbine
60HZ 3000kw Pelton Hydro Turbine High Water Head
| Name | 3000KW Pelton Turbine |
| Water Head | 300 m |
| Water flow | 1.27 m³/s |
| Capacity | 3000 KW |
| Frequency | 50HZ |
| Generator Voltage | 6300 V |
| Layout pattern | vertical |
| Material(blades) | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation | Brushless |
| Generator Insulation | F |
| Lifespan | 45 years |
Hongya Power Generating Equipment To Utilities Limited, is about 70000 Square meters, construction part 35000 Square meters. The employee is about 200 workers, which the R&D part is 25%
-
Mini Water Head 250m Hydro Pelton Turbine 60HZ Off Gird 500RPM Pelton Wheel Turbine

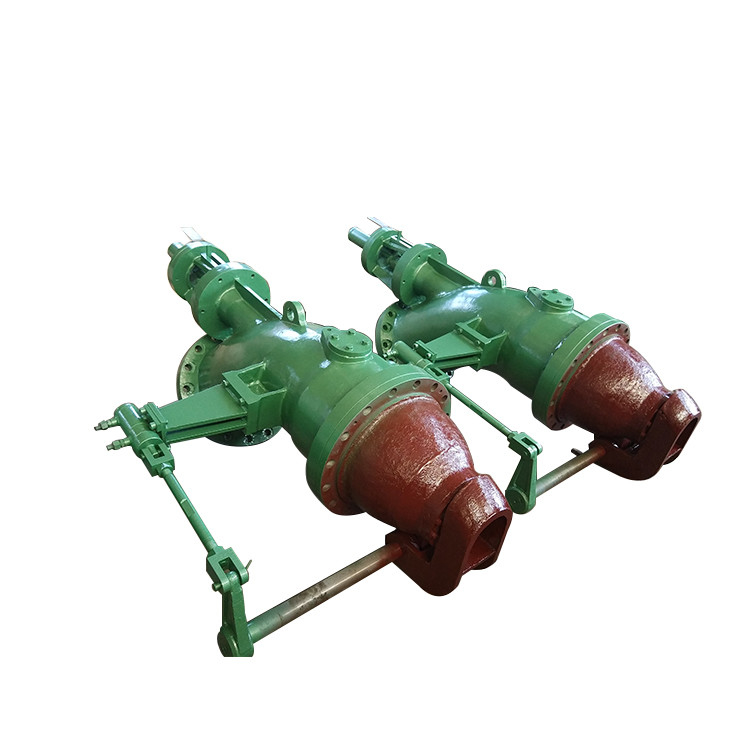

Hydro Pelton Turbine For Mini Water Head 250m 60HZ Off Gird 1. Nozzle and Flow Regulating Arrangement (Spear) Nozzle is used to increase the kinetic energy of the water that is going to strike the buckets or vanes attached to the runner. The quantity of water that strikes the buckets is controlled ...
-
Power Plant HPP Pelton Hydro Generator 2500kw 1500RPM With 1 Nozzle
Pelton Turbine For HPP Hdro Power Plant 2500kw The buckets are made by two hemispherical bowl joined together. Each buckets have a wall in between two hemispherical bowl called splitter. The splitter splits the jet of water striking the buckets into two equal parts and the jet of water comes out at ...
-
180m Water Head Pelton Hydro Turbine 550Kw 750kw Pelton Water Wheel Turbine
Hydro Pelton Turbine 550Kw 750kw Runner and Buckets Runner is a rotating part of the turbine. It is a circular disc on the periphery of which a number of buckets evenly spaced are fixed. The buckets are made by two hemispherical bowl joined together. Each buckets have a wall in between two ...
-
50HZ Small Pelton Hydro Turbine 180m Water Head On Gird Stainless Steel
Small Hpp Hydro Pelton Turbine for water head 180m 50HZ on gird 1. Nozzle and Flow Regulating Arrangement (Spear) Nozzle is used to increase the kinetic energy of the water that is going to strike the buckets or vanes attached to the runner. The quantity of water that strikes the buckets is ...
-
1200kw Pelton Hydro Turbine Single Nozzle Pelton Wheel Hydro Generator 120m Water Head
1200kw Hydro Pelton Turbine for water head 120m 50HZ on gird 1. Nozzle and Flow Regulating Arrangement (Spear) Nozzle is used to increase the kinetic energy of the water that is going to strike the buckets or vanes attached to the runner. The quantity of water that strikes the buckets is controlled ...
-
1650kw Pelton Wheel Micro Hydro Generator 400V 750RPM double Nozzle
1650kw Micro Pelton Hydro Turbine Generator For Mini Hydro Power Plant overview Pelton turbine also called a free-jet turbine or Pelton wheel, a type of impulse turbine. Water Passes through nozzles and strikes spoon-shaped buckets or cups arranged on the periphery of a runner, which causes the ...
-
Vertical 100m Head Pelton Hydro Turbine 50HZ On Gird 5000RPM
Hydro Pelton Turbine Head 100m Above 50HZ on gird Srilanka 1. Nozzle and Flow Regulating Arrangement (Spear) Nozzle is used to increase the kinetic energy of the water that is going to strike the buckets or vanes attached to the runner. The quantity of water that strikes the buckets is controlled by ...
-
750kw Pelton Micro Hydro Generator 90m Water Head 94% Efficiency
750kw Hydroelectric Generator Micro Water Hydro Pelton Turbine water head 90m Introduction Hydraulic Pelton Turbine Impact hydraulic turbine is a kind of hydraulic prime mover whose working jet center line is tangent to runner pitch circle, and runner blades are composed of a series of double bowl...
