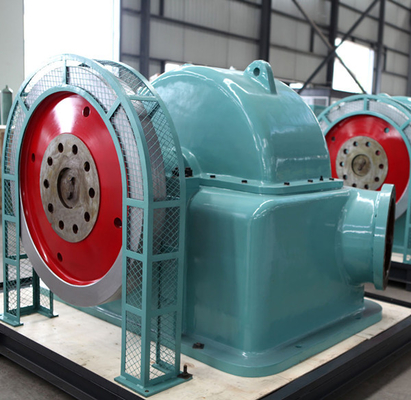

On Gird Off Gird 50HZ Pelton Turbine Generator 30m To 700m Water Head
Off Gird Pelton Turbine Generator
,50HZ Pelton Turbine Generator
,50HZ high head turbine
On Gird Off Gird 50HZ 50hz Water Head 30m To 700m
Technical Data
Type Pelton turbine generator
Model CJA475-L-74 / 2 * 6
Water head 190 m
Runner diameter 740 mm
Rated flow 0.34 m³ / sec
Rated speed 750 rpm
Runaway speed 1300 rpm
Rated efficiency 89%
Max. parts weight 1.6 ton
| Place of Origin: | Sichuan, China |
| Brand Name: | Customized |
| Warranty: | 1 year |
| Application: | Hydropower Plant |
| Certificate: | ISO9001 |
| Lifetime | 35 years |
Rotary part: including runner, water throw ring, etc. The runner is the heart of turbine. The properties of the runner are critical for the properties of the turbine. This runner is cast by stainless steel. The shape of bucket is like two half-spoon, there is a water dividing edge in the middle. The water dividing edge divide the water flow jetted to the bucket to two sides in order to reduce water collision lost.
There is a notch on the top of the bucket to avoid the bucket hamper the flow impulse
the following bucket. The water throw ring can stop the water overflow along shaft.
-
