Samll HPP High Head Water Turbine In Hydro Power Plant 550m Head Pelton Water Wheel Generator
Samll HPP High Head Water Turbine
,550m Head Turbine In Hydro Power Plant
,HPP Pelton Water Wheel Generator
Pelton Turbine Water Head 550m Hydro Power Plant Samll HPP

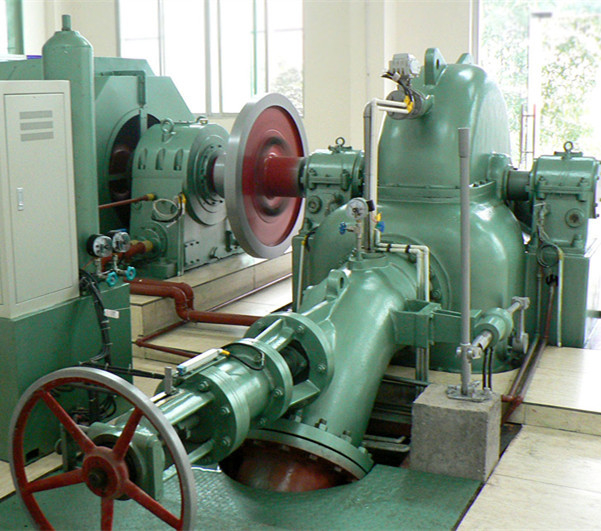

Machine house including house and cover. The house connects the main part in a whole. One of the bearings for deflector shaft is located on a truncated cone hole near the connection between the house and the distributor. Connect the cover and house by screws and put asbestos pad between them.
| Place of Origin: | Sichuan, China |
| Brand Name: | Customized |
| Warranty: | 1 year |
| Application: | Hydropower Plant |
| Certificate: | ISO9001 |
| Lifetime | 35 years |
Nozzle Apparatus: Consists of Distributing Parts and Connection
Distributing parts include: Jet elbow, needle, nozzle, support, balance piston, etc.
Jet elbow lead the pressure water to nozzle through support, the main function of the
support is to bear needle rod and avoid vortex.
The properties of the runner are critical for the properties of the turbine. This runner is cast by stainless steel. The shape of bucket is like two half-spoon, there is a water dividing edge in the middle. The water dividing edge divide the water flow jetted to the bucket to two sides in order to reduce water collision lost.
There is a notch on the top of the bucket to avoid the bucket hamper the flow impulse
the following bucket. The water throw ring can stop the water overflow along shaft.
-
