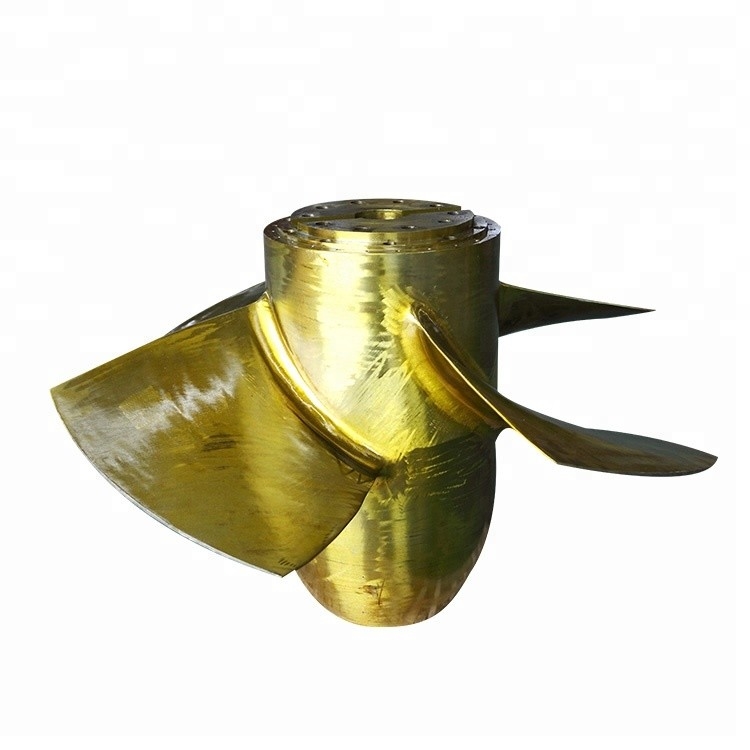

1.2m Kaplan Turbine Runner For Hydro Power Plant Stainless Steel
1.2m Kaplan Turbine Runner
,Kaplan Turbine Runner Stainless Steel
,1.2m hydro turbine runner
Kaplan Runner For Hydro Power Plant 1.2m

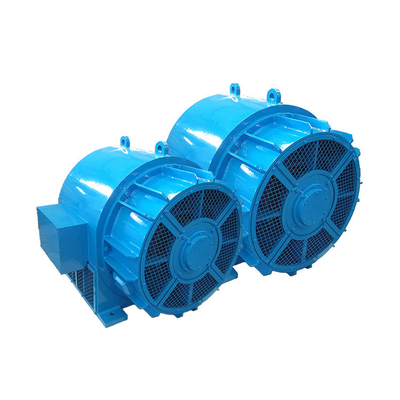

Hydro turbine generator is droved directly or indirectly by hydro turbine. The rotating speed is less than 1500r/min, with horizontal and vertical arrangement. Excitation mode with brushless and static silicon type.
| CJA237/475 Pelton turbine generator unit | Generator | Unit output (kw) | |||||
| Turbine | |||||||
| Type | Water head(m) | Discharge (m³/s) | Output(kw) | Speed (r/min) | Type | Capacity (kw) | |
| CJA237/475-1*7 | 200 | 0.232 | 383.2 | 750 | SFW320-8/850 | 320 | 358.3 |
| 220 | 0.243 | 440.5 | SFW400-8/850 | 400 | 414.1 | ||
| 240 | 0.254 | 502 | SFW500-8/850 | 500 | 474.4 | ||
| 260 | 0.264 | 572 | 1000 | SFW500-6/850 | 500 | 540.5 | |
| 280 | 0.274 | 643.5 | SFW630-6/990 | 630 | 608.1 | ||
| 300 | 0.284 | 714.6 | SFW630-6/990 | 630 | 675.3 | ||
| CJA237/475-W-90/1*4.5 | 275 | 0.086 | 176.3 | 750 | SFW160-8/650 | 160 | 162.9 |
| 300 | 0.0896 | 200.4 | SFW200-8/740 | 200 | 185.8 | ||
| 325 | 0.0932 | 225.8 | SFW200-8/740 | 200 | 209.3 | ||
| 350 | 0.0969 | 252.8 | SFW250-8/740 | 250 | 235.1 | ||
| 375 | 0.1005 | 279.8 | SFW250-8/740 | 250 | 260.2 | ||
| 400 | 0.103 | 309 | 1000 | SFW250-8/740 | 250 | 287.4 | |
| 425 | 0.1077 | 341.3 | SFW320-6/740 | 320 | 320.1 | ||
| 450 | 0.1098 | 368.4 | SFW320-6/740 | 320 | 345.5 | ||
| 500 | 0.119 | 496 | SFW500-6/850 | 500 | 456 | ||
| 600 | 0.131 | 650 | SFW630-6/990 | 630 | 610 | ||
| 700 | 0.141 | 823 | SFW800-6/990 | 800 | 770 | ||
| CJA237/475-W-90/1*7 | 260 | 0.261 | 572 | 750 | SFW500-8/850 | 500 | 526 |
| 280 | 0.271 | 636 | SFW630-8/990 | 630 | 585 | ||
| 300 | 0.28 | 700 | SFW630-8/990 | 630 | 651 | ||
| 320 | 0.289 | 766 | SFW800-8/990 | 800 | 712 | ||
| 340 | 0.298 | 834 | SFW800-8/990 | 800 | 775 | ||
| 360 | 0.307 | 899 | SFW800-8/990 | 800 | 836 | ||
| 380 | 0.315 | 968 | SFW1000-8/1180 | 1000 | 900 | ||
| 400 | 0.327 | 1093 | 1000 | SFW1000-6/1180 | 1000 | 1021.9 | |
| 420 | 0.335 | 1159 | SFW1000-6/1180 | 1000 | 1189 | ||
| 440 | 0.343 | 1287 | SFW1250-6/1180 | 1250 | 1203.3 | ||
| 460 | 0.351 | 1382 | SFW1250-6/1180 | 1250 | 1292.2 | ||
| 480 | 0.359 | 1476 | SFW1250-6/1180 | 1250 | 1380.1 | ||
| 500 | 0.366 | 1567 | SFW1600-6/1180 | 1600 | 1465.1 | ||
-
