1M Water Turbine Parts Pelton Runner In Hydro Power Plant
1M Water Turbine Parts
,Water Turbine Parts Pelton Runner
,1M Runner In Hydro Power Plant

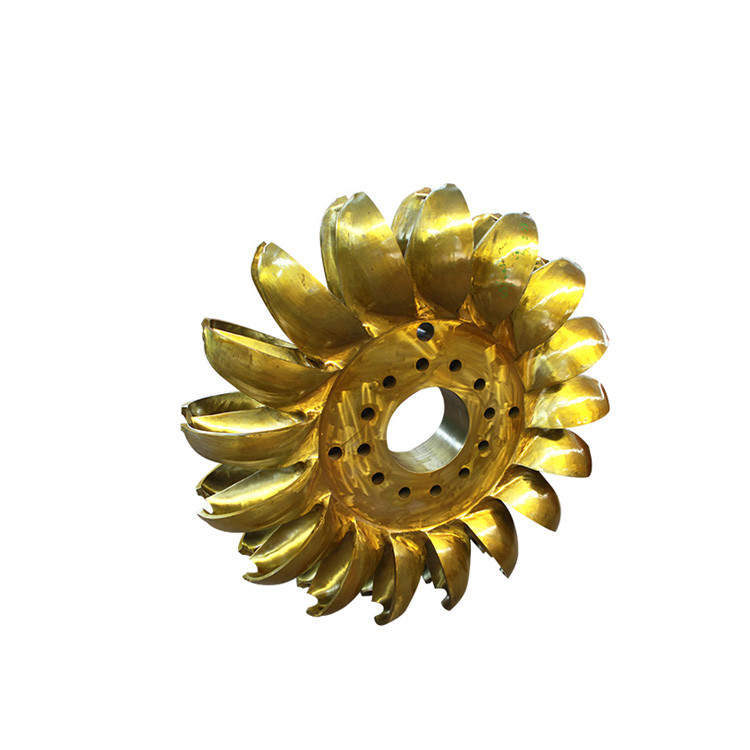

Pelton Runner For Hydro Power Plant
Hydroelectric generator consists of the following main parts. Dynamos generate pulsing direct current through the use of a commutator. Alternators generate alternating current. Mechanically a generator consists of a rotating part and a stationary part.
Why choose us?
1.More than 30 years of industry experience, install commissioning more than 150 equipment each year
2.Provide complete proposal for hydro power plant from water to wire
3.Abundant foreign power plant project implementation experience
4.Design and manufacture of hydro power generator with voltage 400V

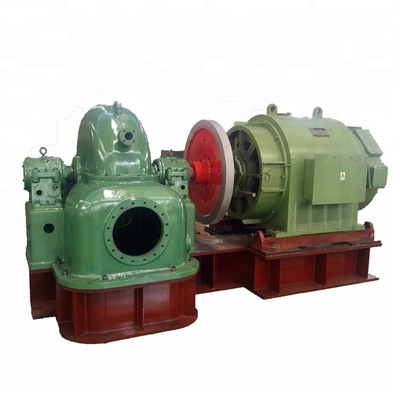

| CJA237/475 Pelton turbine generator unit | Generator | Unit output (kw) | |||||
| Turbine | |||||||
| Type | Water head(m) | Discharge (m³/s) | Output(kw) | Speed (r/min) | Type | Capacity (kw) | |
| CJA237/475-1*7 | 200 | 0.232 | 383.2 | 750 | SFW320-8/850 | 320 | 358.3 |
| 220 | 0.243 | 440.5 | SFW400-8/850 | 400 | 414.1 | ||
| 240 | 0.254 | 502 | SFW500-8/850 | 500 | 474.4 | ||
| 260 | 0.264 | 572 | 1000 | SFW500-6/850 | 500 | 540.5 | |
| 280 | 0.274 | 643.5 | SFW630-6/990 | 630 | 608.1 | ||
| 300 | 0.284 | 714.6 | SFW630-6/990 | 630 | 675.3 | ||
| CJA237/475-W-90/1*4.5 | 275 | 0.086 | 176.3 | 750 | SFW160-8/650 | 160 | 162.9 |
| 300 | 0.0896 | 200.4 | SFW200-8/740 | 200 | 185.8 | ||
| 325 | 0.0932 | 225.8 | SFW200-8/740 | 200 | 209.3 | ||
| 350 | 0.0969 | 252.8 | SFW250-8/740 | 250 | 235.1 | ||
| 375 | 0.1005 | 279.8 | SFW250-8/740 | 250 | 260.2 | ||
| 400 | 0.103 | 309 | 1000 | SFW250-8/740 | 250 | 287.4 | |
| 425 | 0.1077 | 341.3 | SFW320-6/740 | 320 | 320.1 | ||
| 450 | 0.1098 | 368.4 | SFW320-6/740 | 320 | 345.5 | ||
| 500 | 0.119 | 496 | SFW500-6/850 | 500 | 456 | ||
| 600 | 0.131 | 650 | SFW630-6/990 | 630 | 610 | ||
| 700 | 0.141 | 823 | SFW800-6/990 | ||||
-
