1750RPM High Head Water Turbine 150kw Horizontal Water Turbine For Electricity
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Model Number: | CJA-010 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 180 wordking days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+4 months |
|
Detail Information |
|||
| Runner: | Stainless Steel | Guide Vane: | Stainless Steel |
|---|---|---|---|
| Nozzle: | Single | Layout: | Vertical Or Horizontal |
| Efficiency: | 85%-95% | Runner Diameter: | 0.6 M |
| Rotation: | 1750RPM | Voltage: | 400V |
| Highlight: | High Head Water Turbine 150kw,Horizontal Water Turbine For Electricity,1750RPM hydro energy generator |
||
Product Description

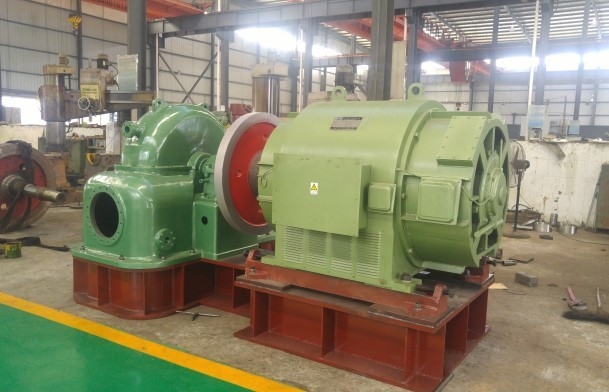

Horizontal 150kw Water Turbines For Electricity For Hydro Power Plant
overview
Pelton turbine have two mount type of vertical and horizontal which is suitable for high water head site.
vertical shaft machines equipped with multi-jet collectors for an output up to ~20 MW and with runner diameters up to 4m.
horizontal shaft single or double runner Pelton turbines with one or two jets. These turbines operate economically with the lowest discharges.

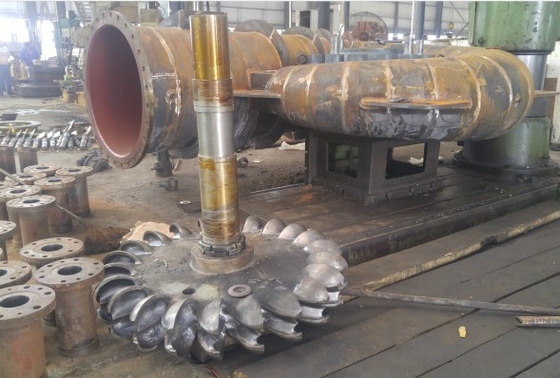

Hongya runner design,with buckets supported by two separate hoops, minimizes stress at bucket fixation, reducing inspection and maintenaqce
costs, and increasing plant ailability
A hydraulic turbine converts the energy of flowing water into mechanical energy. A hydroelectric generator converts this mechanical energy into electricity. The operation of a generator is based on the principles discovered by Faraday. He found that when a magnet is moved past a conductor, it causes electricity to flow. In a large generator, electromagnets are made by circulating direct current through loops of wire wound around stacks of magnetic steel laminations. These are called field poles, and are mounted on the perimeter of the rotor. The rotor is attached to the turbine shaft, and rotates at a fixed speed. When the rotor turns, it causes the field poles (the electromagnets) to move past the conductors mounted in the stator. This, in turn, causes electricity to flow and a voltage to develop at the generator output terminals."
Specification
| Name | 150kw Water Turbines |
| Water Head | 120m |
| Runner Diameters | 0.6 m |
| Capacity | 150KW |
| Frequency | 50HZ |
| Generator Voltage | 400V |
| Layout pattern | Horizontal |
| Material(blades) | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation | Brushless |
| Generator Insulation | F/F |
| Lifespan | 50 years |
Why choose us?
1. More than 20 years of industry experience, install commissioning more than 150 equipment each year
2. Provide complete proposal for hydro power plant from water to wire
3. Abundant foreign power plant project implementation experience such as France, Japan, USA, South Africa, Sri Lanka, Iran, Southeast Asia
4. Design and manufacture of hydro power generator with voltage 400V,6.3KV . capacity exceed 1000kw with 400V
FAQ
1.You are a trading company or a manufacture?
We are a hydro turbine generator manufacture with over 20 years of experiences, Our factory is in the Sichuan you will take 2 hours driving after you reach Shuangliu Airport, pay a visit to our factory you will know more about us.
2.What Kind of water turbine should I choose?
We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution
3: Can you do the EPC for the hydro power plant?
Yes, We can design, producing and install the equipment, we will dispatch technologist and workers to install the equipment.
