850kw Hydro Power Generator Water Turbine for high head and low discharge Brushless
850kw hydro power generator water turbine
,Brushless hydro power generator water turbine
,850kw high head low discharge turbine
850kw hydro power generator water turbine For Hydro Power Plant
overview

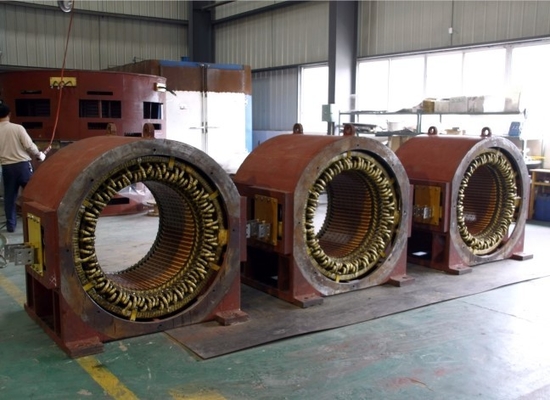

A hydraulic turbine converts the energy of flowing water into mechanical energy. A hydroelectric generator converts this mechanical energy into electricity. The operation of a generator is based on the principles discovered by Faraday. He found that when a magnet is moved past a conductor, it causes electricity to flow. In a large generator, electromagnets are made by circulating direct current through loops of wire wound around stacks of magnetic steel laminations. These are called field poles, and are mounted on the perimeter of the rotor. The rotor is attached to the turbine shaft, and rotates at a fixed speed. When the rotor turns, it causes the field poles (the electromagnets) to move past the conductors mounted in the stator. This, in turn, causes electricity to flow and a voltage to develop at the generator output terminals."
Specification
| Name | 850kw hydro power generator |
| Water Head | 119.0m |
| Runner Diameters | 1.15 m |
| Capacity2 | 850KW |
| Frequency | 50HZ |
| Generator Voltage | 400V |
| Layout pattern | vertical |
| Material(blades) | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation | Brushless |
| Generator Insulation | F/F |
| Lifespan | 50 years |
Advantages
Covers the boundary between Francis and Pelton
Limits Over-Pressure Effect over the penstock
Higher speed = weight and cost reduction
Maintains efficiency over a wide flow range
Superior abrasion resistance
Ease of operation and maintenance
our service:
1: Exploration & Design of Hydropower Plant
2: Design & Manufacture of Turbine Generator
3: EPC of Electromechanical Equipment (water to wire system)
4: Pre-sale Service of Hydropower Plant
5: Training Service of Hydropower Plant
6: Operation & Technical Consultant of Hydropower Plant
7: Installation and Commission Guidance
8: Maintenance Service of Hydropower Plant
-
