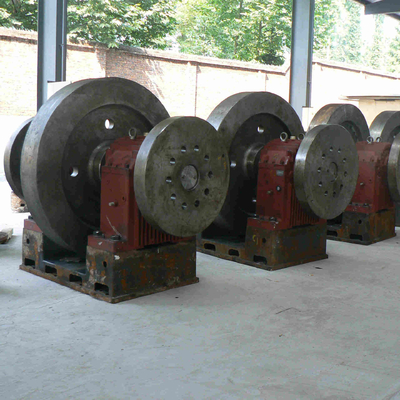

750RPM Pelton Hydro Generator 600kw 100m Water Head 94% Efficiency
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Certification: | ISO9000 |
| Model Number: | CJA-051 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 180 wordking days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+4 months |
|
Detail Information |
|||
| Runner: | Stainless Steel | Guide Vane: | Stainless Steel |
|---|---|---|---|
| Nozzle: | Single | Layout: | Horizontal |
| Efficiency: | 96.3.0% | Frequency: | 50HZ/60Hz |
| Rotation: | 750RPM | Water Head: | 100m |
| Water Flow: | 0.76 M³/s | ||
| High Light: | 750RPM Pelton Hydro Generator,Pelton Hydro Turbine 600kw,pelton turbine generator 100m |
||
Product Description
Pelton Hydro Generator 600kw Water Head 94% Efficiency

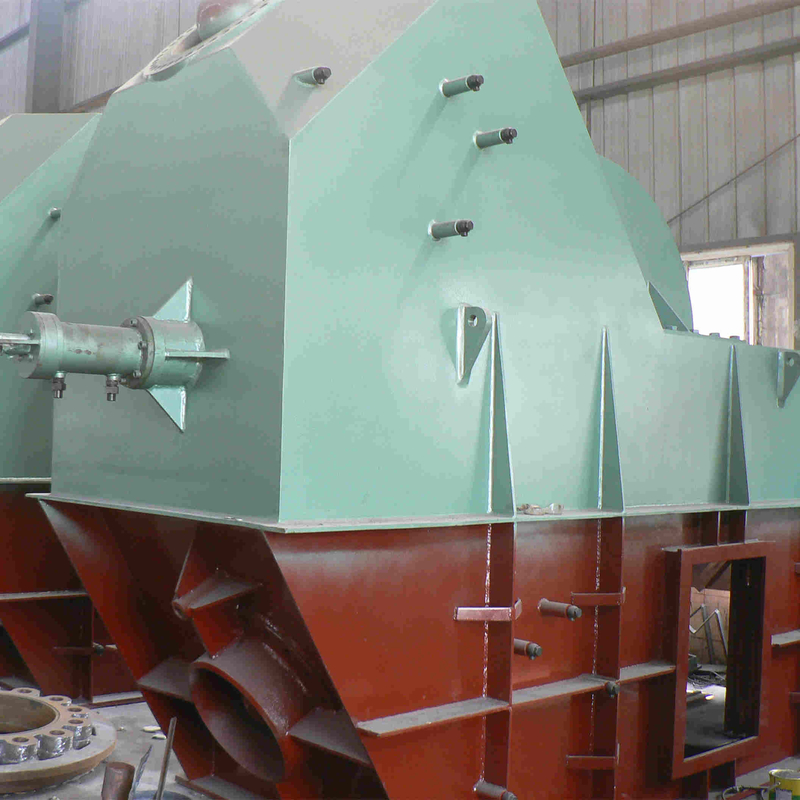

Introduction Hydraulic Pelton Turbine
Impact hydraulic turbine is a kind of hydraulic prime mover whose working jet center line is tangent to runner pitch circle, and runner blades are composed of a series of double bowl-shaped buckets. According to the arrangement of the main shaft, it is divided into two kinds of horizontal shaft and vertical shaft, no matter which kind of runner is always located in the atmosphere. This type of turbine is suitable for high-head and small-flow hydropower stations.
Runner and Buckets
Runner is a rotating part of the turbine. It is a circular disc on the periphery of which a number of buckets evenly spaced are fixed.
The buckets are made by two hemispherical bowl joined together. Each buckets have a wall in between two hemispherical bowl called splitter.
The splitter splits the jet of water striking the buckets into two equal parts and the jet of water comes out at the outer edge of the bucket.
The buckets are designed in such a way that the jet of water strike the buckets, deflected through 160 degree to 170 degree.
The buckets of the Pelton turbine are made up of cast iron, cast steel bronze or stainless steel.
Breaking jet
When the jet of water is completely closed by pushing the spear in forward direction than the amount of water striking the runner becomes zero. But still the runner keeps moving due to the inertia of the runner.
In order to stop the runner in the shortest possible time a small nozzle is provided which directs the jet of water at the back of the vanes. This jet of water used to stop the runner of the turbine is called breaking jet.
| CJA237/475 Pelton turbine generator unit | Generator | Unit output (kw) | |||||
| Turbine | |||||||
| Type | Water head(m) | Discharge (m³/s) | Output(kw) | Speed (r/min) | Type | Capacity (kw) | |
| CJA237/475-1*7 | 200 | 0.232 | 383.2 | 750 | SFW320-8/850 | 320 | 358.3 |
| 220 | 0.243 | 440.5 | SFW400-8/850 | 400 | 414.1 | ||
| 240 | 0.254 | 502 | SFW500-8/850 | 500 | 474.4 | ||
| 260 | 0.264 | 572 | 1000 | SFW500-6/850 | 500 | 540.5 | |
| 280 | 0.274 | 643.5 | SFW630-6/990 | 630 | 608.1 | ||
| 300 | 0.284 | 714.6 | SFW630-6/990 | 630 | 675.3 | ||
| CJA237/475-W-90/1*4.5 | 275 | 0.086 | 176.3 | 750 | SFW160-8/650 | 160 | 162.9 |
| 300 | 0.0896 | 200.4 | SFW200-8/740 | 200 | 185.8 | ||
| 325 | 0.0932 | 225.8 | SFW200-8/740 | 200 | 209.3 | ||
| 350 | 0.0969 | 252.8 | SFW250-8/740 | 250 | 235.1 | ||
| 375 | 0.1005 | 279.8 | SFW250-8/740 | 250 | 260.2 | ||
| 400 | 0.103 | 309 | 1000 | SFW250-8/740 | 250 | 287.4 | |
| 425 | 0.1077 | 341.3 | SFW320-6/740 | 320 | 320.1 | ||
| 450 | 0.1098 | 368.4 | SFW320-6/740 | 320 | 345.5 | ||
| 500 | 0.119 | 496 | SFW500-6/850 | 500 | 456 | ||
| 600 | 0.131 | 650 | SFW630-6/990 | 630 | 610 | ||
| 700 | 0.141 | 823 | SFW800-6/990 | 800 | 770 | ||
| CJA237/475-W-90/1*7 | 260 | 0.261 | 572 | 750 | SFW500-8/850 | 500 | 526 |
| 280 | 0.271 | 636 | SFW630-8/990 | 630 | 585 | ||
| 300 | 0.28 | 700 | SFW630-8/990 | 630 | 651 | ||
| 320 | 0.289 | 766 | SFW800-8/990 | 800 | 712 | ||
| 340 | 0.298 | 834 | SFW800-8/990 | 800 | 775 | ||
| 360 | 0.307 | 899 | SFW800-8/990 | 800 | 836 | ||
| 380 | 0.315 | 968 | SFW1000-8/1180 | 1000 | 900 | ||
| 400 | 0.327 | 1093 | 1000 | SFW1000-6/1180 | 1000 | 1021.9 | |
| 420 | 0.335 | 1159 | SFW1000-6/1180 | 1000 | 1189 | ||
| 440 | 0.343 | 1287 | SFW1250-6/1180 | 1250 | 1203.3 | ||
| 460 | 0.351 | 1382 | SFW1250-6/1180 | 1250 | 1292.2 | ||
| 480 | 0.359 | 1476 | SFW1250-6/1180 | 1250 | 1380.1 | ||
| 500 | 0.366 | 1567 | SFW1600-6/1180 | 1600 | 1465.1 | ||

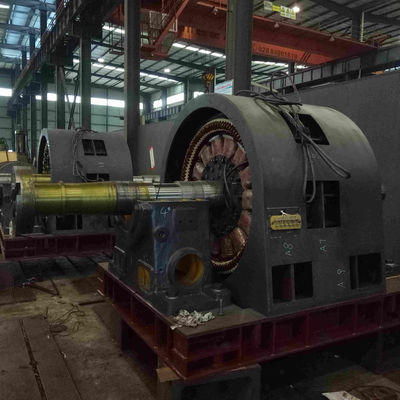

Specification
| Name | 750kw Pelton Hydroelectric Turbine Generator |
| Water Head | 100 m |
| Runner Diameters | 0.65m |
| Capacity | 600KW |
| Frequency | 50HZ |
| Generator Voltage | 400V |
| Layout pattern | vertical |
| Material(blades) | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation | Brushless |
| Generator Insulation | F/F |
| Lifespan | 50 years |
Why choose us?
1. More than 20 years of industry experience, install commissioning more than 150 equipment each year
2. Provide complete proposal for hydro power plant from water to wire
3. Abundant foreign power plant project implementation experience such as France, Japan, USA, South Africa, Sri Lanka, Iran, Southeast Asia
4. Design and manufacture of hydro power generator with voltage 400V,6.3KV . capacity exceed 1000kw with 400V
FAQ
1.You are a trading company or a manufacture?
We are a hydro turbine generator manufacture with over 20 years of experiences, Our factory is in the Sichuan you will take 2 hours driving after you reach Shuangliu Airport, pay a visit to our factory you will know more about us.
2.What Kind of water turbine should I choose?
We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution
3: Can you do the EPC for the hydro power plant?
Yes, We can design, producing and install the equipment, we will dispatch technologist and workers to install the equipment.
Hongya Power Generating Equipment To Utilities Limited, is founded in May, 2003 as a professional manufacturer of water turbine generator set. The company is located in a great place which surrounded by Mount WaWu and Emei, a place closed to many famous scenic spots such as Leshan Giant Buddha. The total company land is about 70000 Square meters, construction part 35000 Square meters. The employee is about 200 workers, which the R&D part is 25%.
We get more than 100 sets machines for manufacturer process including processing machine and test machine. We can manufacturer Francis turbine, pelton turbine, turgo turbine, Kaplan turbine, synchronous generator, speed governor, brushless excitor, hydraulic hardware etc with unit turbine generator set capacity under 20MW.
The company get 11 patents and many awards from the official authority, we also get certificate of QMS ISO9001 (2008).Our company get good technical and development cooperation with Sichuan university, Xihua university and Sichuan provincial machine R&D research. We are subcontractor of some famous water turbine generator manufacturer such as DEC: Chongqing Water Turbine Works co., LTD, etc.
We get good technical support from university and the contractor which enable us a better manufacturer with strong technology skill and rich project experiences.
Till now, HPGE offer a comprehensive range of hydroelectric power plant solutions that cover the entire scope of service including: Small hydro power project consultant; Site management studies; equipment Design; Hydroelectric equipment Manufacture; Project management; Installation guidance; Commission and start operation; Operation guidance; Hydroelectric equipment maintenance.
Products of HPGE are widely used in all around China, we cooperate with more than 300 hydro power plants with more than 600 turbine generators sets , including Francis turbine generator set, turgo turbine generator set, pelton turbine generator set, Kaplan turbine generator set, areas covering more than 20 provinces of China and also international markets such as Russia, Belarus, Turkey, Albania,Vietnam Indonesia, Nepal, Laos, Sri Lanka, Cuba and Brazil etc.
