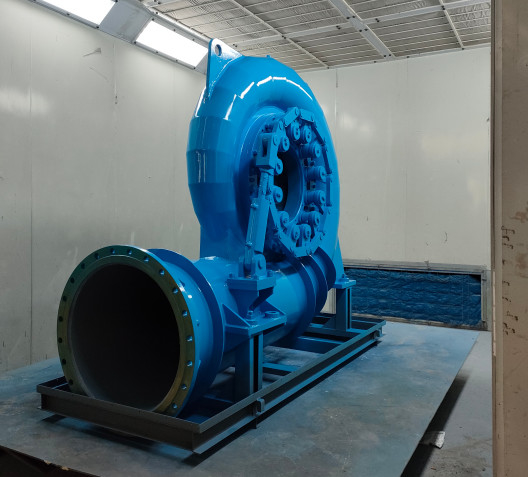

1.96m3 1000kw Horizontal Water Turbine Generator Hydro Turbine
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Model Number: | HLA-030 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 180 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+4 months |
|
Detail Information |
|||
| Product Name: | 1000kw Francis Turbine | Runner Material: | Stainless Steel |
|---|---|---|---|
| Layout Pattern: | Vertical | Guide Vane: | Stainless Steel |
| Runner Diameter: | 0.9 M | Efficiency: | 90.6% |
| Water Head: | 65m | Flow Meter: | 1.96m3 |
| High Light: | 1.96m3 horizontal Hydro Turbine,1.96m3 horizontal water turbine,1000kw horizontal water turbine generator |
||
Product Description
1000kw Hydraulic Turbine for Hydro Power Plant
Overview
Francis turbine employs a runner through fixed buckets generally nine or more. The water is introduced overhead the runner and all over it and then falls over initiating the spin. Other significant components are wicket gates, scroll cases, and draft tubes beside the runner. Francis turbine supports the inward radial water flow. In the advanced Francis turbines, the flow enters inward radially but exits in a parallel direction and is termed as mixed flow.
Specification
| Name | 1000kw Water Turbine Generator |
| Water Head | 65m or customized |
| Runner Diameters | 1.96m |
| Capacity | 1000KW |
| Frequency | 50HZ |
| Generator Voltage | 400V |
| Layout pattern | Horizontal |
| Material(blades) | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation | Brushless |
| Generator Insulation | F/F |
| Lifespan | 30~50 years |
Why choose us?
1. More than 20 years of industry experience, install commissioning more than 150 equipment each year
2. Provide complete proposal for hydro power plant from water to wire
3. Abundant foreign power plant project implementation experience such as France, Japan, USA, South Africa, Sri Lanka, Iran, Southeast Asia
4. Design and manufacture of hydro power generator with voltage 400V,6.3KV . capacity exceed 1000kw with 400V
FAQ
1.You are a trading company or a manufacture?
We are a hydro turbine generator manufacture with over 20 years of experiences, Our factory is in the Sichuan you will take 2 hours driving after you reach Shuangliu Airport, pay a visit to our factory you will know more about us.
2.What Kind of water turbine should I choose?
We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution
3: Can you do the EPC for the hydro power plant?
Yes, We can design, producing and install the equipment, we will dispatch technologist and workers to install the equipment.
