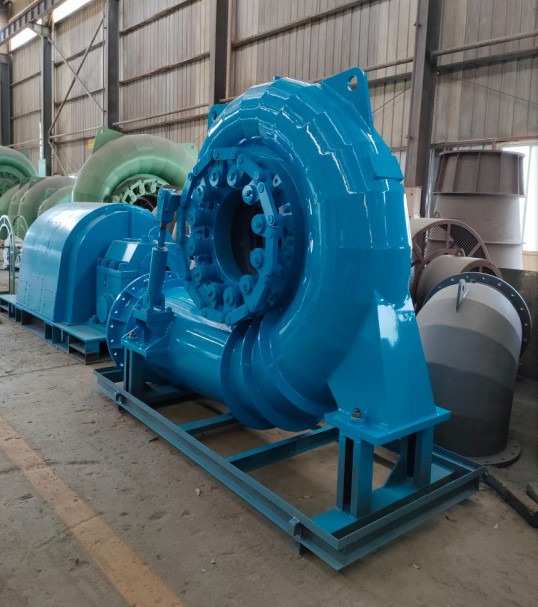

Horizontal Francis Hydro Turbine 500kw Water Turbine Generator
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Model Number: | HLA-033 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 180 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+4 months |
|
Detail Information |
|||
| Product Name: | 500kw Francis Turbine | Runner Material: | Stainless Steel |
|---|---|---|---|
| Layout Pattern: | Horizontal | Guide Vane: | Stainless Steel |
| Runner Diameter: | 0.9 M | Efficiency: | 90.6% |
| Water Head: | 45m | Flow Meter: | 1.46 M3 |
| High Light: | horizontal Francis Hydro Turbine,Francis Hydro Turbine 500kw,500kw water turbine generator |
||
Product Description

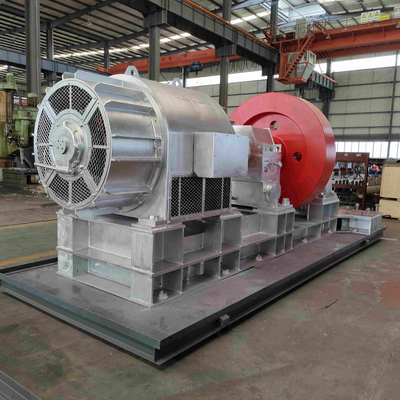

horizontal water turbine generator 500kw with counter weight
Overview
The Francis turbine is a sort of response turbine, a classification of turbine wherein working liquid goes into the turbine under enormous tension and energy is extricated by the turbine bladesfrom the working liquid. A part of the fluid vitality is transferred due to a change in pressure, while the remaining energy is extracted by the volute turbine casing. The water leaving the outlet at a low speed and low whirl has only minor kinetic and potential vitality left. The outlet tube of the turbine is molded to decelerate the water stream and regain the pressure.
Specification
| Name | 500kw Water Turbine Generator |
| Water Head | 45m or customized |
| Runner Diameters | 1.96m |
| Capacity | 500KW |
| Frequency | 50HZ |
| Generator Voltage | 400V |
| Layout pattern | Horizontal |
| Material(blades) | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation | Brushless |
| Generator Insulation | F/F |
| Lifespan | 30~50 years |
Why choose us?
1. More than 20 years of industry experience, install commissioning more than 150 equipment each year
2. Provide complete proposal for hydro power plant from water to wire
3. Abundant foreign power plant project implementation experience such as France, Japan, USA, South Africa, Sri Lanka, Iran, Southeast Asia
4. Design and manufacture of hydro power generator with voltage 400V,6.3KV . capacity exceed 1000kw with 400V
FAQ
1.You are a trading company or a manufacture?
We are a hydro turbine generator manufacture with over 20 years of experiences, Our factory is in the Sichuan you will take 2 hours driving after you reach Shuangliu Airport, pay a visit to our factory you will know more about us.
2.What Kind of water turbine should I choose?
We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution
3: Can you do the EPC for the hydro power plant?
Yes, We can design, producing and install the equipment, we will dispatch technologist and workers to install the equipment.
