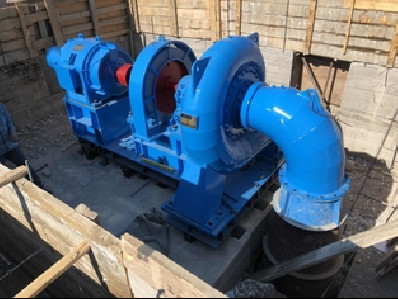

Horizontal Francis Hydraulic Turbine Brushless 100kw
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Model Number: | HLA-001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 180 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+4 months |
|
Detail Information |
|||
| Product Name: | Francis Wheel Turbine | Runner Material: | Stainless Steel |
|---|---|---|---|
| Layout Pattern: | Horizontal Or Vertical | Guide Vane: | Stainless Steel |
| Runner Diameter: | 0.5m-4m | Efficiency: | 85%-95% |
| Water Head: | 20m | Flow Meter: | 0.65 M3 |
| High Light: | 20m Head Francis Hydraulic Turbine,Horizontal Francis Hydro Generator,Brushless Francis Hydraulic Turbine |
||
Product Description
Horizontal Francis Hydraulic Turbine 100kw Hydro Generator
Overview
Francis turbines filled the huge gap between Pelton and Kaplan and were widely used. They operate in the water head range of 10 to 600 meters and are mainly used for power generation. Their power output can be calculated based on head and flow velocity, and typically ranges from 10 MW to over 700 MW. An obvious advantage of Francis turbines over other water turbines is that they can also be used as water pumps. This makes them an ideal choice for pumped hydro storage systems.
Francis turbines are the most widely used type of turbine, accounting for about 60% of the world's hydroelectric power generation.
Hongya Hydropower continuously invests in research and development to improve turbine efficiency and has developed specific product enhancements to improve
machine performance.
Over the past 20 years, we have successfully completed multiple installations of more than 300 Francis turbines.
Francis turbines are very capable of withstanding the high mechanical stresses caused by the high head, which consists of a volute, cable-stayed turbine, guide vanes, runner and wake turbine.
The wheel configuration can be adjusted to obtain the highest level of efficiency across its entire range of applications.
Specification
| Name | 100kw Water Turbine Generator |
| Water Head | 10m or customized |
| Runner Diameters | 0.45m-1m |
| Power | 100KW |
| Frequency | 50HZ/60HZ |
| Generator Voltage | 400V |
| Layout pattern | Horizontal or Vertical |
| Material(blades) | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation | Brushless |
| Generator Insulation | F/F |
| Lifespan | 50 years |
Why choose us?
1. More than 20 years of industry experience, install commissioning more than 150 equipment each year
2. Provide complete proposal for hydro power plant from water to wire
3. Abundant foreign power plant project implementation experience such as France, Japan, USA, South Africa, Sri Lanka, Iran, Southeast Asia
4. Design and manufacture of hydro power generator with voltage 400V,6.3KV . capacity exceed 1000kw with 400V
FAQ
1.You are a trading company or a manufacture?
We are a hydro turbine generator manufacture with over 20 years of experiences, Our factory is in the Sichuan you will take 2 hours driving after you reach Shuangliu Airport, pay a visit to our factory you will know more about us.
2.What Kind of water turbine should I choose?
We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution
3: Can you do the EPC for the hydro power plant?
Yes, We can design, producing and install the equipment, we will dispatch technologist and workers to install the equipment.
