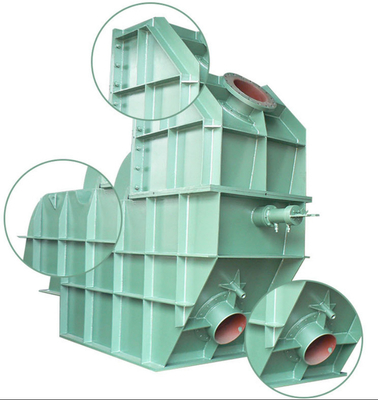

Mini Water Head 250m Hydro Pelton Turbine 60HZ Off Grid 500RPM
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Certification: | ISO9000 |
| Model Number: | CJA-057 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 180 wordking days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+4 months |
|
Detail Information |
|||
| Name: | Pelton Wheel Generator\pelton Turbine Generator | Guide Vane: | Stainless Steel |
|---|---|---|---|
| Nozzle: | 1 | Layout: | Horizontal |
| Efficiency: | 94.20% | Frequency: | 50HZ/60Hz |
| Rotation: | 500 RPM | Water Head: | 2500m |
| High Light: | 250m Hydro Pelton Turbine,Off Grid Hydro Pelton Turbine,60HZ Pelton Wheel Turbine |
||
Product Description
Mini Water Head 250m Hydro Pelton Turbine 60HZ Off Gird 500RPM Pelton Wheel Turbine
1. Nozzle and Flow Regulating Arrangement (Spear)
The nozzles are used to increase the kinetic energy of the water flow which will hit the vanes or blades attached to the runner.
The amount of water hitting the bucket is controlled by the spear. Spears are mounted inside the nozzles to regulate the flow of water that will strike the runner blades. The nozzle containing the spear is pictured below.

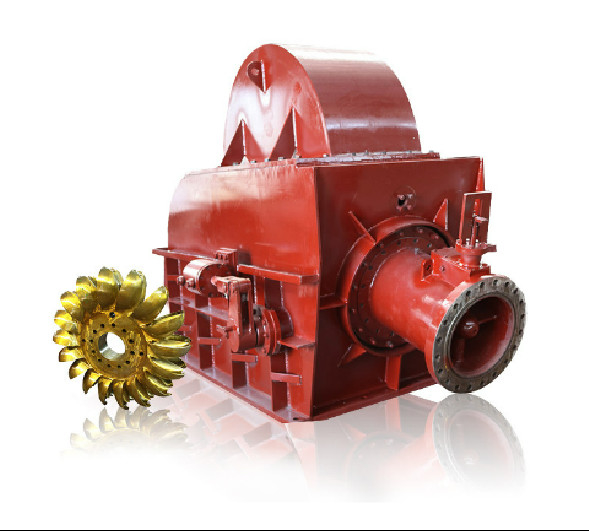

2. Runner and Buckets
The runner is the rotating part of the turbine. It is a disc with a number of evenly spaced buckets fixed around its periphery.
Buckets are made of two hemispherical bowls joined together. Each bucket has a wall between two hemispherical bowls called a diverter.
The splitter splits the jet of water hitting the bucket into two equal parts, and the jet of water is ejected from the outer edge of the bucket.
| CJA237/475 Pelton turbine generator unit | Generator | Unit output (kw) | |||||
| Turbine | |||||||
| Type | Water head(m) | Discharge (m³/s) | Output(kw) | Speed (r/min) | Type | Capacity (kw) | |
| CJA237/475-1*7 | 200 | 0.232 | 383.2 | 750 | SFW320-8/850 | 320 | 358.3 |
| 220 | 0.243 | 440.5 | SFW400-8/850 | 400 | 414.1 | ||
| 240 | 0.254 | 502 | SFW500-8/850 | 500 | 474.4 | ||
| 260 | 0.264 | 572 | 1000 | SFW500-6/850 | 500 | 540.5 | |
| 280 | 0.274 | 643.5 | SFW630-6/990 | 630 | 608.1 | ||
| 300 | 0.284 | 714.6 | SFW630-6/990 | 630 | 675.3 | ||
| CJA237/475-W-90/1*4.5 | 275 | 0.086 | 176.3 | 750 | SFW160-8/650 | 160 | 162.9 |
| 300 | 0.0896 | 200.4 | SFW200-8/740 | 200 | 185.8 | ||
| 325 | 0.0932 | 225.8 | SFW200-8/740 | 200 | 209.3 | ||
| 350 | 0.0969 | 252.8 | SFW250-8/740 | 250 | 235.1 | ||
| 375 | 0.1005 | 279.8 | SFW250-8/740 | 250 | 260.2 | ||
| 400 | 0.103 | 309 | 1000 | SFW250-8/740 | 250 | 287.4 | |
| 425 | 0.1077 | 341.3 | SFW320-6/740 | 320 | 320.1 | ||
| 450 | 0.1098 | 368.4 | SFW320-6/740 | 320 | 345.5 | ||
| 500 | 0.119 | 496 | SFW500-6/850 | 500 | 456 | ||
| 600 | 0.131 | 650 | SFW630-6/990 | 630 | 610 | ||
| 700 | 0.141 | 823 | SFW800-6/990 | 800 | 770 | ||
| CJA237/475-W-90/1*7 | 260 | 0.261 | 572 | 750 | SFW500-8/850 | 500 | 526 |
| 280 | 0.271 | 636 | SFW630-8/990 | 630 | 585 | ||
| 300 | 0.28 | 700 | SFW630-8/990 | 630 | 651 | ||
| 320 | 0.289 | 766 | SFW800-8/990 | 800 | 712 | ||
| 340 | 0.298 | 834 | SFW800-8/990 | 800 | 775 | ||
| 360 | 0.307 | 899 | SFW800-8/990 | 800 | 836 | ||
| 380 | 0.315 | 968 | SFW1000-8/1180 | 1000 | 900 | ||
| 400 | 0.327 | 1093 | 1000 | SFW1000-6/1180 | 1000 | 1021.9 | |
| 420 | 0.335 | 1159 | SFW1000-6/1180 | 1000 | 1189 | ||
| 440 | 0.343 | 1287 | SFW1250-6/1180 | 1250 | 1203.3 | ||
| 460 | 0.351 | 1382 | SFW1250-6/1180 | 1250 | 1292.2 | ||
| 480 | 0.359 | 1476 | SFW1250-6/1180 | 1250 | 1380.1 | ||
| 500 | 0.366 | 1567 | SFW1600-6/1180 | 1600 | 1465.1 | ||
Hongya Power Generating Equipment To Utilities Limited, is closed to many famous scenic spots such as Leshan Giant Buddha. The total company land is about 70000 Square meters, construction part 35000 Square meters. The employee is about 200 workers, which the R&D part is 25%
