500kw Vertical Pelton Water Turbine Generator 0.6m Runner Diameter
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Model Number: | CJA-005 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 180 wordking days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+4 months |
|
Detail Information |
|||
| Features: | Anti Rust\ Anti Erosion\ High Strength | Kwywords: | Micro Hydro Pelton Turbine\hydro Turbine Pelton |
|---|---|---|---|
| Runner: | Stainless Steel | Guide Vane: | Stainless Steel |
| Nozzle: | Single | Layout: | Horizontal |
| Efficiency: | 91.0% | Runner Diameter: | 0.6m |
| Rotation: | 500RPM | Voltage: | 400V |
| High Light: | Pelton Water Turbine Generator,500kw Vertical Pelton Water Turbine,0.6m Pelton Hydro Turbine |
||
Product Description

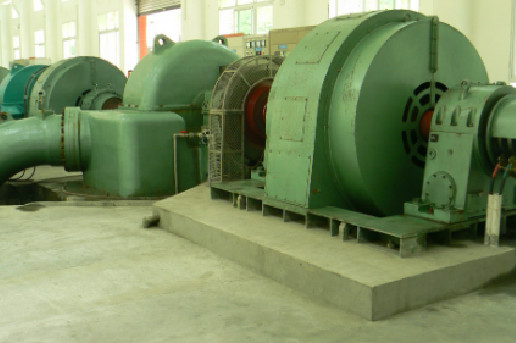

500kw Vertical Pelton Water Turbine Generator 0.6m Runner Diameter
overview
1. Nozzle and Flow Regulating Arrangement (Spear)
The nozzles are used to increase the kinetic energy of the water flow which will hit the vanes or blades attached to the runner.
The amount of water hitting the bucket is controlled by the spear. A spear is mounted inside the nozzle to regulate the flow of water that will hit the runner blades. The nozzle containing the spear is pictured below.
The spear is the conical needle present in the nozzle. It is operated by handwheel or automatically in the axial direction.
When the spear is moved backwards, the velocity of the water flow increases, and when the spear is pushed forward, the velocity of the water flow decreases.
2. Runner and Buckets

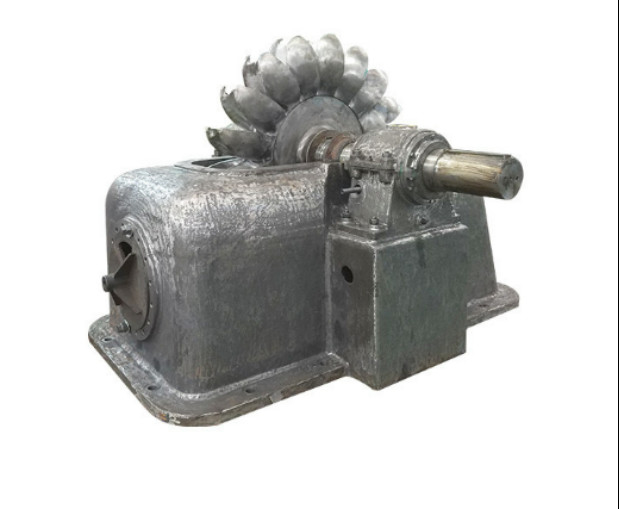

The runner with bucket is shown in the figure below.
The runner is the rotating part of the turbine. It is a disc with a number of evenly spaced buckets fixed around its periphery.
The bucket is made from two hemispherical bowls joined together. Each bucket has a wall between two hemispherical bowls called a diverter.
The splitter splits the jet of water hitting the bucket into two equal parts, and the jet of water is ejected from the outer edge of the bucket.
The bucket is designed in such a way that the flow of water hitting the bucket is deflected 160 to 170 degrees.
Pelton turbine blades are made of cast iron, cast steel, bronze or stainless steel.
3. Casing:
The outer covering of the this turbine is called casing. The Pelton turbine with the casing is shown in the figure given below.
4. Breaking jet
When the water flow is completely shut off by pushing the spear forward, the amount of water hitting the runner becomes zero. But the runner continues to move due to the runner's inertia.
Specification
| Name | 500kw Pelton Hydro Turbine Generator |
| Water Head | 115m |
| Runner Diameters | 0.55m |
| Capacity | 500KW |
| Frequency | 50HZ |
| Generator Voltage | 400V |
| Layout pattern | vertical |
| Material(blades) | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation | Brushless |
| Generator Insulation | F/F |
| Lifespan | 50 years |
Why choose us?
1. More than 20 years of industry experience, install commissioning more than 150 equipment each year
2. Provide complete proposal for hydro power plant from water to wire
3. Abundant foreign power plant project implementation experience such as France, Japan, USA, South Africa, Sri Lanka, Iran, Southeast Asia
4. Design and manufacture of hydro power generator with voltage 400V,6.3KV . capacity exceed 1000kw with 400V
FAQ
1.You are a trading company or a manufacture?
We are a hydro turbine generator manufacture with over 20 years of experiences, Our factory is in the Sichuan you will take 2 hours driving after you reach Shuangliu Airport, pay a visit to our factory you will know more about us.
2.What Kind of water turbine should I choose?
We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution
3: Can you do the EPC for the hydro power plant?
Yes, We can design, producing and install the equipment, we will dispatch technologist and workers to install the equipment.
