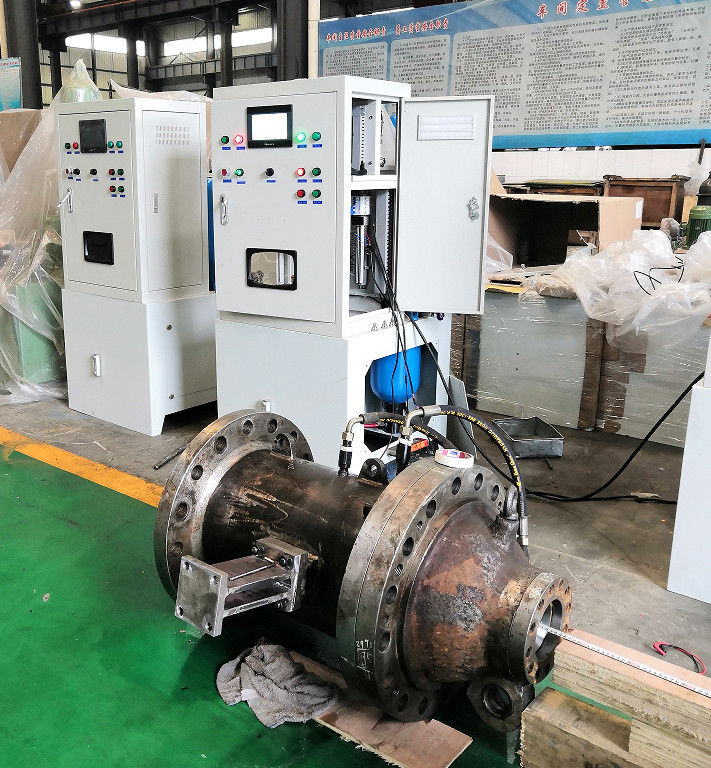

2150kW Pelton Hydro Turbine with Stainless Steel Runner Material and 600r/min Rated Speed
Product Details:
| Place of Origin: | China |
| Brand Name: | Micro Mini Small Water Francis Pelton Turgo Kaplan Hydro Hydraelectric Turbine Permanent Magnet Generator Alternator |
| Certification: | ISO9001 |
| Model Number: | CJA-2426 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 50000-100000 |
| Packaging Details: | standard |
| Delivery Time: | 6 months |
| Payment Terms: | T/T |
| Supply Ability: | 100 units per year |
|
Detail Information |
|||
| Rated Speed: | 600r/min | Water Head Range: | 100m-800m |
|---|---|---|---|
| Design Discharge: | 0.385m³/s | Warranty: | 1 Year |
| Inlet Pressure: | 1-20 Bar | Tubine Material: | Q345-B |
| Capacity: | 2150kW | Runner Matetrial: | Stainless Steel (0Cr13Ni4Mo) |
| Highlight: | 2150kW Pelton Water Wheel,ASTM A473 Pelton Water Wheel,Stainless Steel Pelton Water Wheel |
||
Product Description
2150kW Pelton Water Wheel with Stainless Steel Runner Material ASTM A473 S41500
The Pelton Hydro Turbine is a highly efficient water jet turbine designed to convert kinetic water energy into mechanical energy for electricity generation. This reliable solution is ideal for small-scale hydropower systems, providing sustainable renewable energy.
Key Product Attributes
- Inlet Pressure: Operates with 1-20 Bar range for various water sources
- Runner Material: High-quality stainless steel ASTM A473 S41500 for durability and corrosion resistance
- Turbine Material: Q345-B high-strength low-alloy steel with excellent mechanical properties
- Design Discharge: 0.385m³/s capacity for significant energy harnessing
- Operation: Automatic or manual operation for flexible applications
How It Works
As a reaction hydro turbine, the Pelton operates by reacting to water force rather than redirecting it. The system features a wheel with specially designed cups (runners) attached to its rim. A directed water jet strikes the runners tangentially, causing rotation that transfers energy to a generator-connected shaft.
Benefits
- Efficient: High energy conversion efficiency for cost-effective power generation
- Low Maintenance: Simple design and sturdy construction minimize operational costs
- Environmentally Friendly: Produces clean renewable energy without harmful emissions
- Versatile: Suitable for various settings from small streams to large rivers
- Durable: High-quality materials withstand harsh conditions for long-lasting performance
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Pelton Turbine |
| Rated Speed | 600r/min |
| Operation | Automatic or Manual |
| Runner Type | Single or Multi-Jet |
| Turbine Material | Q345-B |
| Capacity | 2150kW |
| Runner Material | Stainless Steel (0Cr13Ni4Mo) |
| Rated Water Head | 134m |
| Material | Q235B |
| Axial-Flow Turbine | Yes |
| High-Efficiency Turbine | Yes |
Applications
The Pelton Hydro Turbine is suitable for micro hydro power systems in remote and off-grid locations, offering compact versatility for various water flow rates.
- Small-Scale Hydropower Projects: Electricity generation for remote locations
- Water Treatment Plants: Energy generation from excess pressure in distribution systems
- Agricultural Irrigation: Powering irrigation systems with sustainable energy
- Industrial Applications: Machinery power and backup systems
- Off-Grid Communities: Reliable electricity source improving quality of life
Customization Services
We offer customized design services to meet your specific project requirements. Our experienced engineers work closely with clients to design turbines tailored to exact specifications, using top-quality materials including Q235B steel and stainless steel runners (0Cr13Ni4Mo). All products include a 1-year warranty.
Packaging & Shipping
Our turbines undergo thorough inspection before careful disassembly and individual component wrapping. Components are secured in sturdy wooden crates and shipped via air, sea, or land with complete customs documentation. Expert installation support and technical guidance provided.
Frequently Asked Questions
What is the brand name of this product?
The brand name is Pelton Hydro Turbine.
What is the model number of this product?
The model number is CJA-2420.
Where is this product manufactured?
This product is manufactured in China.
What type of turbine is this product?
This is a Pelton turbine.
Does this product come with a generator/alternator?
Yes, it includes a permanent magnet generator/alternator.
