100kW Francis Hydro Turbine 400V-6300V 90%-95% Efficiency

100kW Francis Hydro Turbine 400V-6300V 90%-95% Efficiency
100 Kw Small Mini Francis Turbina High Head Hydro Water Generator Turgo Turbine The inclined-jet turbine is designed for power stations with high head and low flow conditions. Water flows from the reservoir through diversion pipes and nozzles at high velocity onto the runner blades, creating ...
Place of Origin:China
Brand Name:WaWuShan
Certification:ISO
Model Number:SFW-200KW (2000KW)
Minimum Order Quantity:1
Price:200000
Product Custom Attributes
Highlight

100kW Francis hydro turbine

,

Francis hydro turbine 400V-6300V

,

high efficiency Francis hydro turbine

Model NO.:
ZDJJP-184
Output Type:
AC Three Phase
Bearing Support:
Umbrella Type
Bearing Number:
1
Efficiency:
90%-95%
Voltage:
400V-6300V
Frequency:
20Hz, 60Hz
Turbine Type:
Francis, Turgo, Kaplan, Pelton
Power Design:
50kw-20MW
Water Head:
20-300m
Lifespan:
30 Years
Production Capacity:
200 Sets Per Year
Runner Blade Angle:
30°
Guide Vane Angle:
45°
Seat Ring Struts Angle:
35°
Material:
Copper
Product Description
100 Kw Small Mini Francis Turbina High Head Hydro Water Generator
Turgo Turbine
The inclined-jet turbine is designed for power stations with high head and low flow conditions. Water flows from the reservoir through diversion pipes and nozzles at high velocity onto the runner blades, creating rotation that drives the hydrogenerator to produce electrical energy.

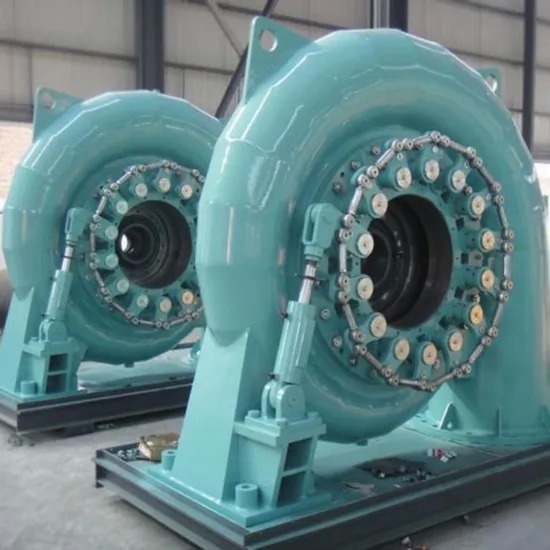

100kW Francis Hydro Turbine 400V-6300V 90%-95% Efficiency 0
The turbine features an inclined axis design where water flows at an angle to the unit axis. Key components include:
  • Inclined volve welded to cast-welded seat ring with 35° strut inclination
  • 45° inclined guide water mechanism with 24 guide blades
  • Double-supported guide vane structure with symmetrical airfoil
  • Stainless steel runner with ten 45° angled blades
  • Rubber bowl seals to prevent water leakage
Key Advantages
  • High Efficiency: Converts water kinetic energy to mechanical energy with excellent return on investment
  • Low Cost: Simple equipment design reduces manufacturing and maintenance expenses
  • Adaptability: Flexible installation options suit various locations and power requirements
Manufacturer Specifications

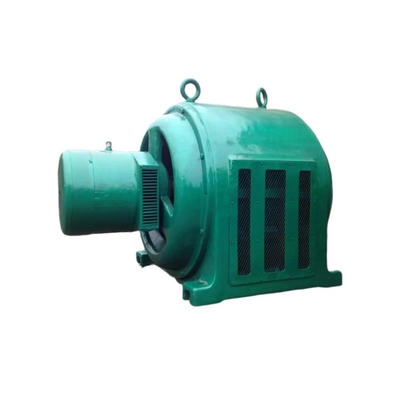

100kW Francis Hydro Turbine 400V-6300V 90%-95% Efficiency 1
Production Capabilities Quality Control Trade Background
6 production lines
40 production machines		 Full raw material traceability
QA/QC inspectors: 4		 Domestic Market: 88%
Southeast Asia: 9%
South Asia: 2%
R&D Capabilities
Customization options: sample processing, graphic processing, on-demand
R&D engineers: 6 (5 graduate, 1 junior college)
New products launched last year: 15
