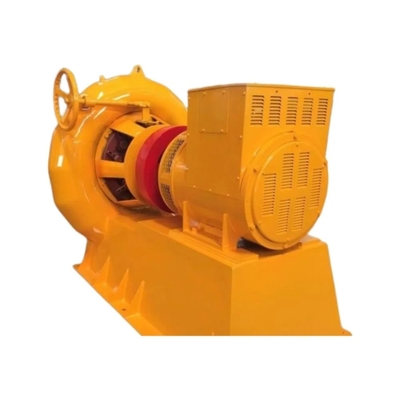

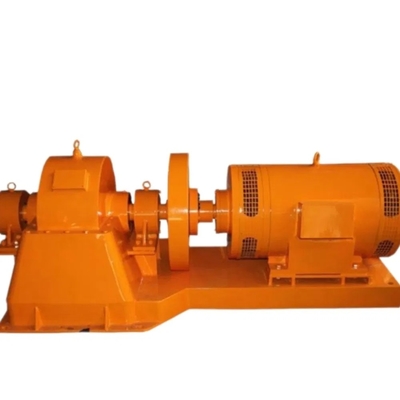

500W Francis Hydro Turbine Generator 400V-6300V 90%-95% Efficiency
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 50000 |
|
Detail Information |
|||
| Model NO.: | ZDJJP-003 | Output Type: | AC Three Phase |
|---|---|---|---|
| Bearing Support: | Umbrella Type | Bearing Number: | 1 |
| Efficiency: | 90%-95% | Voltage: | 400V-6300V |
| Frequency: | 20Hz, 60Hz | Turbine Type: | Francis, Turgo, Kaplan, Pelton |
| Power Design: | 50kw-20MW | Water Head: | 20-300m |
| Lifespan: | 30 Years | Production Capacity: | 200 Sets Per Year |
| Runner Blade Angle: | 30° | Guide Vane Angle: | 45° |
| Seat Ring Struts Angle: | 35° | ||
| Highlight: | 500W Francis Hydro Turbine Generator,Francis Hydro Turbine with 90%-95% efficiency,400V-6300V Francis Hydro Turbine |
||
Product Description
The inclined-jet turbine is primarily designed for power stations with high head and low flow conditions. Water flows from the reservoir through the diversion pipe and exits the nozzle at high velocity onto the runner blades, causing rotation. After passing through the runner, water discharges into the tailwater tank and downstream channel.
This turbine is suitable for small hydropower stations with water heads of 20-200m, converting water energy into electrical power. Available in vertical or horizontal shaft configurations with manual, automatic, or electric speed regulation options.
Key design features include an inclined runner blade axis (45° angle), welded stainless steel wheel chamber, and 24-guide blade mechanism with water-lubricated wooden bearings. The optimized flow path from volute to draft tube enhances efficiency while reducing unit footprint.
- High efficiency: Converts water kinetic energy to mechanical energy with excellent long-term ROI
- Low cost: Simple equipment design reduces manufacturing and maintenance expenses
- Adaptability: Flexible installation options suit diverse geographical and power requirements
