Francis Hydro Turbine Generator 50kw-20MW 400V-6300V
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 50000 |
|
Detail Information |
|||
| Model NO.: | ZDJJP-013 | Output Type: | AC Three Phase |
|---|---|---|---|
| Bearing Support: | Umbrella Type | Bearing Number: | 1 |
| Efficiency: | 90%-95% | Voltage: | 400V-6300V |
| Frequency: | 20Hz, 60Hz | Turbine Type: | Francis, Turgo, Kaplan, Pelton |
| Power Design: | 50kw-20MW | Water Head: | 20-300m |
| Lifespan: | 30 Years | Production Capacity: | 200 Sets Per Year |
| Runner Blade Angle: | 45° | Guide Vane Angle: | 35° |
| Blade Rotation Angle: | 30° | ||
| Highlight: | Francis hydro turbine generator 50kw,Francis hydro turbine 400V-6300V,Francis turbine generator with warranty |
||
Product Description
The inclined-jet turbine is primarily designed for power stations with high head and low flow conditions. Water flows from the reservoir through a diversion pipe and nozzle at high velocity onto the runner blades, causing rotation. After passing through the runner, water discharges into the tailwater tank and downstream channel.
This turbine is ideal for small hydropower stations with water heads between 20-200m, effectively converting hydraulic energy into electrical power. Available in both vertical and horizontal shaft configurations with manual, automatic, or electric speed regulation options.
The turbine features an inclined runner blade axis (45° angle) and welded stainless steel wheel chamber with precision-finished inner surface. Key components include:
- 24 inclined guide blades (45° angle) with double-supported structure
- Wooden guide vane bearings with automatic water lubrication
- Rubber sealing at upper journal to prevent leakage

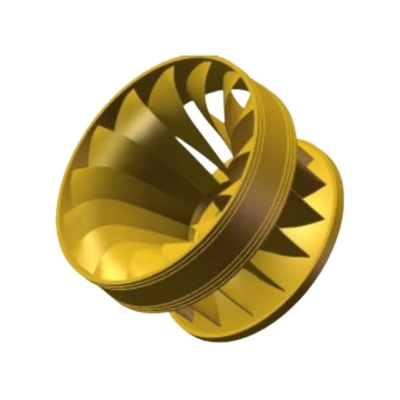

- 10 stainless steel runner blades (30° rotation angle)
- Inclined volute design reduces unit footprint while improving efficiency
- High Efficiency: Optimized energy conversion from water flow to mechanical then electrical energy
- Low Cost: Simple equipment design reduces manufacturing and maintenance expenses
- Adaptability: Flexible installation options accommodate diverse geographical and power requirements
| Production Capabilities | Details |
|---|---|
| Production Lines | 6 |
| Production Machines | 40 |
| Quality Control | Full raw material traceability and product inspection |
| QA/QC Inspectors | 4 |
| Main Markets | Domestic (88%), Southeast Asia (9%), South Asia (2%) |
| R&D Capabilities | 6 engineers (5 graduate, 1 college) 15 new products launched last year |
| Customization | Sample processing, graphic processing, on-demand customization |
